Yamaha F100D - Removing the Propeller Shaft Housing Assembly; Disassembling the Propeller Shaft Assembly; Disassembling the Propeller Shaft Housing

LOWR
Lower unit
6-11
6D93G11

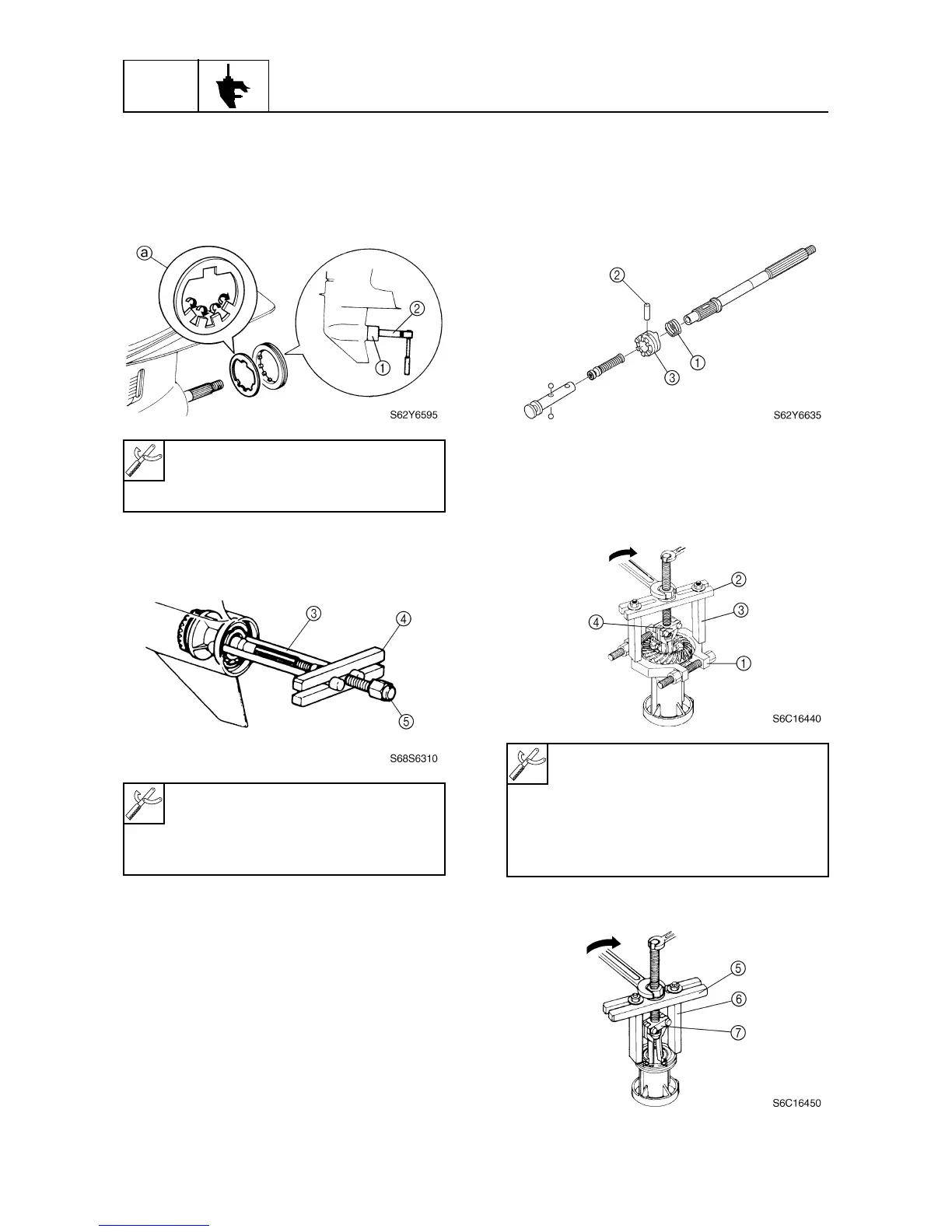

Removing the propeller shaft
housing assembly
1. Straighten the claw washer tabs
a
, and
then remove the ring nut and claw
washer.
2. Pull out the propeller shaft housing
assembly.
3. Remove the propeller shaft assembly.
Disassembling the propeller shaft
assembly
1. Remove the spring
1
, and then remove
the cross pin
2
, dog clutch
3
, slider and
shift plunger.
Disassembling the propeller shaft
housing
1. Remove the reverse gear and thrust
washer.
2. Remove the ball bearing.
Ring nut wrench 3
1
: 90890-06511
Ring nut wrench extension
2
:
90890-06513
Bearing housing puller claw L
3
:
90890-06502
Stopper guide plate
4
: 90890-06501
Center bolt
5
: 90890-06504
Bearing separator
1
: 90890-06534
Stopper guide plate
2
: 90890-06501
Stopper guide stand
3
:
90890-06538
Bearing puller assembly
4
:
90890-06535
