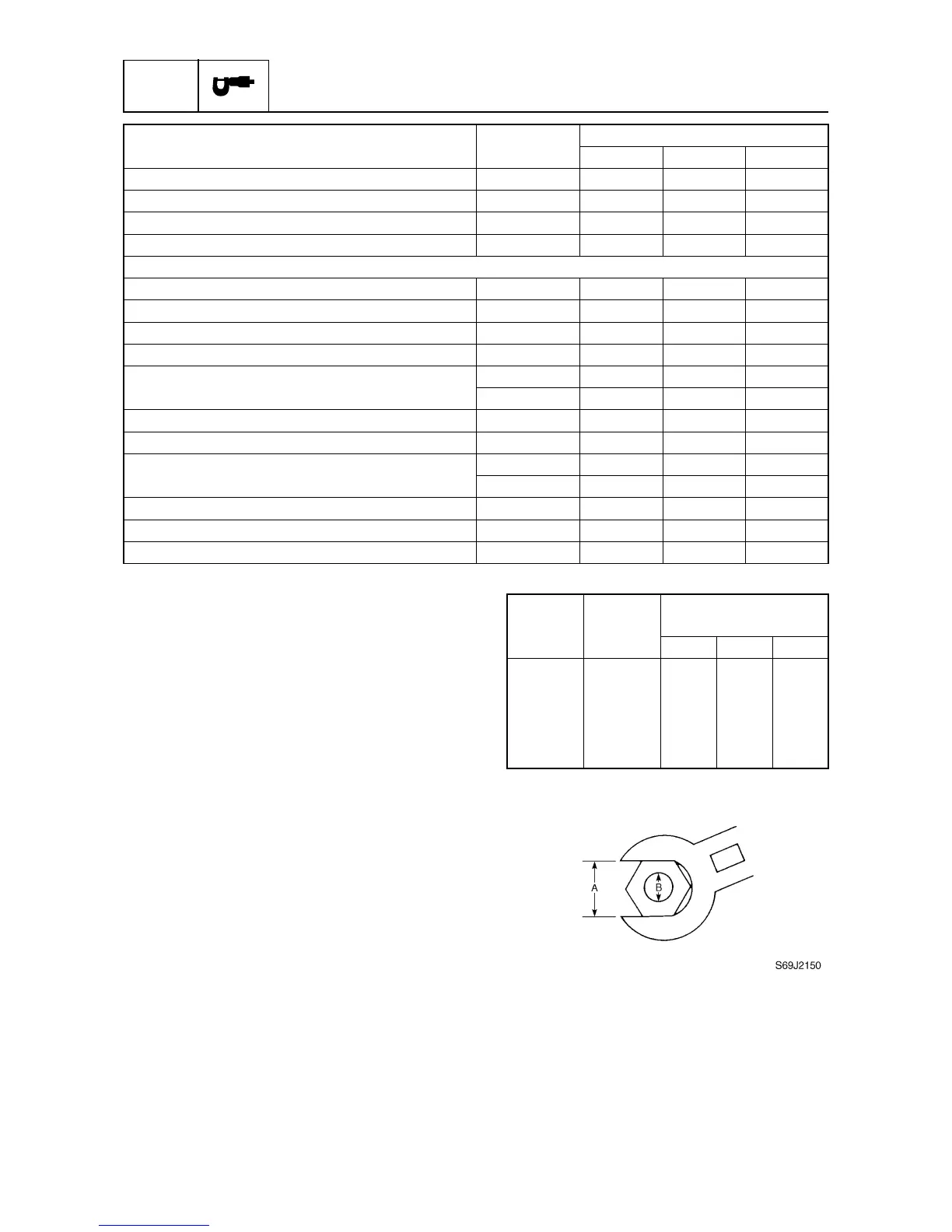

SPEC
Specifications
2-13
6D93G11
General torques
This chart specifies tightening torques for
standard fasteners with a standard ISO
thread pitch. Tightening torque specifications
for special components or assemblies are
provided in applicable sections of this man-
ual. To avoid warpage, tighten multi-fastener
assemblies in a crisscross fashion and pro-
gressive stages until the specified torque is
reached. Unless otherwise specified, torque
specifications require clean, dry threads.
Components should be at room temperature.
Exhaust manifold bolt M6 11 1.1 8.1
Steering arm stud bolt M10 20 2.0 14.8
Self-locking nut — 15 1.5 11.1
Trim sensor cam screw M6 2 0.2 1.5
Power trim and tilt unit
Reservoir cap — 70.75.2
PTT motor bolt M6 4 0.4 3.0
Gear pump bolt M5 5 0.5 3.7
Gear pump housing bolt M5 5 0.5 3.7
Relief valve cap bolt
M4 4 0.4 3.0
M5 5 0.5 3.7
Lever bolt M3 2 0.2 1.5
Manual valve — 20.21.5
Gear pump bracket bolt
M3 2 0.2 1.5
M5 4 0.4 3.0
Trim cylinder end screw — 90 9.0 66.4
Tilt cylinder end screw — 80 8.0 59.0
Tilt piston bolt M12 85 8.5 62.7
Part to be tightened Thread size
Tightening torques
N·mkgf·mft·lb
Nut (A) Bolt (B)
General torque
specifications
N·mkgf·mft·lb
8 mm M5 5 0.5 3.6
10 mm M6 8 0.8 5.8
12 mm M8 18 1.8 13
14 mm M10 36 3.6 25
17 mm M12 43 4.3 31
