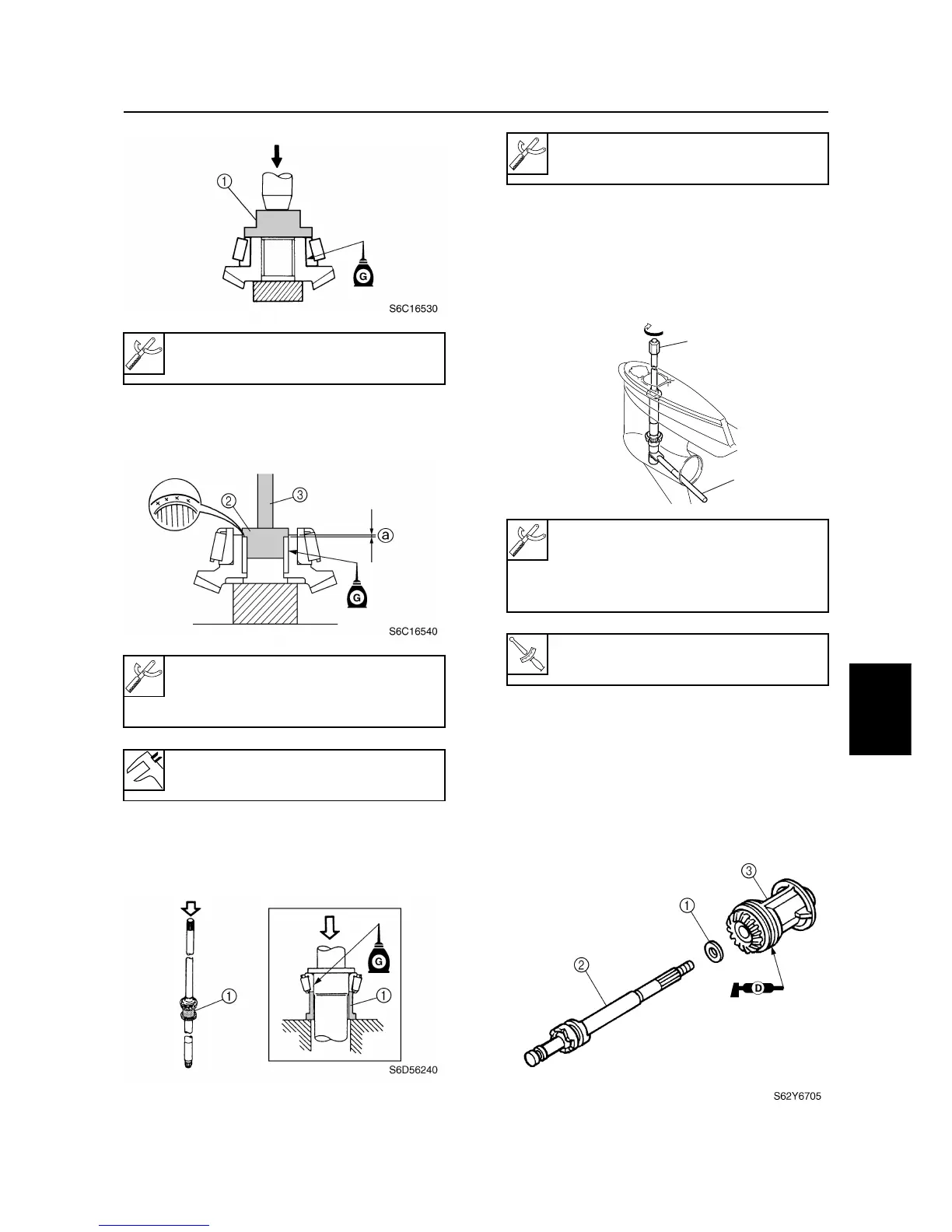

2. Install a new needle bearing into the for-
ward gear to the specified depth.
Assembling the drive shaft
1. Install a new drive shaft bearing into the
drive shaft using a press.
Installing the drive shaft
1. Install the forward gear, then the drive
shaft assembly, pinion, and pinion nut,
and then tighten the nut to the specified
torque.
Installing the propeller shaft housing
1. Install the washer
1
and propeller shaft
assembly
2
into the propeller shaft
housing assembly
3
.
2. Apply grease to a new O-ring.
Needle bearing attachment
1
:
90890-06607
Needle bearing attachment
2
:
90890-06614
Driver rod L3
3
: 90890-06652
Depth
a
:
1.20
±
0.25 mm (0.05
±
0.01 in)
Bearing inner race attachment
1
:
90890-06643
Drive shaft holder 5
1
: 90890-06519
Pinion nut holder
2
:
New: 90890-06715
Current: 90890-06505
T
R
.
.
Pinion nut:
93 N·m (9.3 kgf·m, 68.6 ft·lb)
S68S6400
1
2
Drive shaft and lower case
