Yamaha F100D - Clamp brackets and swivel bracket

BRKT
Bracket unit
7-19
6D93G11

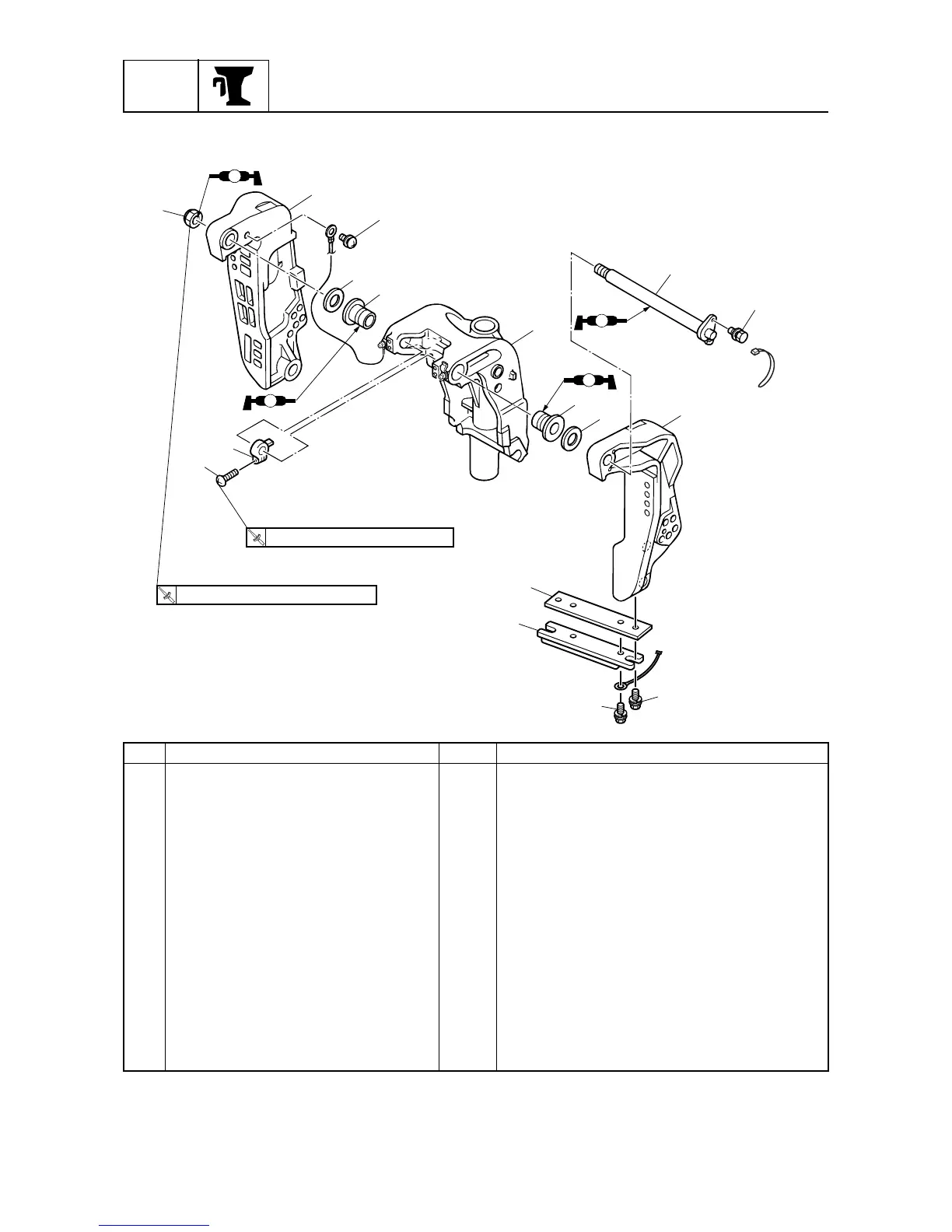

Clamp brackets and swivel bracket
7
No. Part name Q’ty Remarks
1 Swivel bracket 1
2 Clamp bracket 1
3 Clamp bracket 1
4 Self-locking nut 1
5Screw 1 ø6
×
12 mm
6 Washer 2
7 Bushing 2
8 Trim sensor cam 1
9Screw 1 ø6
×
25 mm
10 Plate 1
11 Anode 1
12 Bolt 1 M6
×
14 mm
13 Bolt 2 M6
×
16 mm
14 Through tube 1
15 Bolt 1 M8
×
20 mm
S6D87490
4
15
14
8
9
6
6
7
7
5
2
3
1
10
11
12
13
T
R
.
.
15 N
·
m (1.5 kgf
·
m, 11.1 ft
·
Ib)
T
R
.
.
2 N
·
m (0.2 kgf
·
m, 1.5 ft
·
Ib)
AA
AA
AA
AA
