Yamaha F100D - Page 160

BRKT

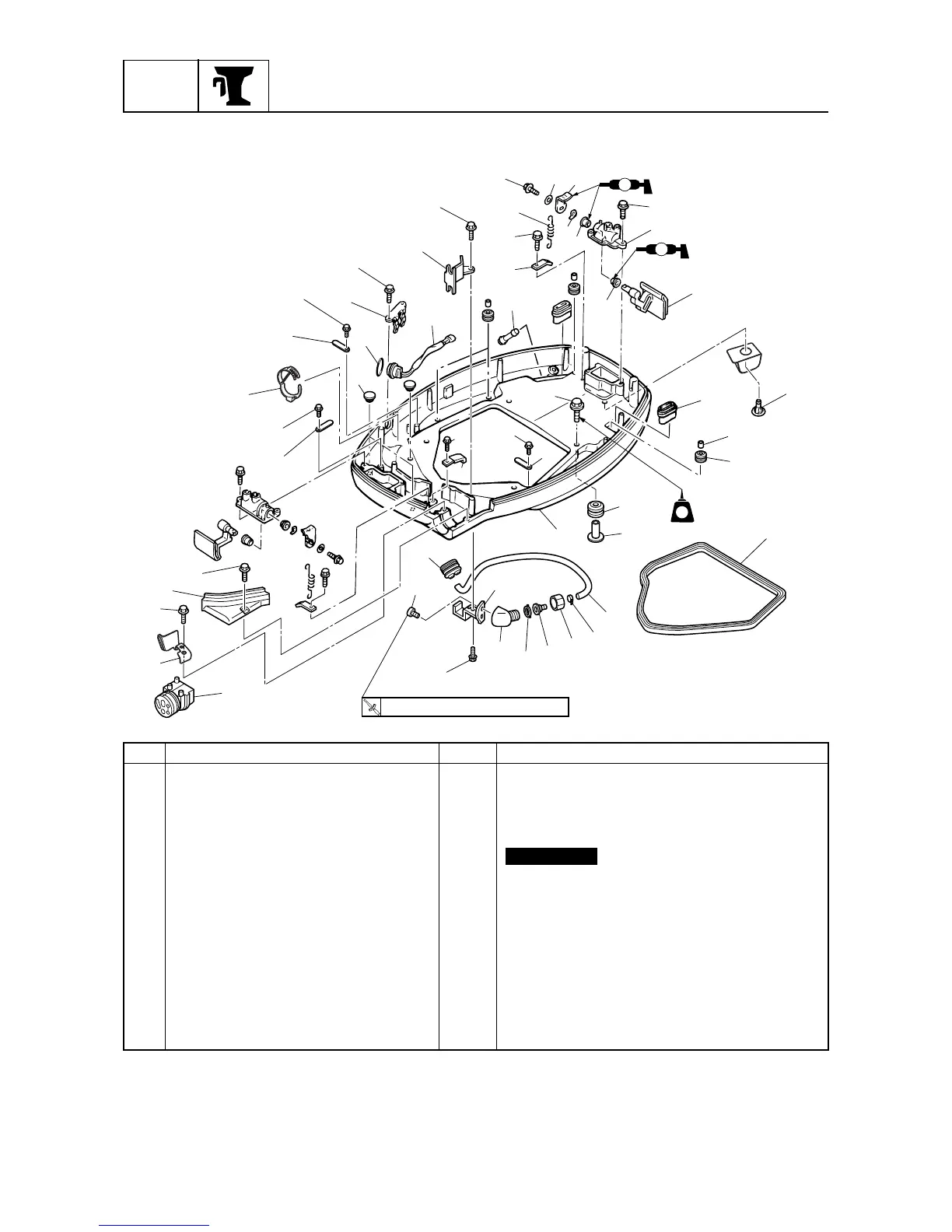

Bracket unit
7-5
6D93G11
7
No. Part name Q’ty Remarks
35 Adapter 1
36 Gasket 1
37 Joint 1
38 Joint 1
39 Plastic tie 1
Not reusable
40 Hose 1
41 Bolt 1 M6
×
20 mm
42 Bolt 2 M6
×
25 mm
43 Retaining plate 1
44 Bolt 1 M6
×
20 mm
45 Plate 1
46 Grommet 1
47 Rubber seal 1
48 Clamp 1
