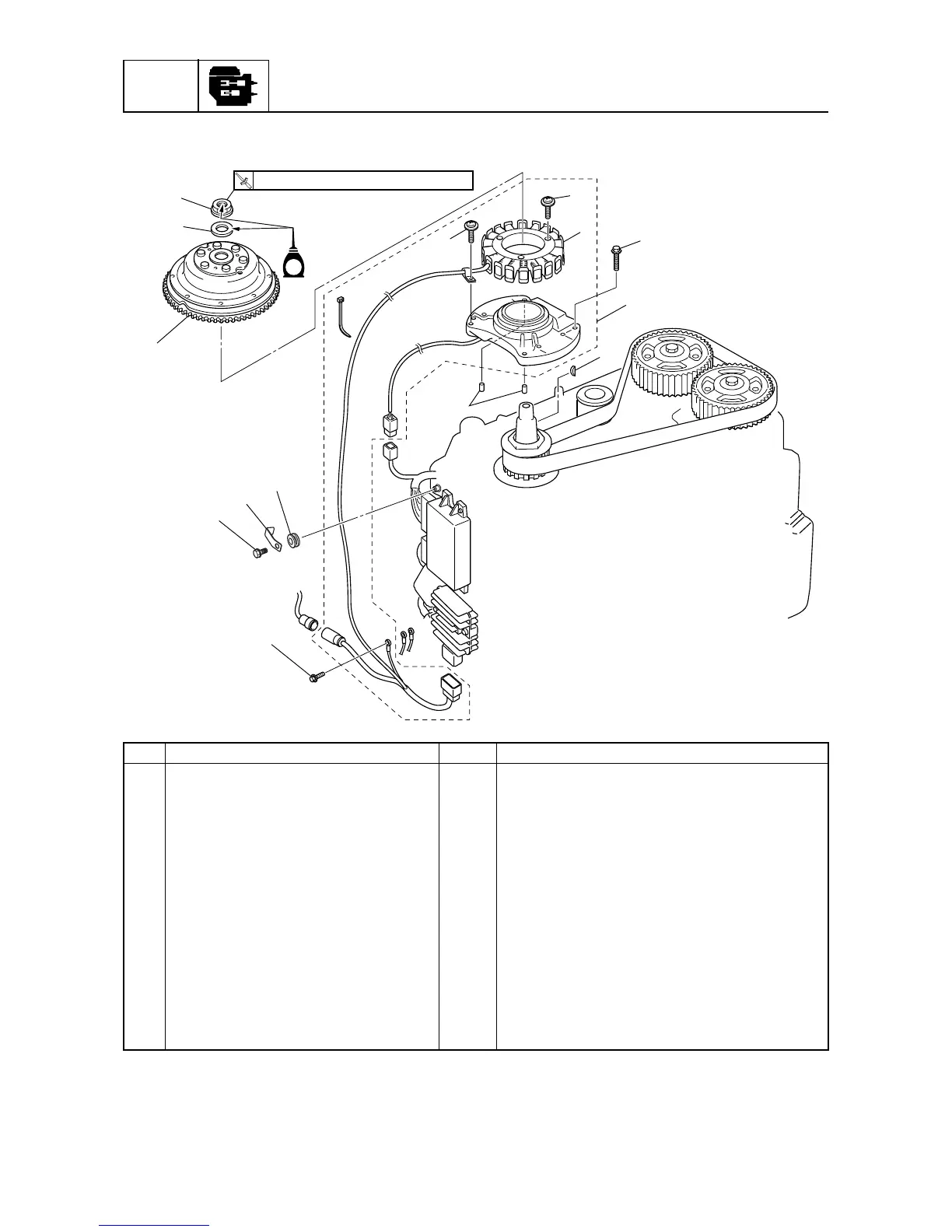

Yamaha F100D - Page 74

POWR
Power unit
5-5
6D93G11
5
No. Part name Q’ty Remarks
1Nut 1
2 Washer 1
3 Flywheel magnet 1
4Screw 1 ø4
×
10 mm
5Screw 3 ø6
×
30 mm
6 Stator coil 1
7Bolt 4 M6
×
30 mm
8 Stator assembly 1
9 Collar 2
10 Bolt 1 M6
×
15 mm
11 Woodruff key 1
12 Bolt 1 M6
×
15 mm
13 Holder 1
14 Grommet 1
S6D85020
2
3
1
E
T
R
.
.
215 N
·
m (21.5 kgf
·
m, 158.6 ft
·
lb)
4
5
6
7
8
9
10
11
12
13
