5-14
5
Ó Fit the protrusion on the knock sensor
coupler into the hole in the engine ECM
bracket. Make sure that the protrusions on
the sides of the coupler are positioned
under the stoppers on the engine ECM
bracket.
Ô Route the wiring harness to the inside of
the joint coupler bracket.
Õ Make sure that the slot in the joint coupler
bracket fits over the rib on the engine
ECM bracket.
× Fit the protrusion on the plastic tie into the
hole in the engine ECM bracket.
ËÈ
Í
É
Î
Ê
Ó
ÏÑÒ
Ô
Õ
×
Ì

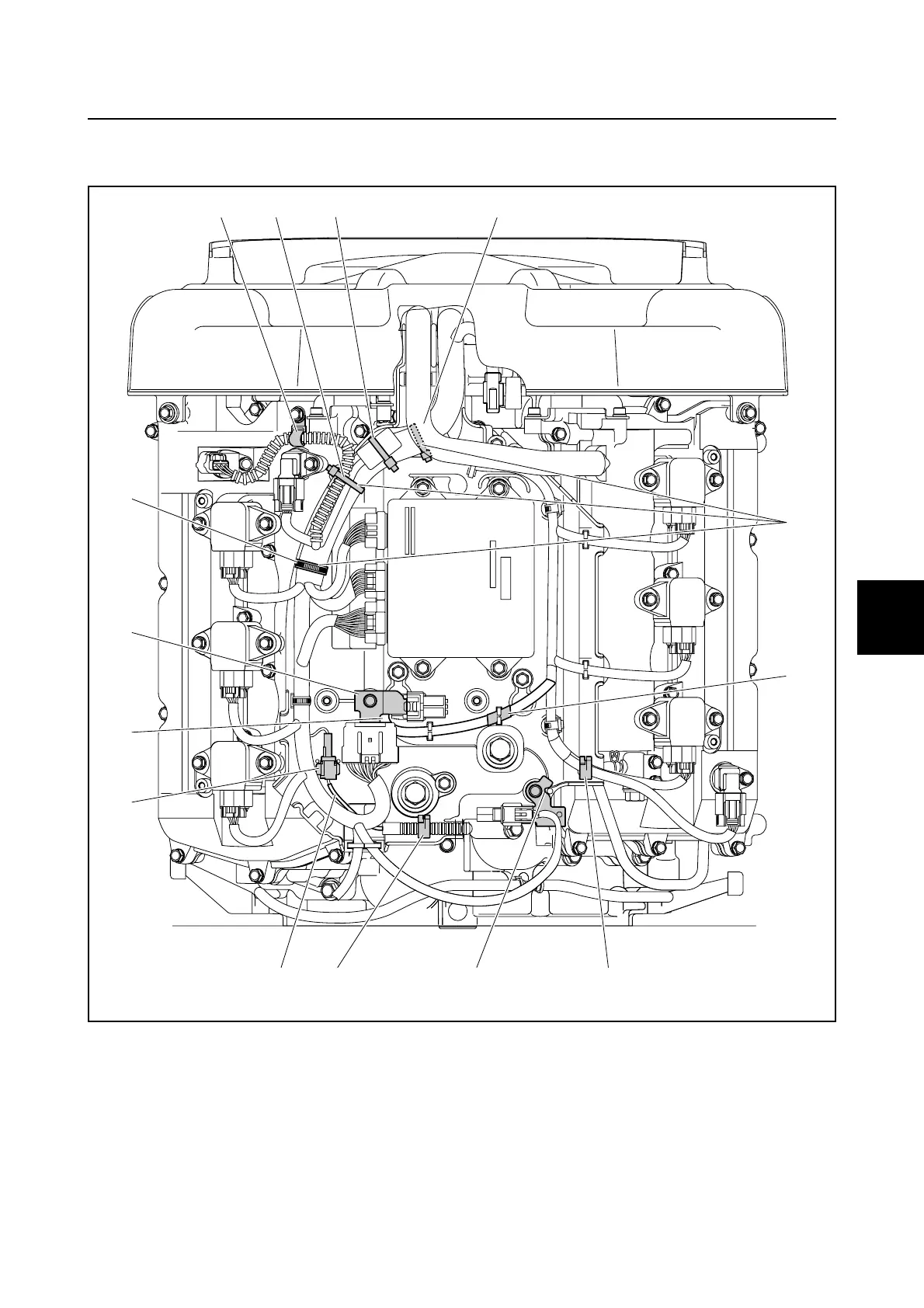

Wiring harness routing
