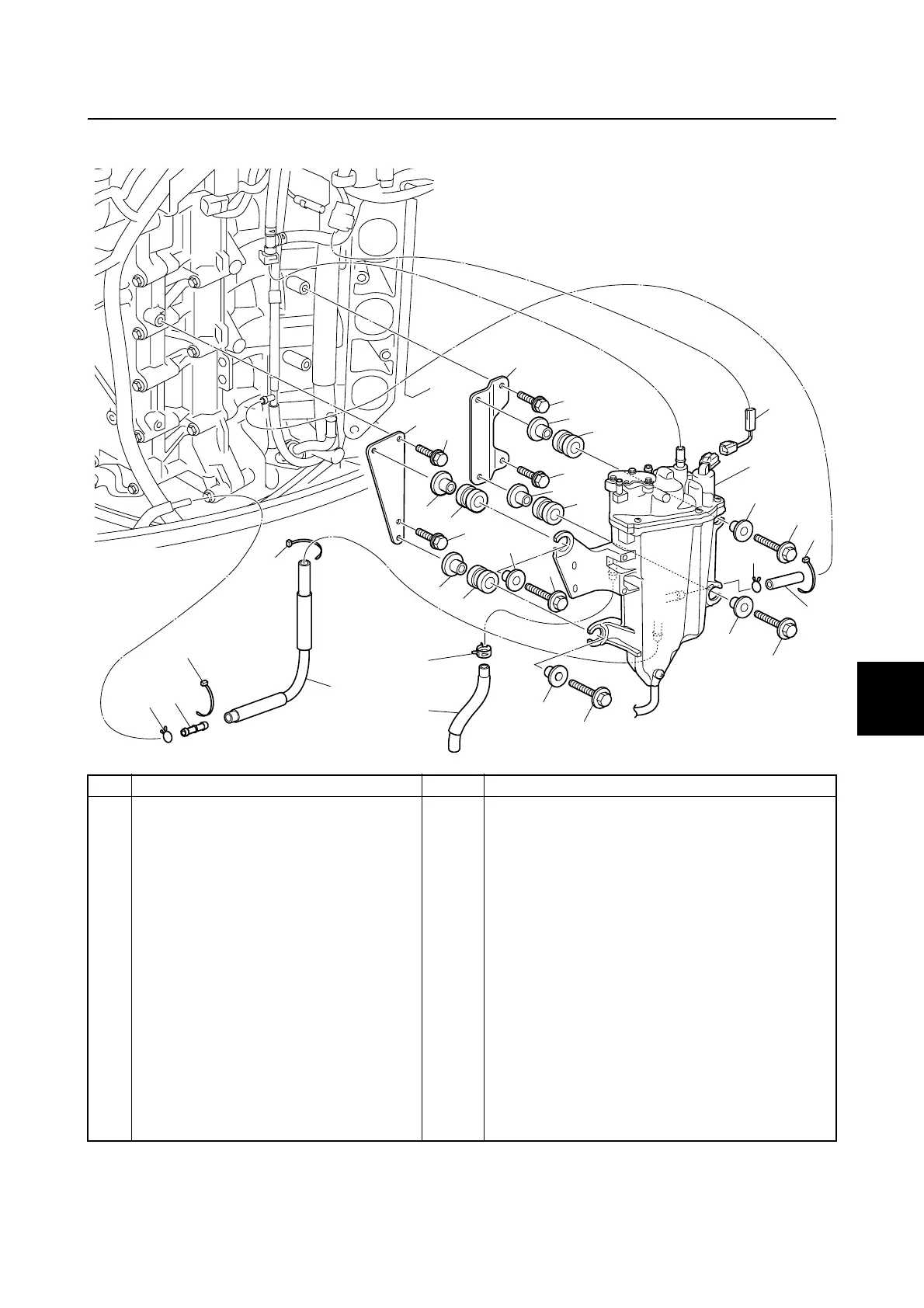

Vapor separator
No. Part name Q’ty Remarks
1Hose 1
2 Clamp 1
3Bolt 4 M6 × 16 mm
4Bolt 4 M6 × 35 mm
5 Collar 8
6 Vapor separator assembly 1
7Grommet 4
8Bracket 1
9Bracket 1
10 Vapor separator wiring harness
extension
1
11 Plastic tie 3
12 Hose 1
13 Clamp 2
14 Hose 1
15 Joint 1
1
2
3
5
7
5
11
8
9
3
7
5
4
5
7
3
5
7
10
11
5
6
4
4
5
4
5
12
3
13
14
11
15
13
Low-pressure fuel pump / Vapor separator
