Yamaha F200B - Page 486

BRKT
Bracket unit
9-11
0

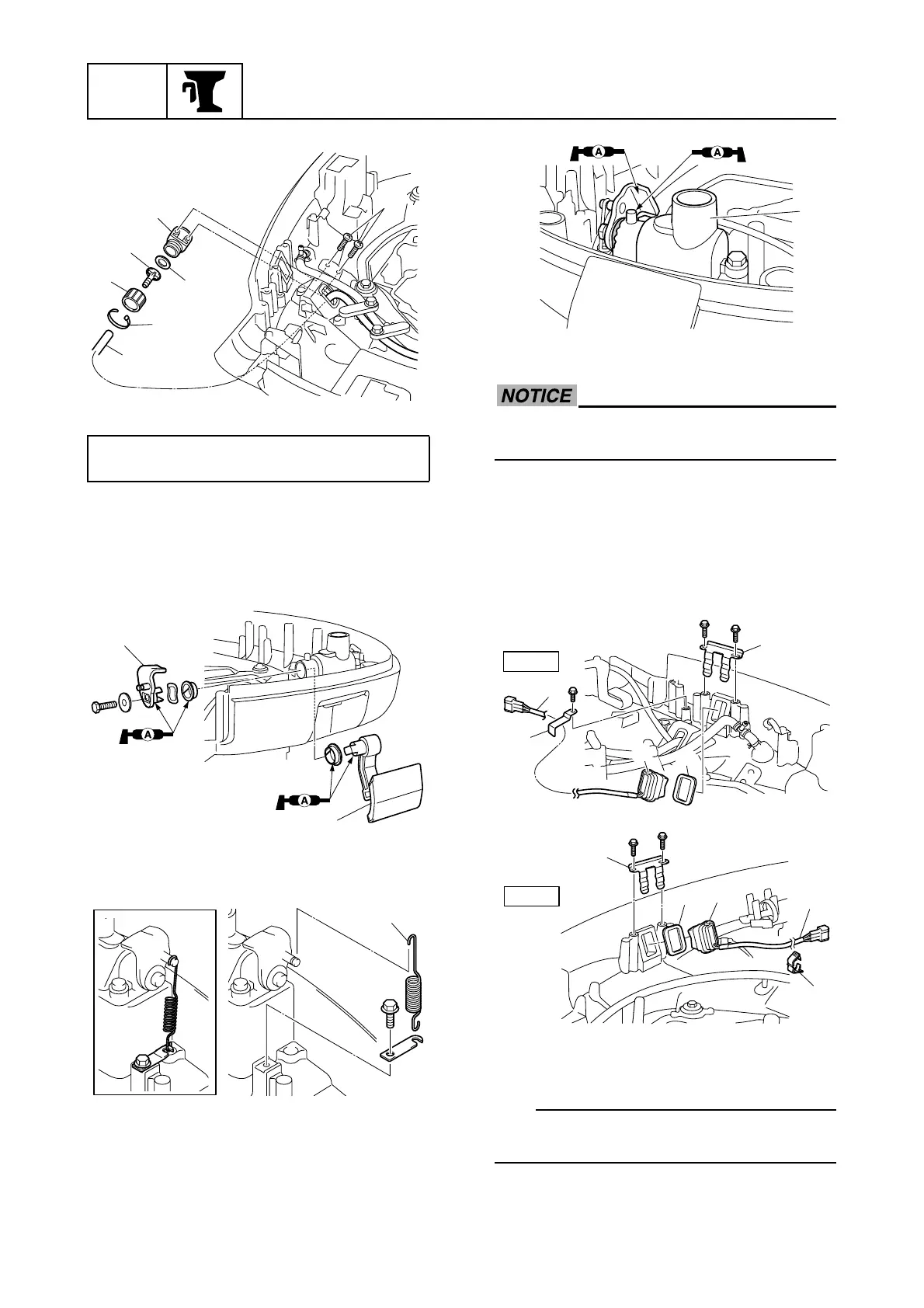

Installing the cowling lock lever
1. Install the cowling lock lever 1 and lever
2.
2. Install the spring 3.
3. Inject grease into the housing 4 until
grease comes out from the housing.
Installing the PTT switch
Do not reuse a gasket, always replace it
with a new one.
1. Install a new gasket 1, the PTT switch
2, and the holder 3.
2. Fasten the PTT switch lead a using the
holder 4 (regular rotation model) or
holder 5 (counter rotation model).
È Regular rotation model
É Counter rotation model
TIP:
To fasten the PTT switch lead, see “Wiring
harness routing” (5-6).
Flushing hose adapter screw C:
5 N·m (0.5 kgf·m, 3.7 ft·lb)
B
1
D
E
G
F
C
2
1
3
4
3
4
1
2
STBD
a
È
3
2
5
a
1
PORT
É
