9-12
9

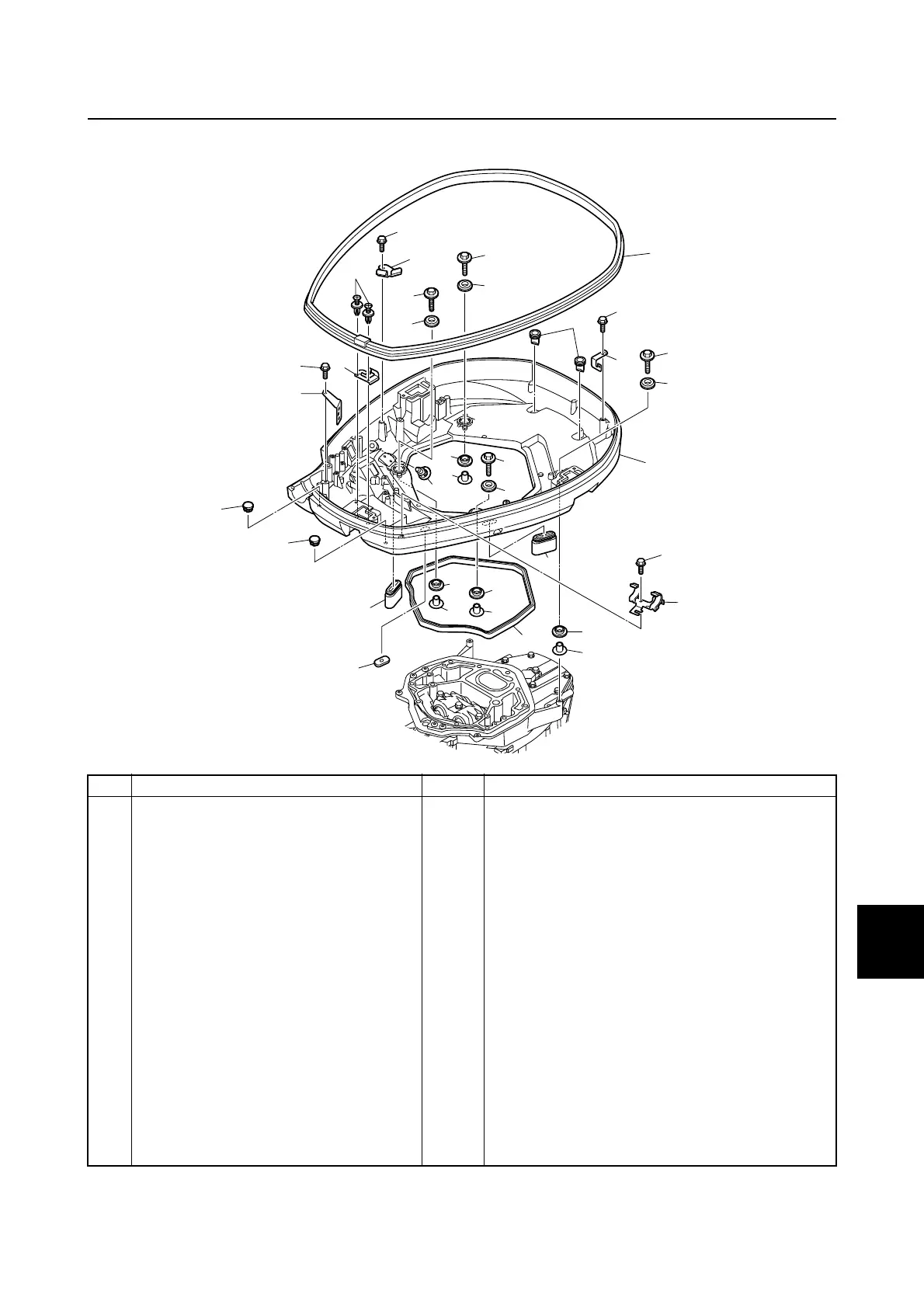

Bottom cowling
No. Part name Q’ty Remarks
1Bracket 1
2Bolt 1 M6 × 30 mm
3Bracket 1
4Bolt 3 M6 × 20 mm
5Bracket 1
6Bracket 1
7Bracket 1
8 Rivet 2
9 Water outlet 1
10 Bolt 4 M8 × 35 mm
11 Grommet 8
12 Collar 4
13 Rubber seal 1
14 Grommet 2
15 Grommet 2
16 Rubber seal 1
17 Grommet 1
15
16
15
1
4
3
8
9
13
17
19
14
11
10
11
12
11
10
10
11
4
5
10
11
2
7
18
18
11
12
11
12
11
12
6
4
PTT switch and cowling lock lever / Bottom cowling
