Yamaha F200B - Page 511

9-36
9

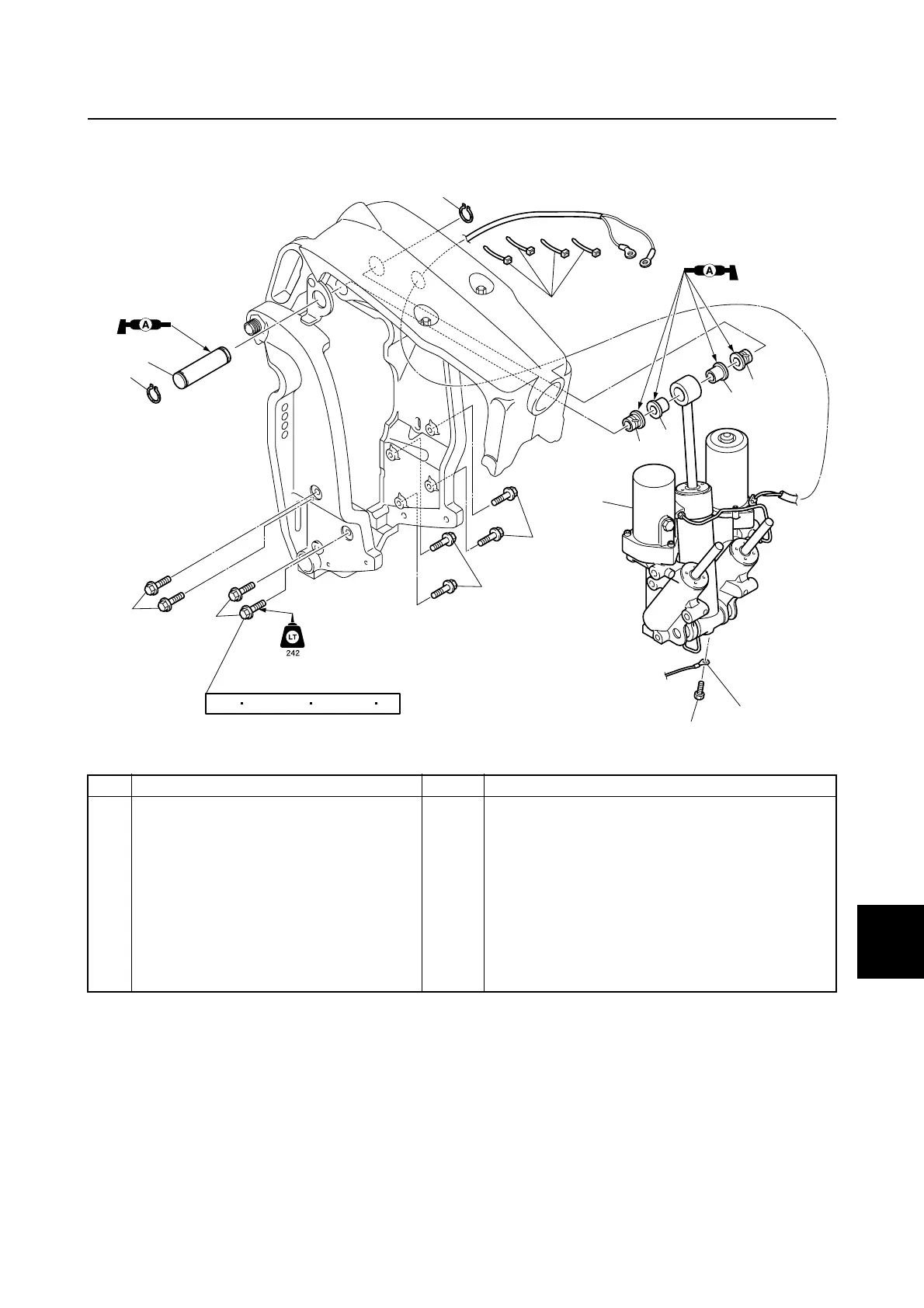

PTT unit
No. Part name Q’ty Remarks
1Shaft 1
2 Circlip 2
3 Plastic tie 4
4 Bushing 2
5 Bushing 2
6 PTT unit 1
7 Ground lead 1
8Bolt 1 M6 × 10 mm
9 Bolt 8 M10 × 45 mm
42 N m (4.2 kgf m, 31.0 ft lb)
6
4
5
3
2
1
8
9
7
2
9
9
9
5
4
Clamp bracket and swivel bracket / PTT unit
