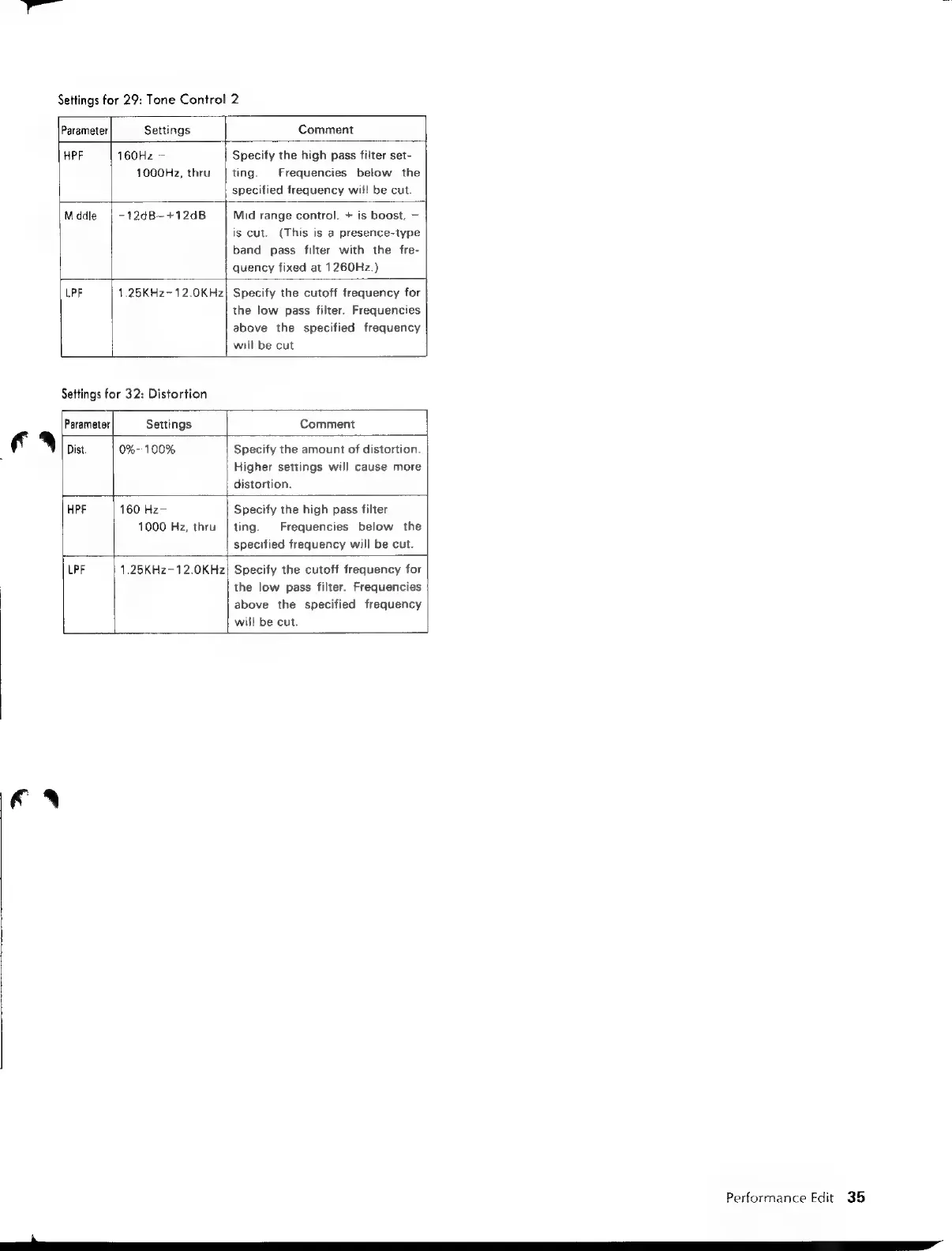

Settings for 29: Tone Control 2
Parameter Settings Comment
HPF 160Hz ~- Specify the high pass filter set-
1000Hz, thru ting. Frequencies below the
specified frequency wil! be cut.
Middle -12dB—+12dB Mid range control. + is boost, —
is cut. (This is a presence-type
band pass filter with the fre-
quency fixed at 1260Hz.)
LPF 1.25KHz-12.0KHz} Specify the cutoff frequency for
the low pass filter. Frequencies
above the specified frequency
will be cut.
Settings for 32: Distortion
Parameter Settings Comment
¢ h) Dist. 0%--100% Specify the amount of distortion.
Higher settings will cause more
distortion.
HPF 160 Hz- Specify the high pass filter
1000 Hz, thru | ting. Frequencies below the
specified frequency will be cut.
LPF 1.25KHz-12.0KHz} Specify the cutoff frequency for
| the low pass filter. Frequencies
above the specified frequency
will be cut.
Ee a
CA
eee ee
Performance Edit 35
