CRANKSHAFT AND CONNECTING RODS
ENG
EAS00401
CHECKING THE BEARINGS AND OIL
SEALS
1. Check:
 bearings
Clean and lubricate the bearings, then rotate
the inner race with your finger.
Rough movement  Replace.
2. Check:
 oil seals
Damage/wear  Replace.
EAS00207

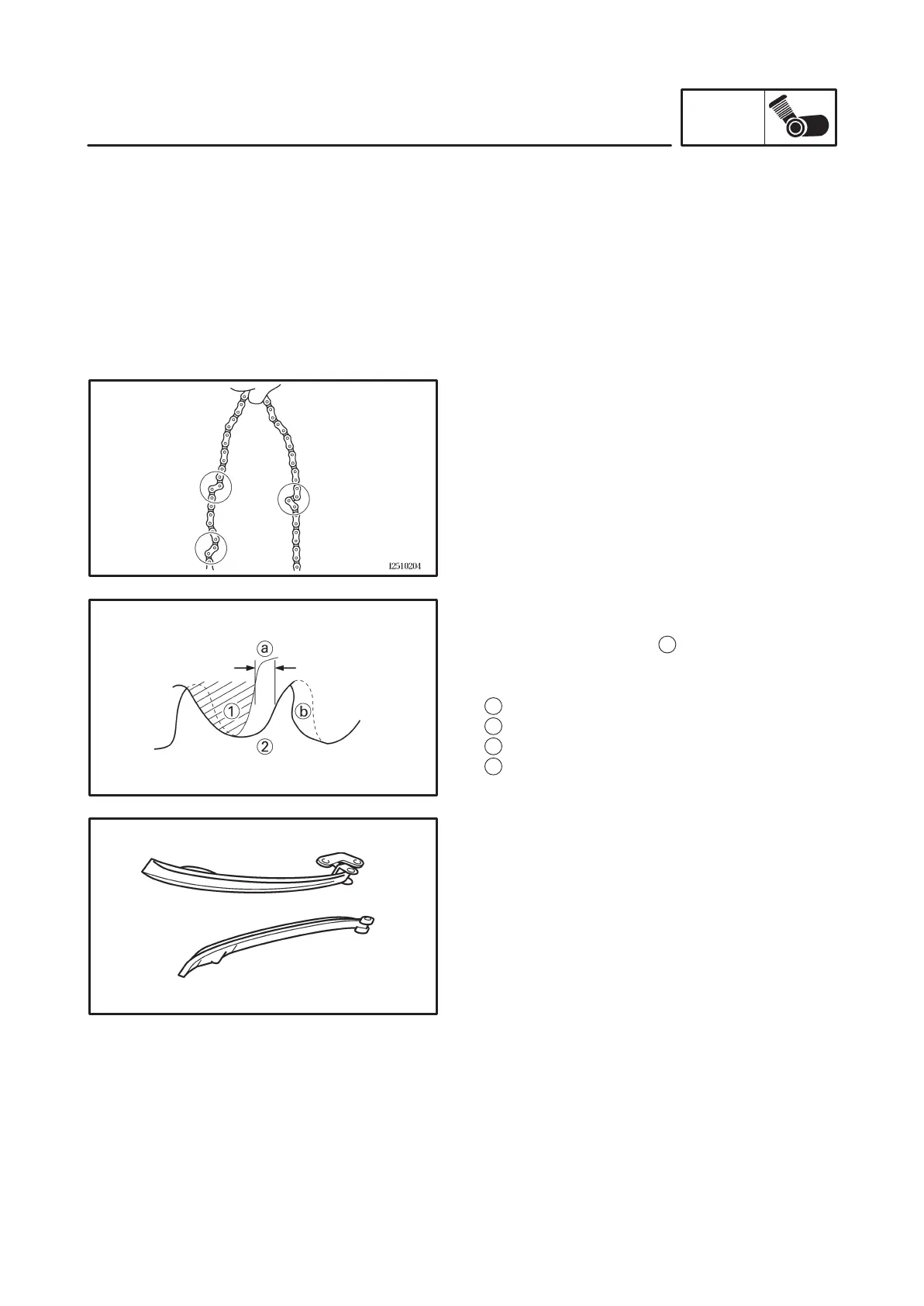

CHECKING THE TIMING CHAIN, CAMSHAFT
SPROCKET AND TIMING CHAIN GUIDES
1. Check:
 timing chain
Damage/stiffness  Replace the timing
chain and camshaft sprocket as a set.
2. Check:
 camshaft sprocket
More than 1/4 tooth
a
wear  Replace the
camshaft sprocket and the timing chain as a
set.
a
1/4 tooth
b
Correct
1
Timing chain roller
2
Camshaft sprocket
3. Check:
 timing chain guide (exhaust side)
 timing chain guide (intake side)
Damage/wear  Replace the defective
part(-s).
