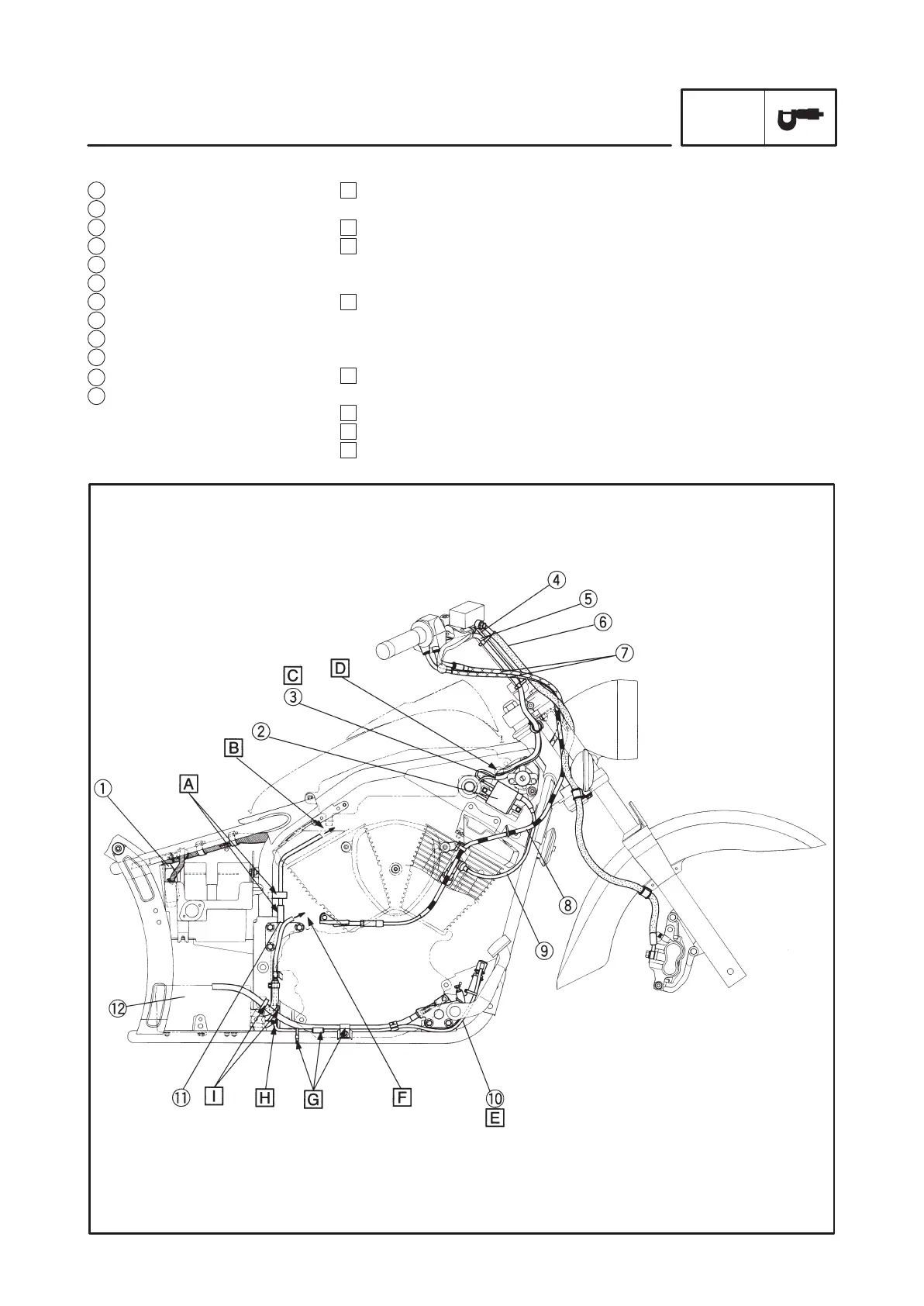

CABLE ROUTING
SPEC
1 Rectifier/regulator
2 Ignition coil #1
3 Ignition coil lead
4 Front brake light switch lead
5 Right handlebar switch lead
6 Brake hose
7 Throttle cables
8 Clutch cable
9 High tension code #1
10 Rear brake switch lead
11 Vacuum hose
12 Air induction system assembly
A Clamp the vacuum hose.
Avoid the bold section.
B To the carburetor joint.
C Connect the ignition coil lead.
(orange lead: upper)
(red lead: lower)
D Route the right handlebar
switches lead and front brake
switch lead through the hole of
frame from inside to out side.
E Clamp the rear brake switch
lead.
F To the cylinder head (#2).
G Clamp.
H To the engine.
