3-30
ADJUSTING THE SHIFT PEDAL/
ADJUSTING THE DRIVE CHAIN SLACK
CHK
ADJ
NOTE:
b
c
NOTE:
CAUTION:
WARNING
NOTE:
EAS00137

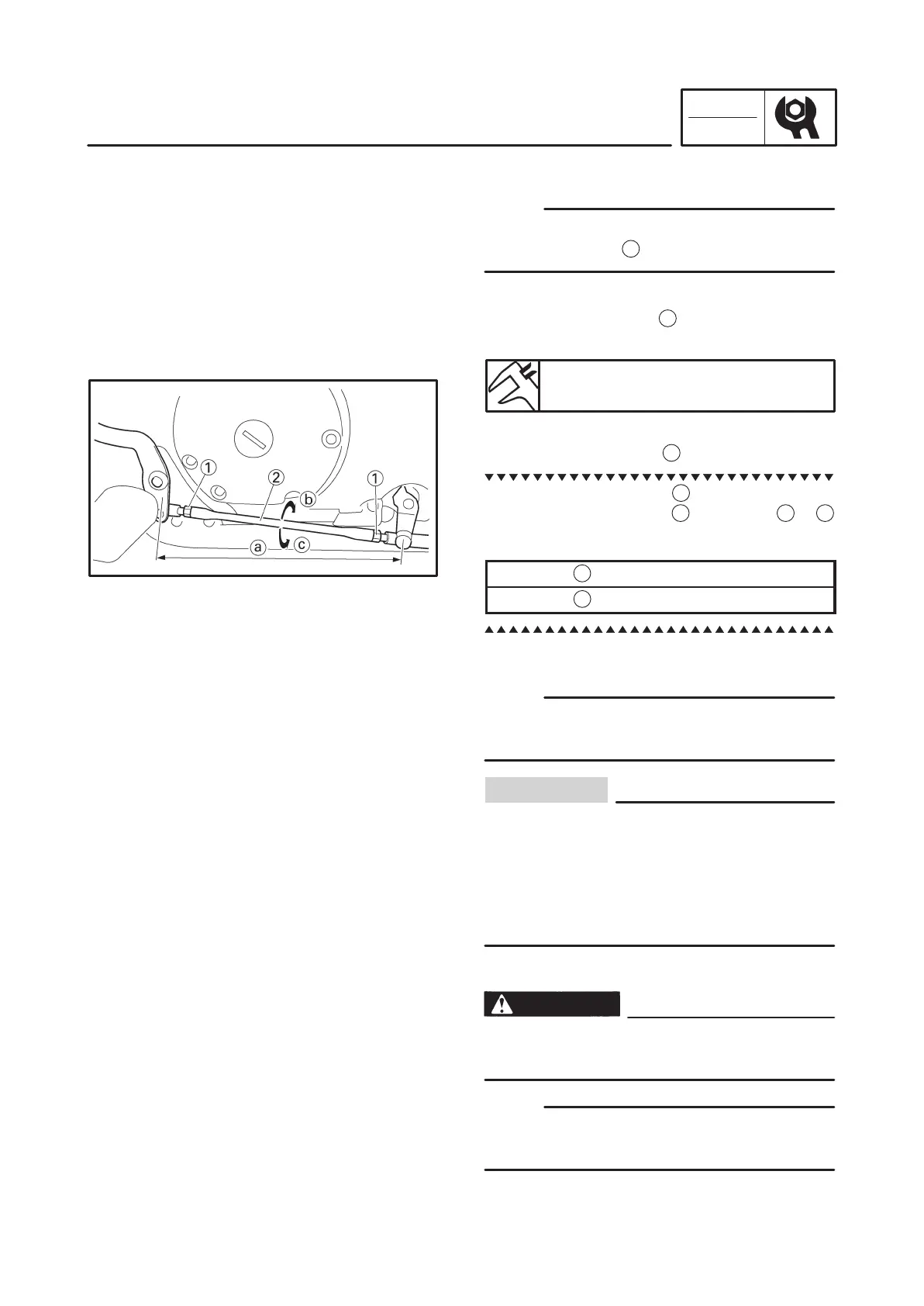

ADJUSTING THE SHIFT PEDAL
The shift pedal position is determined by the ad-
justing bolt length
a
.
1. Measure:
adjusting the length
a
Incorrect Adjust.
Adjusting bolt length
276.8 mm
2. Adjust:
adjusting bolt length
a
a. Loosen both locknuts
1
b. Turn the adjusting bolt
2
in direction
b
or
c
to obtain the correct shift pedal position.
Direction shift pedal is raised.
Direction shift pedal is lowered.
EAS00141
ADJUSTING THE DRIVE CHAIN SLACK
The drive chain slack must be checked at the
tightest point on the chain.
A drive chain that is too tight will overload
the engine and other vital parts, and one that
is too loose can skip and damage the swin-
garm or cause an accident. Therefore, keep
the drive chain slack within the specified
limits.
1. Stand the motorcycle on a level surface.
Securely support the motorcycle so that
there is no danger of it falling over.
Place the motorcycle on a suitable stand so that
the rear wheel is elevated.
To Next Page
