5-68
TRANSMISSION
ENG
NOTE:
NOTE:
EAS00426

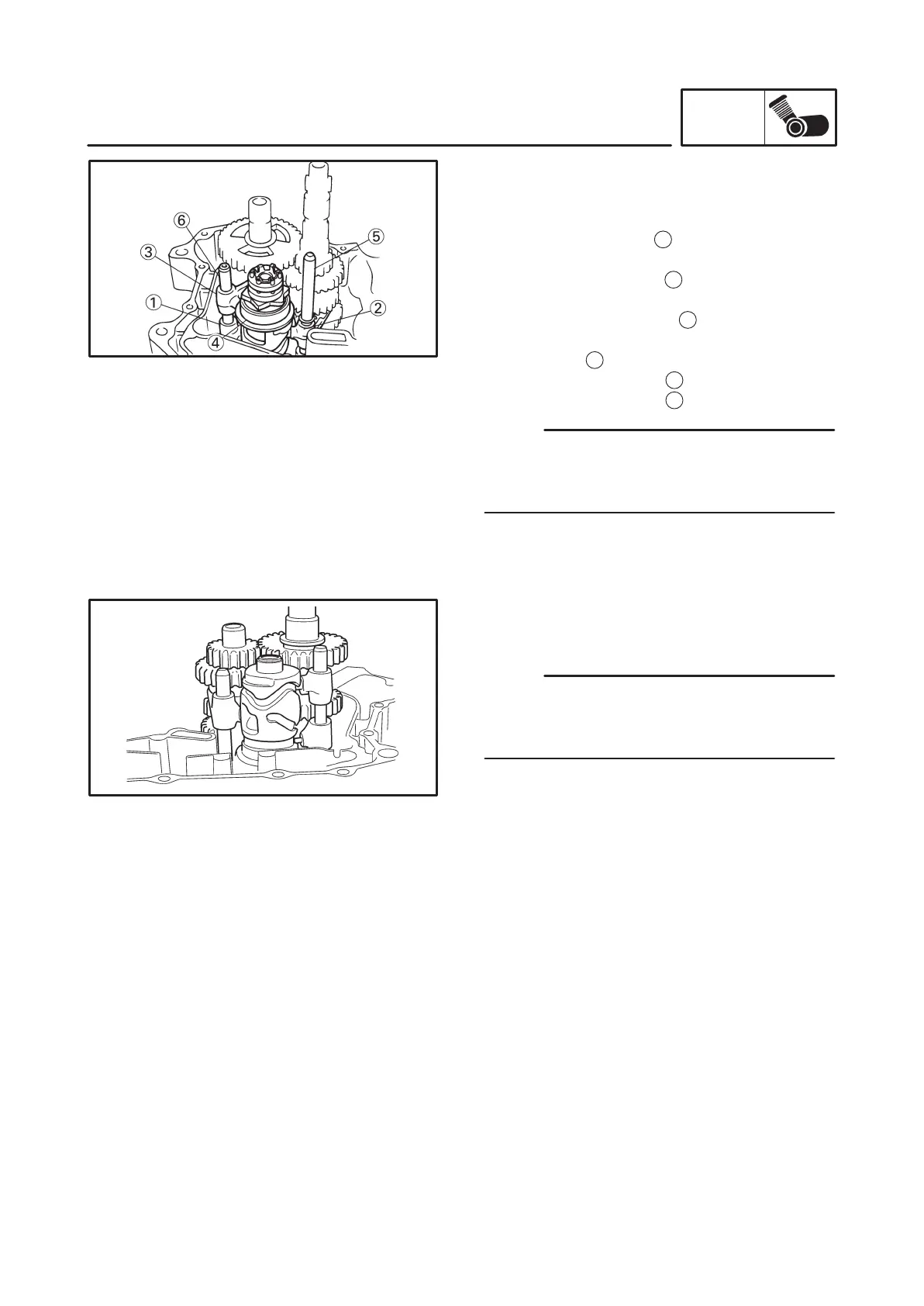

INSTALLING THE TRANSMISSION, SHIFT
FORKS AND SHIFT DRUM ASSEMBLY
1. Install:
shift fork 1 “1” (left)
1
(face the “1” side for the clutch side.)
shift fork 2 “2” (right)
2
(face the “2” side for the clutch side.)
shift fork 3 “3” (center)
3
(face the “3” side for the magneto side.)
shift drum
4
shift fork guide bar 1
5
(long)
shift fork guide bar 2
6
(short)
Install the shift forks with the embossed mark to
the right and in sequence (1, 2, 3) beginning
from the right.
2. Check:
shift drum operation
Unsmoothy operation Repair.
Check the transmission and shift forks for
smooth operation by turning the shift drum with
your hand.
To Next Page
