Order Job/Part Q’ty Remarks
1
2
3
4
5
6
7
8

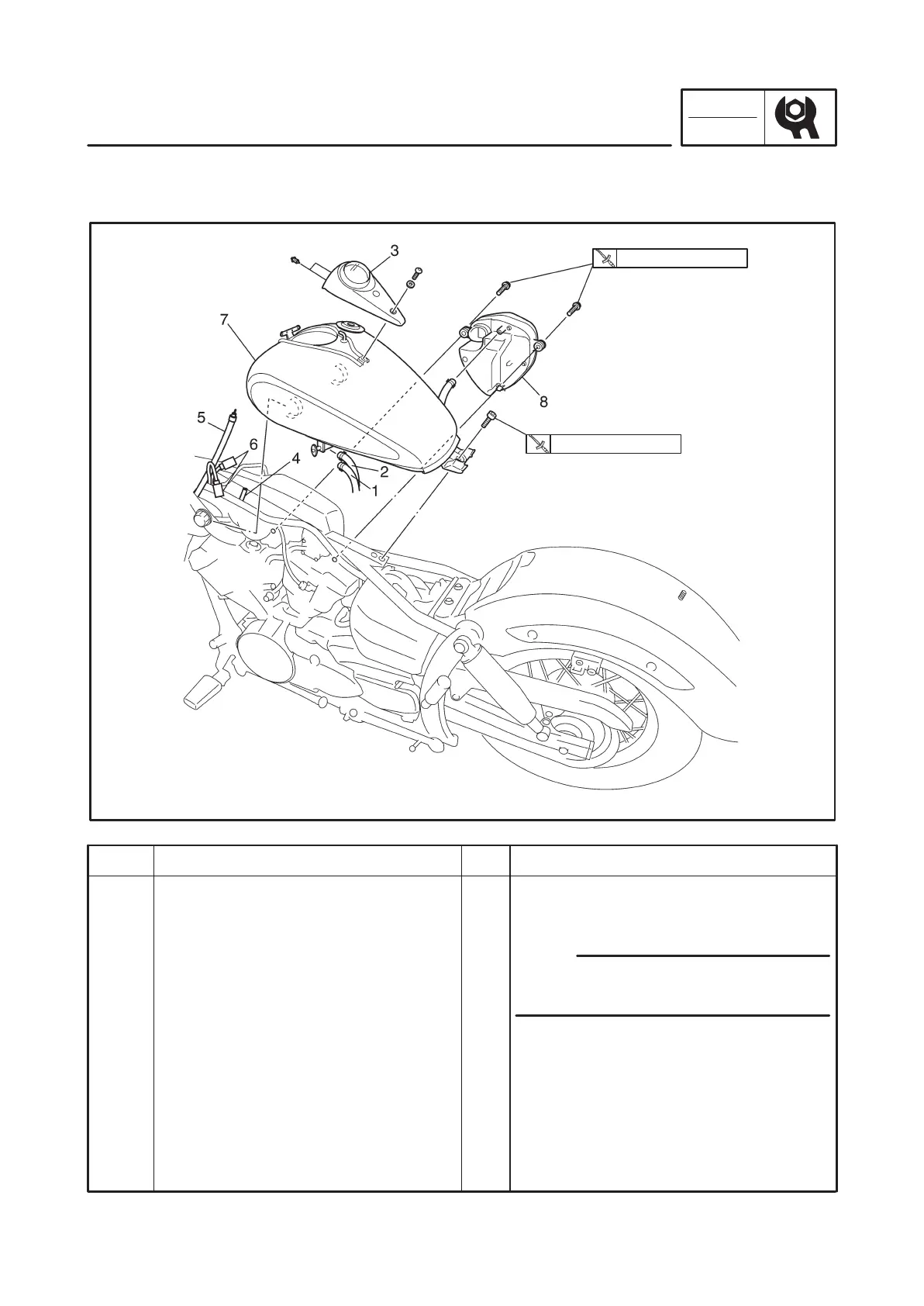

Removing the fuel tank and air filter
Rider and passenger seats
Fuel hose
Vacuum hose
Speedometer
Fuel tank breather hose
Speedometer cable
Speedometer lead coupler
Fuel tank
Air filter
1
1
1
1
1
1
1
1
Remove the parts in the order listed.
Refer to “RIDER AND PASSENGER
SEATS”.
Set the fuel cock to “ON” or “RES” before
disconnecting the fuel hose.
Disconnect.
For installation, reverse the removal
procedure.
NOTE:
7 Nm (0.7 mSkg)
23 Nm (2.3 mSkg)
FUEL TANK AND AIR FILTER
CHK
ADJ
FUEL TANK AND AIR FILTER
