Yamaha XVS250 2001 - Assembling the Carburetor

6-6
CARBURETOR
CARB
NOTE:
CAUTION:
EB600042

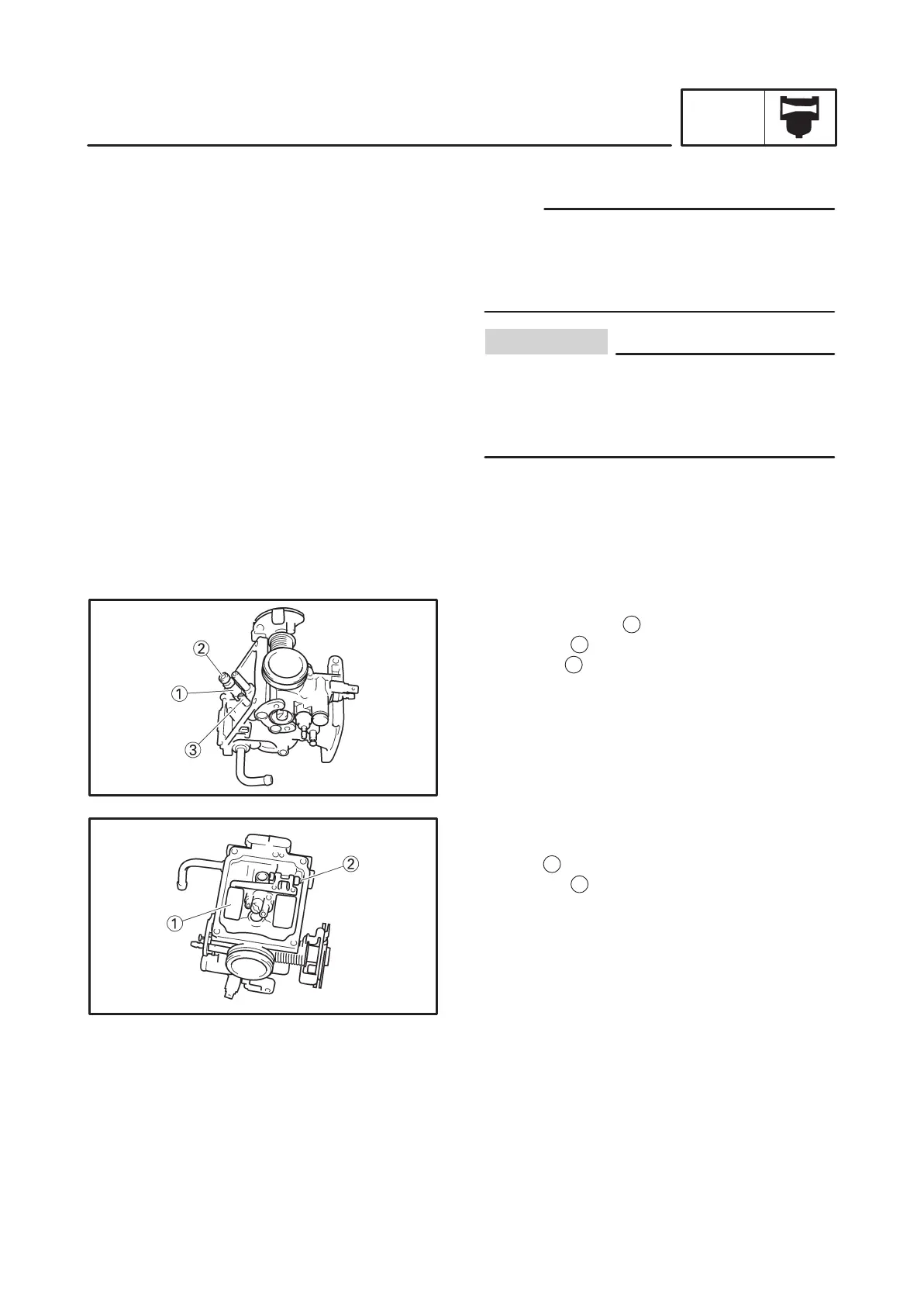

ASSEMBLING THE CARBURETOR
Before disassemblling the carburetor, make
sure to note the number of times, the pilot screw
is turned out from the seated position to its set
position.
 Before assembling the carburetors, wash
all of the parts in a petroleum-based sol-
vent.
 Always use a new gasket.
1. Install:
 main jet holder
1
 main jet
2
 pilot jet
3
2. Install:
 needle valve seat
3. Install:
 needle valve
 float
1
 float pin
2
4. Install:
 float chamber
 pilot screw
 piston valve
 piston valve spring
 vacuum chamber cover
