5-66
TRANSMISSION
ENG
WARNING
EAS00420

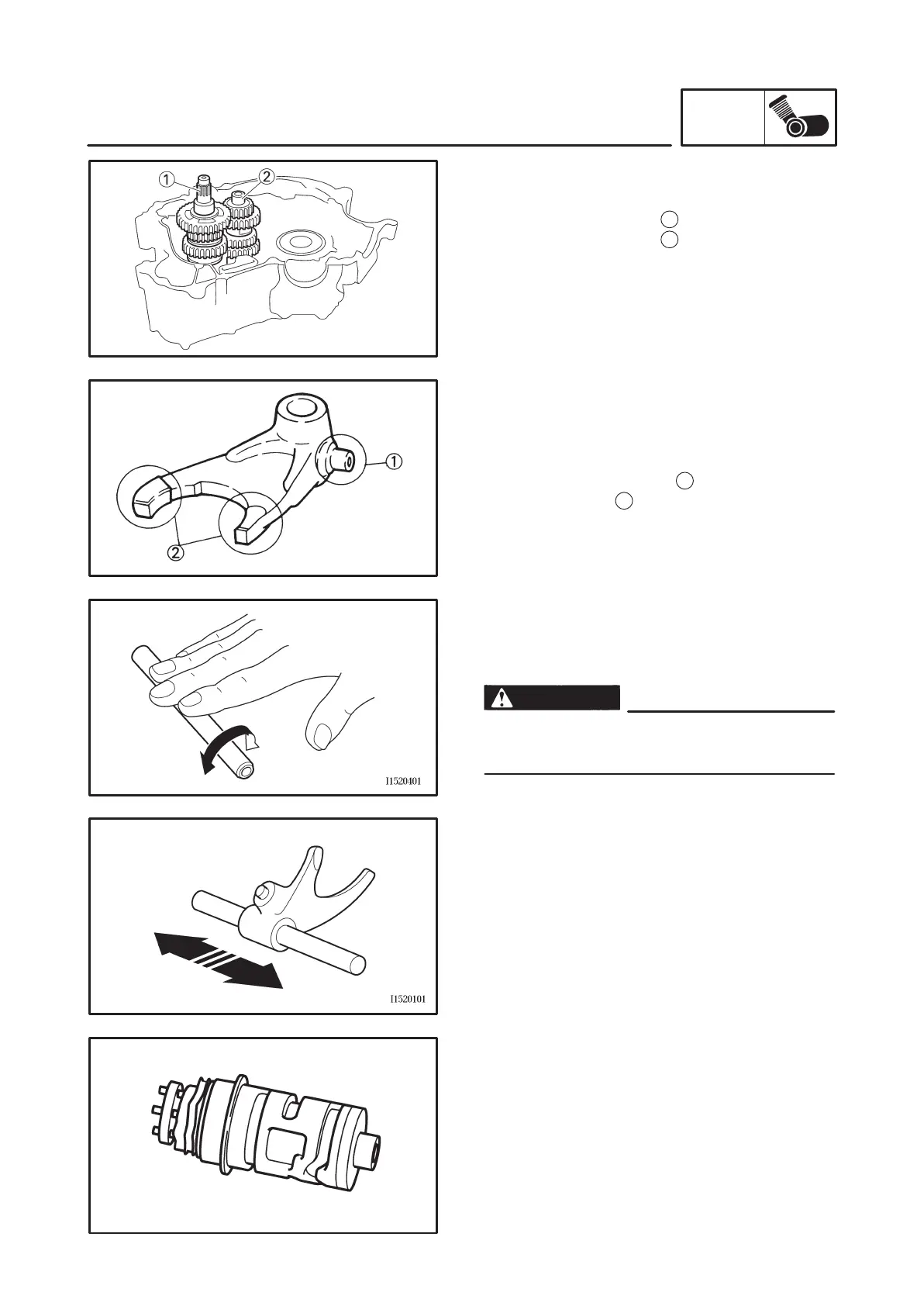

REMOVING THE TRANSMISSION
1. Remove:
drive axle assembly
1
main axle assembly
2
Remove them at same the time.
EAS00421
CHECKING THE SHIFT FORKS
The following procedure applies to all of the shift
forks and related components.
1. Check:
shift fork cam follower
1
shift fork pawl
2
Bends/damage/scoring/wear Replace
the shift fork.
2. Check:
shift fork guide bar
Roll the shift fork guide bar on a flat surface.
Bends Replace.
Do not attempt to straighten a bent shift fork
guide bar.
3. Check:
shift fork movement
(on the shift fork guide bar)
Rough movement Replace the shift forks
and shift fork guide bar as a set.
EAS00422
CHECKING THE SHIFT DRUM ASSEMBLY
1. Check:
shift drum grooves
Damage/scratches/wear Replace the
shift drum.
shift drum segment
Damage/wear Replace.
shift drum bearing
Damage/pitting Replace.
To Next Page
