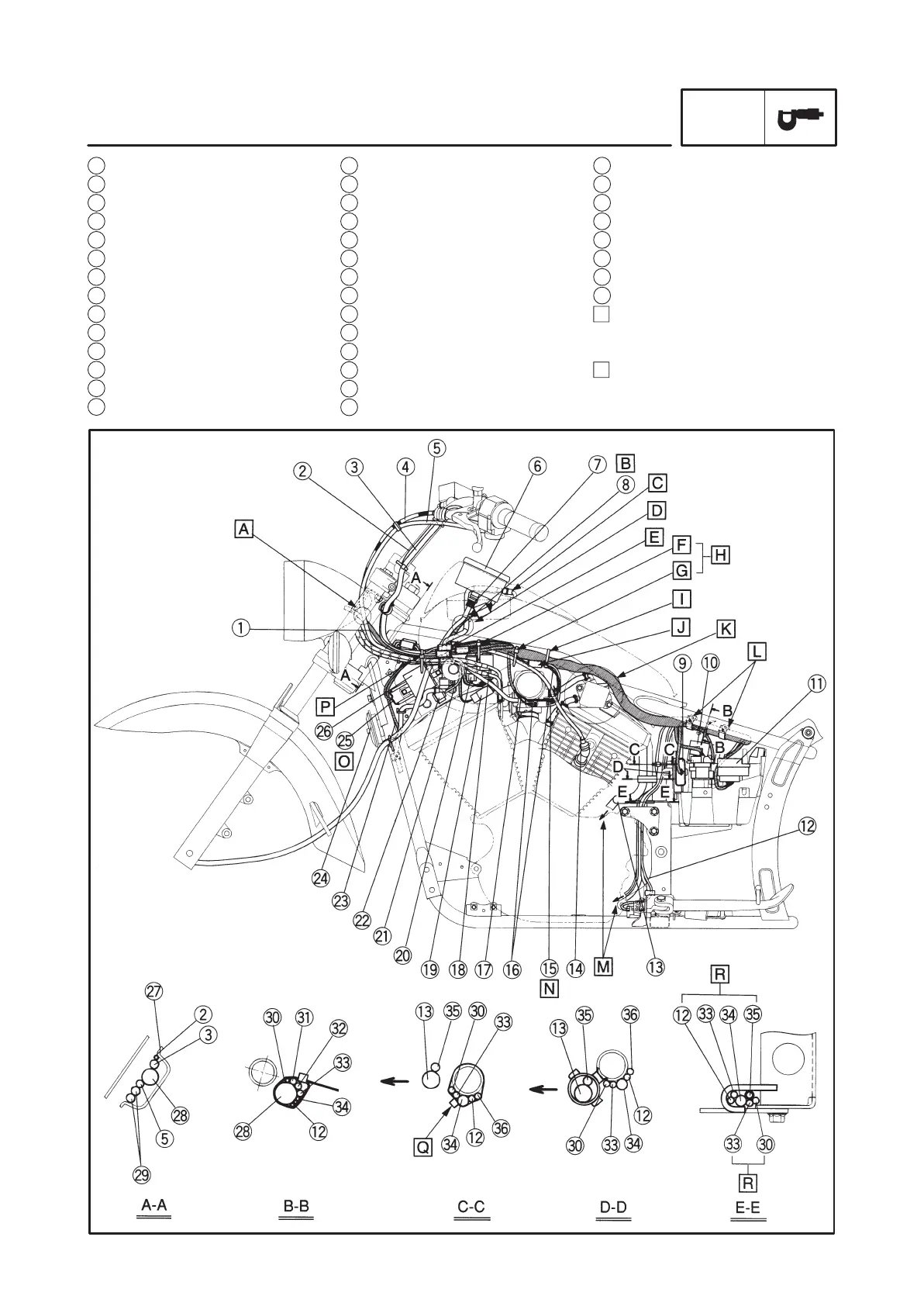

CABLE ROUTING
SPEC
1 Headlight lead
2 Clutch switch lead
3 Left handlebar switch lead
4 Clutch cable
5 Starter cable
6 Speedometer
7 Speedometer cable
8 Speedometer lead
9 Igniter unit
10 Starting circuit cut-off relay
11 Fuse box
12 Side stand switch lead
13 Crankcase breather hose
14 High tension code #2
15 Throttle position sensor lead
16 Carburetor heater lead
17 Carburetor heater ground lead
18 Flasher relay
19 Headlight relay
20 Carburetor heater relay
21 Thermo switch lead
22 Thermo switch
23 Horn lead
24 Horn
25 Ignition coil lead
26 Ignition coil #2
27 Left side cover
28 Wire harness
29 Throttle cable
30 Ground connection lead
31 Battery negative (–) lead
32 Alarm lead
33 Starter motor lead
34 A.C. magneto lead
35 Vacuum hose
36 Rear brake switch lead
A Insert the front turn signal leads
and headlight lead into hole of
headlight unit.
B Put the speedometer couplers
out of hole.
To Next Page
