2-28
I Clamp the wireharness, throttle
position sensor lead and carbu-
retor heater lead to the frame.
J Put the throttle position sensor
coupler under the wireharness.
K Face the crip end to outward
(X4).
L Clamp the wireharness.
M To the engine.
N Pass the throttle position sensor
lead through under the fuel hose.
C Face the clip end to inward.
D Route the speedometer cable,
speedometer leads and fuel tank
breather hose through the hole
of fuel tank.
E Clamp the white tape section of
wireharness.
F Clamp the wireharness and
leads (backward of 3 coulers).
G Clamp the wireharness (back-
ward of branch).
H Clamp end faces to bottom.

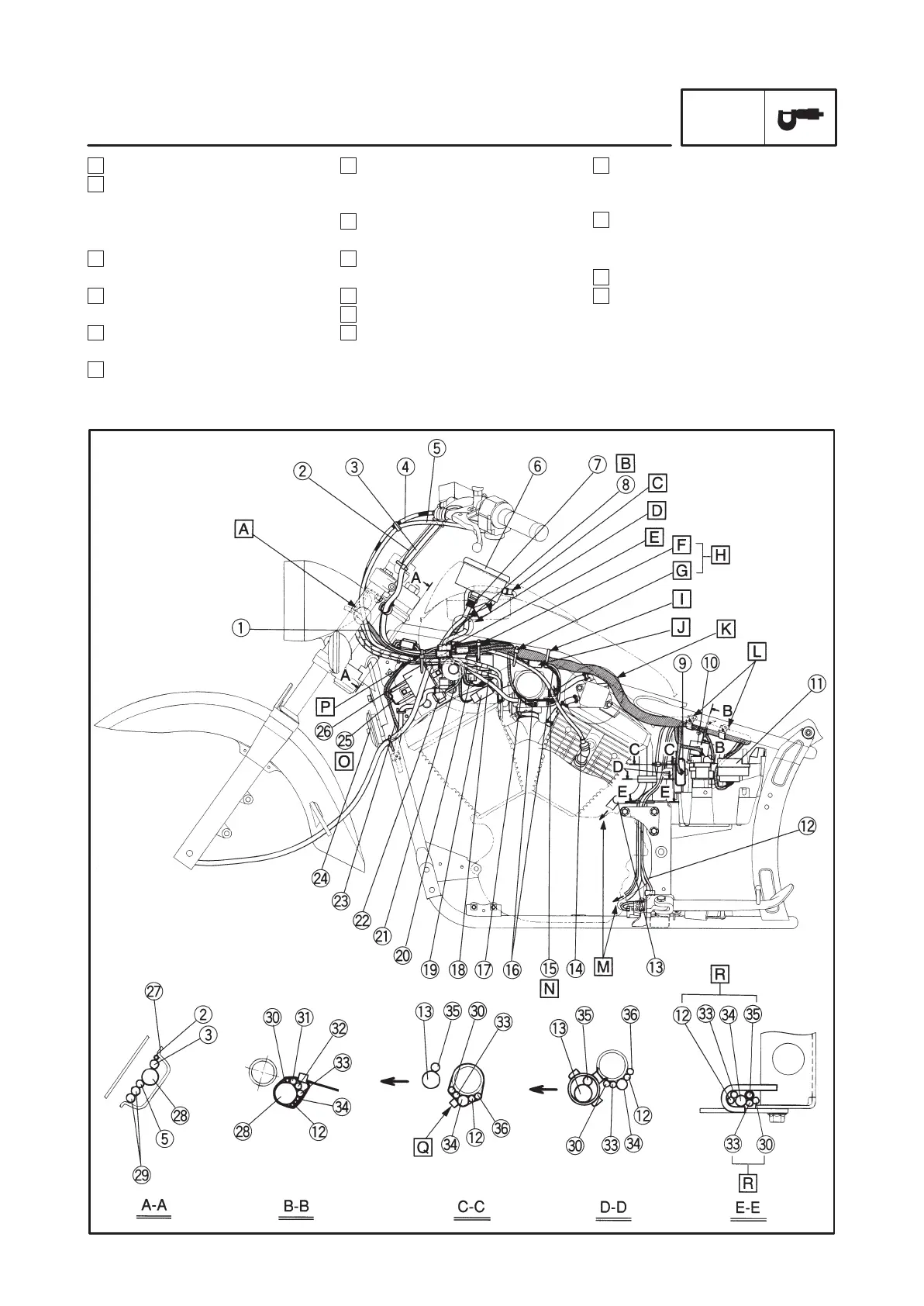

CABLE ROUTING
SPEC
O Connect the ignition coil leads.
(gray lead: upper)
(red lead: lower)
P Clamp the wireharness and
leads.
Clamp end faces to bottom.
Q Run all leads along the frame.
R Pass between the holder and
engine stay (left side).
To Next Page
