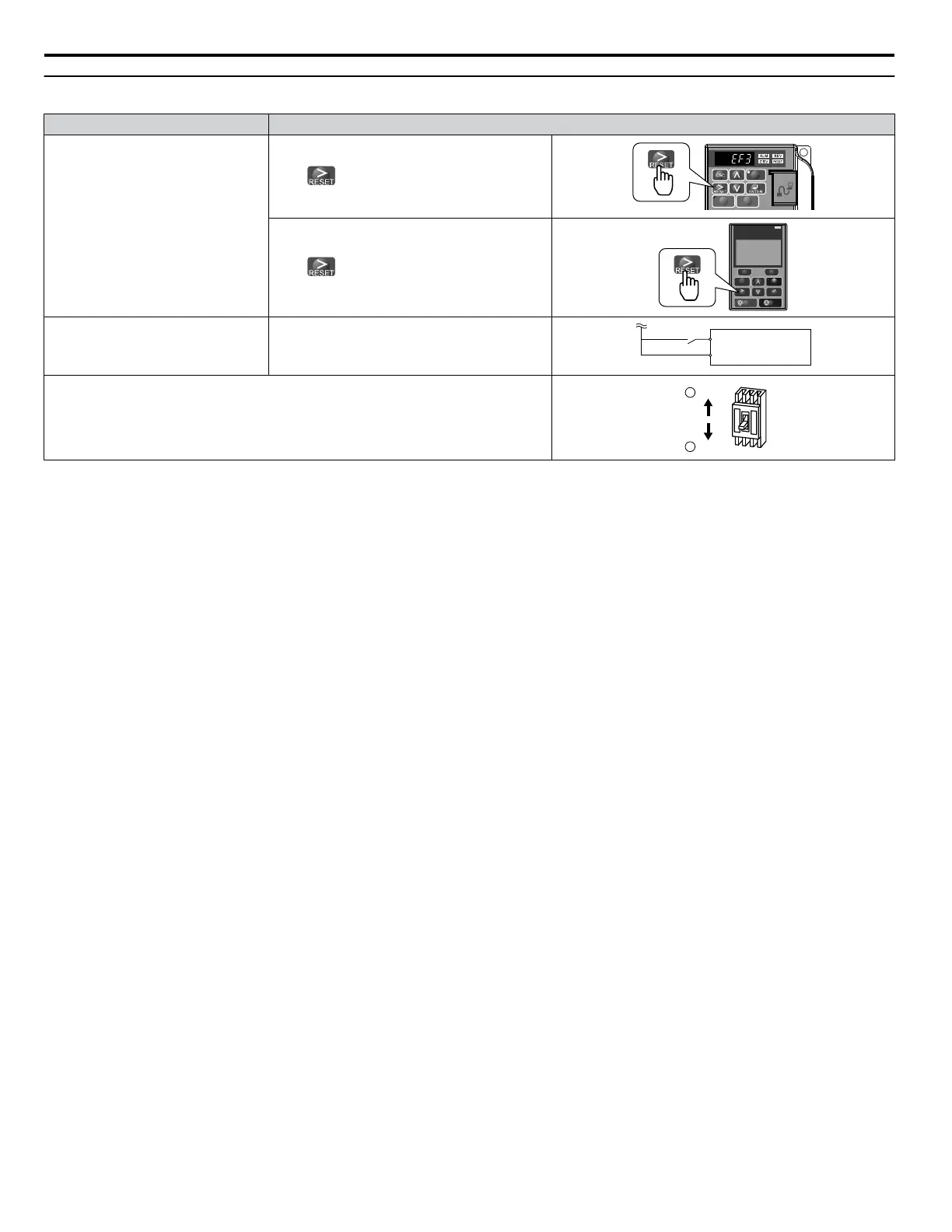

Fault Reset Methods
After the Fault Occurs Procedure
Fix the cause of the fault, restart the
drive, and reset the fault
Press
on the digital operator.
Press on the optional HOA keypad.
F2F1
ESC
M
M
AUTO OFF
ENTERRESET
-DRIVE-
U1- 01=60.00Hz
----------------
U1- 02=60.00Hz
JOG FWD FWD/REV
-Rdy-
ALM
DIGITAL OPERATOR JVOP-183
HAND
Freq Ref (OPR)
Fix the cause of the fault and reset via
Fault Reset Digital Input S4.
Close then open the fault signal digital input via
terminal S4. S4 is set fault reset as default
(H1-04 = 12).
Fault Reset Switch
Drive
S4 Fault Reset Digital Input
SC Digital Input Common
Turn off the main power supply if the above methods do not reset the fault. Reapply power
after the digital operator display has turned off.
ON
OFF
2
1
