3.4 Protective Covers
Follow the procedure below to remove the protective covers before wiring the drive and to reattach the covers after wiring is
complete.
u
IP20/NEMA 1, UL Type 1 Front and Bottom Cover Removal and Installation
n
Removing the Protective Covers on an IP20/NEMA 1, UL Type 1 Design
1.
Loosen the screw on the front cover to remove the front cover.

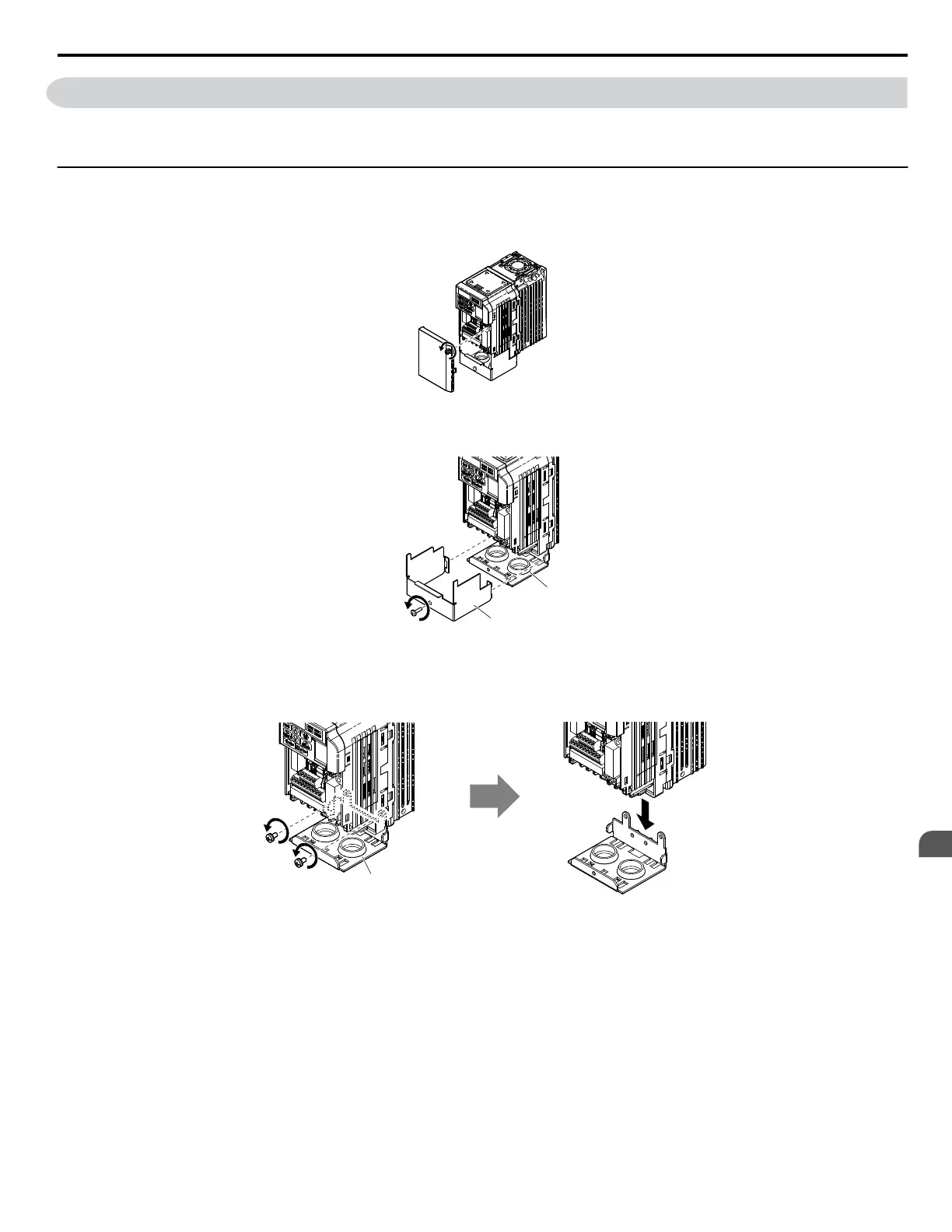

Figure 3.6 Remove the Front Cover on an IP20/NEMA 1, UL Type 1 Drive
2.
Loosen the screw on the terminal cover to remove the terminal cover and expose the conduit bracket.
A
B
A – Conduit bracket B – Terminal cover
Figure 3.7 Remove the Terminal Cover on an IP20/NEMA 1, UL Type 1 Drive
3.
Loosen two screws attaching the conduit bracket to remove.
A
A –Conduit bracket
Figure 3.8 Remove the Conduit Bracket on an IP20/NEMA 1, UL Type 1 Drive
