3.3 Terminal Block Configuration

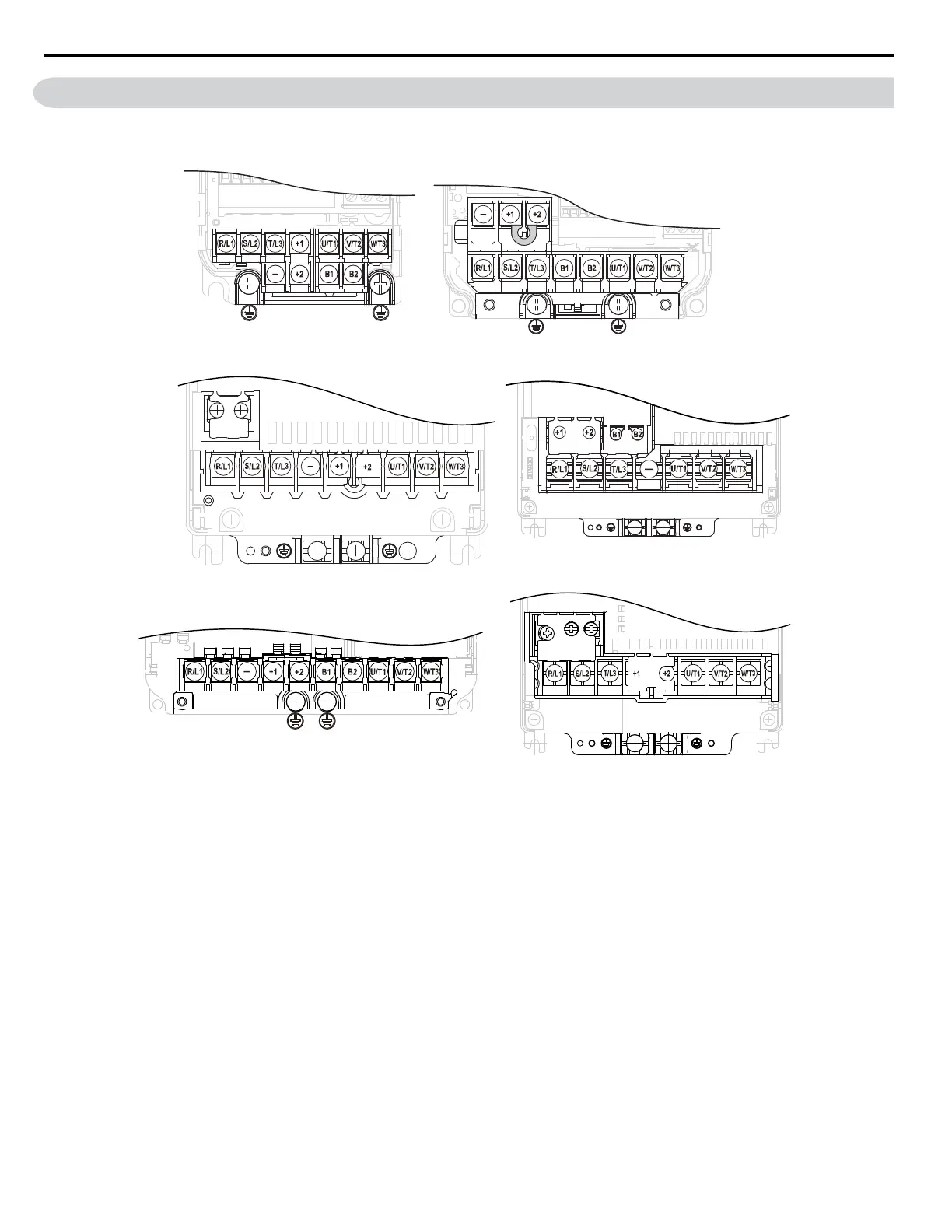

Figure 3.5 provides illustrations of the main circuit terminal block configurations of the different drive sizes.
Model 2V0006
Models BV0006 to BV0012
2V0010 to 2V0020
4V0002 to 4V0011
Models 2V0030 and 2V0040
4V0018 and 4V0023
Model 2V0069
Model BV0018
Models 2V0056
4V0031 and 4V0038
Figure 3.5 Main Circuit Terminal Block Configurations
