YASKAWA iQpump Micro CIMR-PW Series

4.4 Using the Standard Digital LED Operator
Use the LED operator to enter run and stop commands, display data, edit parameters, as well as display fault and alarm
information.
u

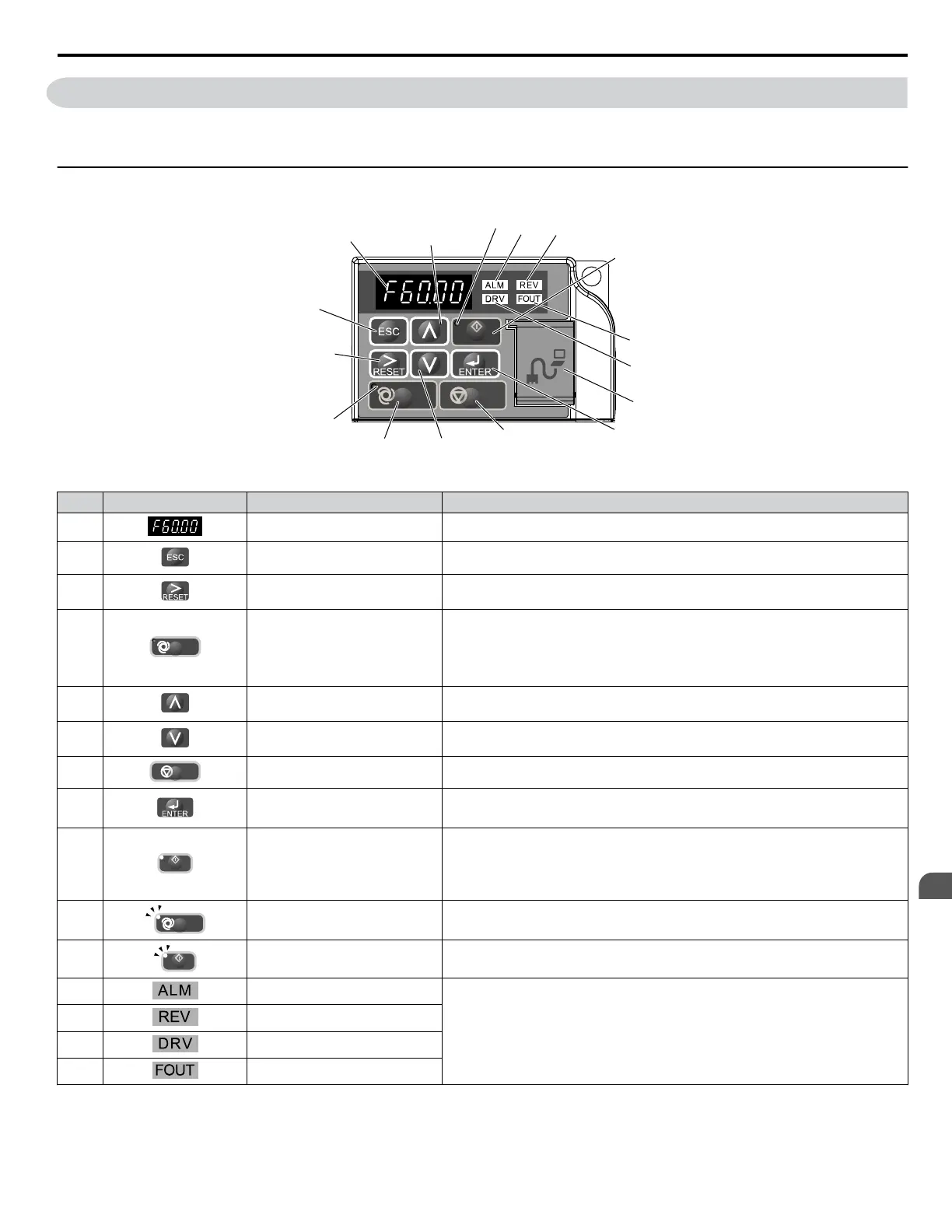

Keys, Displays, and LEDs
5
1
11
12
13
8
15
14
16
10
2
3
AUTO OFF
HAND
4 6
7
9
Table 4.1 Keys and Displays on the LED Operator
No. Display Name Function
1
Data Display Area Displays the setpoint, frequency reference, parameter number, etc.
2
ESC Key Returns to the previous menu.
3
RESET Key
Moves the cursor to the right.
Resets the drive to clear a fault situation.
4
AUTO
AUTO Key
Selects the source of Run command and frequency reference.
• Set the drive to AUTO mode.
• Run command input source depends on b1-02.
• Frequency reference input source depends on b1-01.
5 Up Arrow Key
Scrolls up to display the next item, selects parameter numbers, and increments
setting values.
6 Down Arrow Key
Scrolls down to display the previous item, selects parameter numbers, and
decrements setting values.
7
OFF
OFF Key Follows the stopping method set in b1-03 to stop drive operation.
8
ENTER Key
• Enters parameter values and settings.
• Selects a menu item to move between displays.
9
HAND
HAND Key
The drive runs at a selectable frequency reference source as set by P5-01.
• Set the drive to HAND mode.
• When P5-03 is set to 1, HAND and AUTO mode can be switched while the drive
is running.
10
AUTO
AUTO Light Lit while the drive is in AUTO mode. Refer to page 70 for details.
11
HAND
HAND Light Lit while the drive is in HAND mode. Refer to page 70 for details.
12
ALM LED Light
Refer to LED Screen Displays on page 70.
13
REV LED Light
14
DRV LED Light
15
FOUT LED Light
4.4 Using the Standard Digital LED Operator
YASKAWA TOEP YAIQPM 03B YASKAWA AC Drive - iQpump Micro User Manual
69
4
Start-Up Programming & Operation
