No. Name Display Content
9
Function Key 1
(F1)
<-MONITOR->
Pressing
F1
displays the previous Quick Monitor.
←
Pressing
F1
scrolls the cursor to the left.
Home
Pressing
F1
returns to the top menu (Frequency Reference).
ESC
Pressing
F1
returns to the previous display.
Monitor
Pressing
F1
switches Monitor mode.
<1> Displayed when in Frequency Reference Mode.
<2> Displayed when in Frequency Reference Mode and Monitor Mode.
u
ALARM (ALM) LED Displays

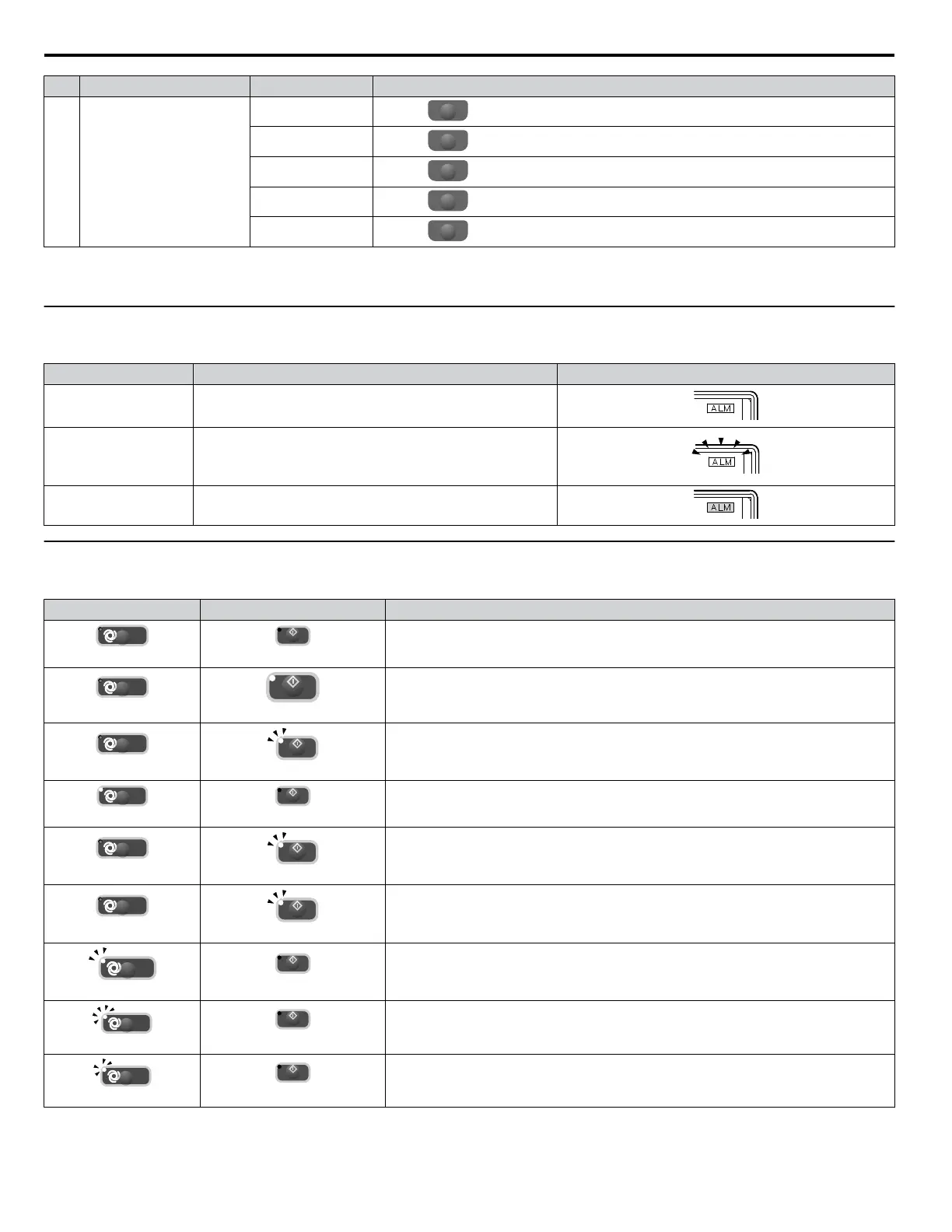

Table 4.4 ALARM (ALM) LED Status and Contents
State Content Display
Illuminated When the drive detects an alarm or error.
Flashing
• When an alarm occurs.
• When an oPE is detected.
• When a fault or error occurs during Auto-Tuning.
Off Normal operation (no fault or alarm).
u
AUTO LED and HAND LED Indications
Table 4.5 AUTO LED and HAND LED Indications
AUTO LED HAND LED State
AUTO
Off
HAND
Off
OFF mode
AUTO
Off
HAND
On solid
HAND mode (Also during DC injection braking)
AUTO
Off
HAND
Long blink (50% duty)
HAND mode when the Frequency Reference is 0 and/or decelerating in HAND mode, or
during PI Sleep or Snooze.
AUTO
On solid
HAND
Off
Running in AUTO mode (Also during DC injection braking)
AUTO
Off
HAND
Short blink (15% duty)
HAND mode, Ready, No Run command input.
Note: Short Blink for Legacy Operation Mode (S5-04 = 0).
AUTO
Off
HAND
Double blink
HAND mode, cycle the Run command.
AUTO
Long blink (50% duty)
HAND
Off
Running in AUTO mode when the Frequency Reference is 0 and/or decelerating in AUTO
mode, or during PI Sleep or Snooze.
AUTO
Short blink (15% duty)
HAND
Off
AUTO mode, Ready, No run command input.
AUTO
Double blink
HAND
Off
AUTO mode, stopped by a Fast- Stop from a Multi-Function Digital Input.
