3 Installation
3.1 Installation of the Safeguarding
3-2
170904-1CD
HW1482870
MPL80 II
3.1 Installation of the Safeguarding
To insure safety, be sure to install safeguarding. It prevents unforeseen
accidents with personnel and damage to equipment. Refer to the quoted
clause for your information and guidance.
Responsibility for Safeguarding (ISO10218)
The user of a manipulator or robot system shall ensure that safeguarding
is provided and used in accordance with Sections 6, 7, and 8 of this
standard. The means and degree of safeguarding, including any
redundancies, shall correspond directly to the type and level of hazard
presented by the robot system consistent with the robot application.
Safeguarding may include but not be limited to safeguarding devices,
barriers, interlock barriers, perimeter guarding, awareness barriers, and
awareness signals.
3.2 Mounting Procedures for Manipulator Base
The manipulator should be firmly mounted on a baseplate or foundation
strong enough to support the manipulator and withstand repulsion forces
during acceleration and deceleration.
Construct a solid foundation with the appropriate thickness to withstand
maximum repulsion forces of the manipulator referring to Table 3-1
“Manipulator Repulsion Force and Torque” .
A baseplate flatness must be kept at 0.5 mm or less: insufficient flatness
of installation surface may deform the manipulator shape and affect its
functional abilities. Mount the manipulator base as instructed in section
3.2.1 “Mounting Example” or section 3.2.2 “When the Manipulator is
Mounted Directly on the Floor”.

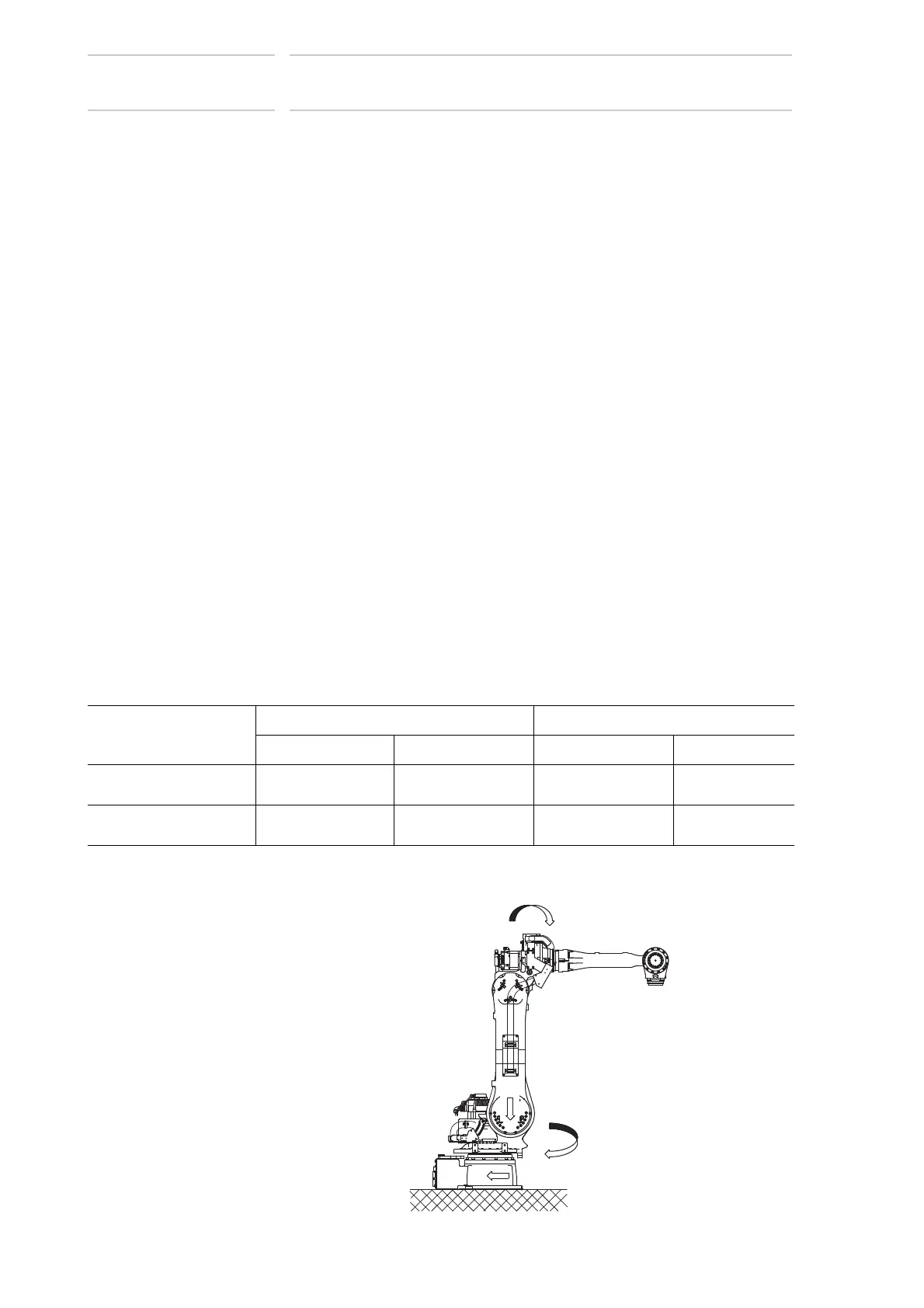

Fig. 3-1: Manipulator Repulsion Force and Torque
Table 3-1: Manipulator Repulsion Force and Torque
Horizontal rotation Vertical rotation
Repulsion force F
H
Torque M
H
Repulsion force F
V
Torque M
V
Emergency stop 23544 N
(2400kgf)
24525 N•m
(2500 kgf•m)
27468 N
(2800 kgf)
45126 N•m
(4600 kgf•m)
Acceleration/deceleration 5886 N
(600 kgf)
6131 N•m
(625 kgf•m)
5396 N
(550 kgf)
11282 N•m
(1150 kgf•m)
M
V
M
H
F
H
F
V
