8 Electrical Equipment Specification
8.1 Position of Limit Switch
MPL80
II
8.1.3 Setting of Operation Range
8.1.3.1 S-Axis Operation Range
By the S-axis limit switch, S-axis operation range can be set to those
ranges mentioned in Table 5-2 “S-Axis Operating Range”.
8.1.3.2 L-Axis Operation Range
By the L-axis limit switch, the L-axis operation range can be set to any
angles within -91° to +136° as mentioned in the figure below.

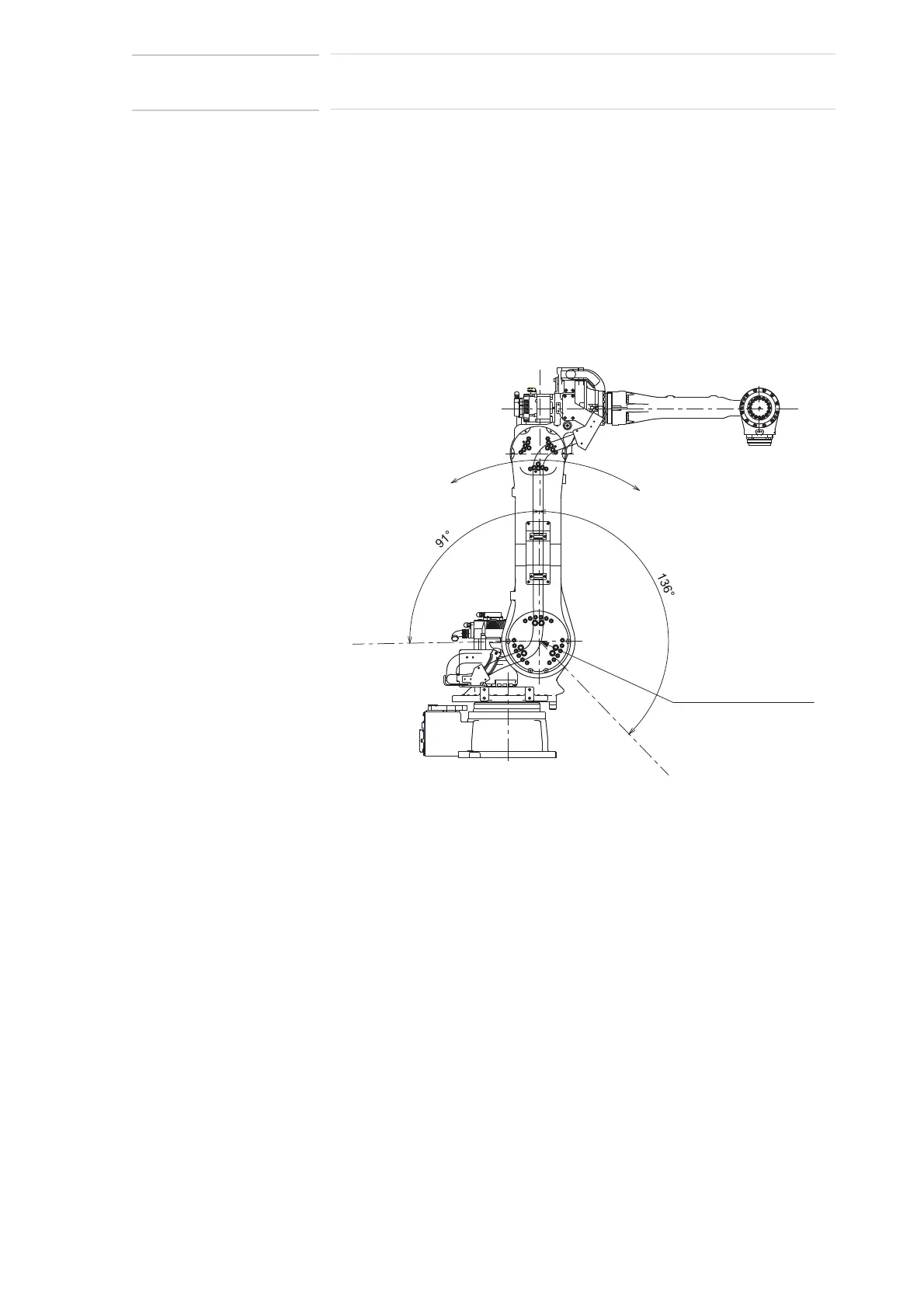

Fig. 8-2: L-Axis Overrun Limit Switch Setting Range
Negative side
Positive side
L-axis center of rotation
