YASKAWA RM2-755/1255SL User Manual

3-3
166006-1CD
166006-1CD
3 Power Connections
3.2 Cable Connection
RM2-755/1255SL
Positioner

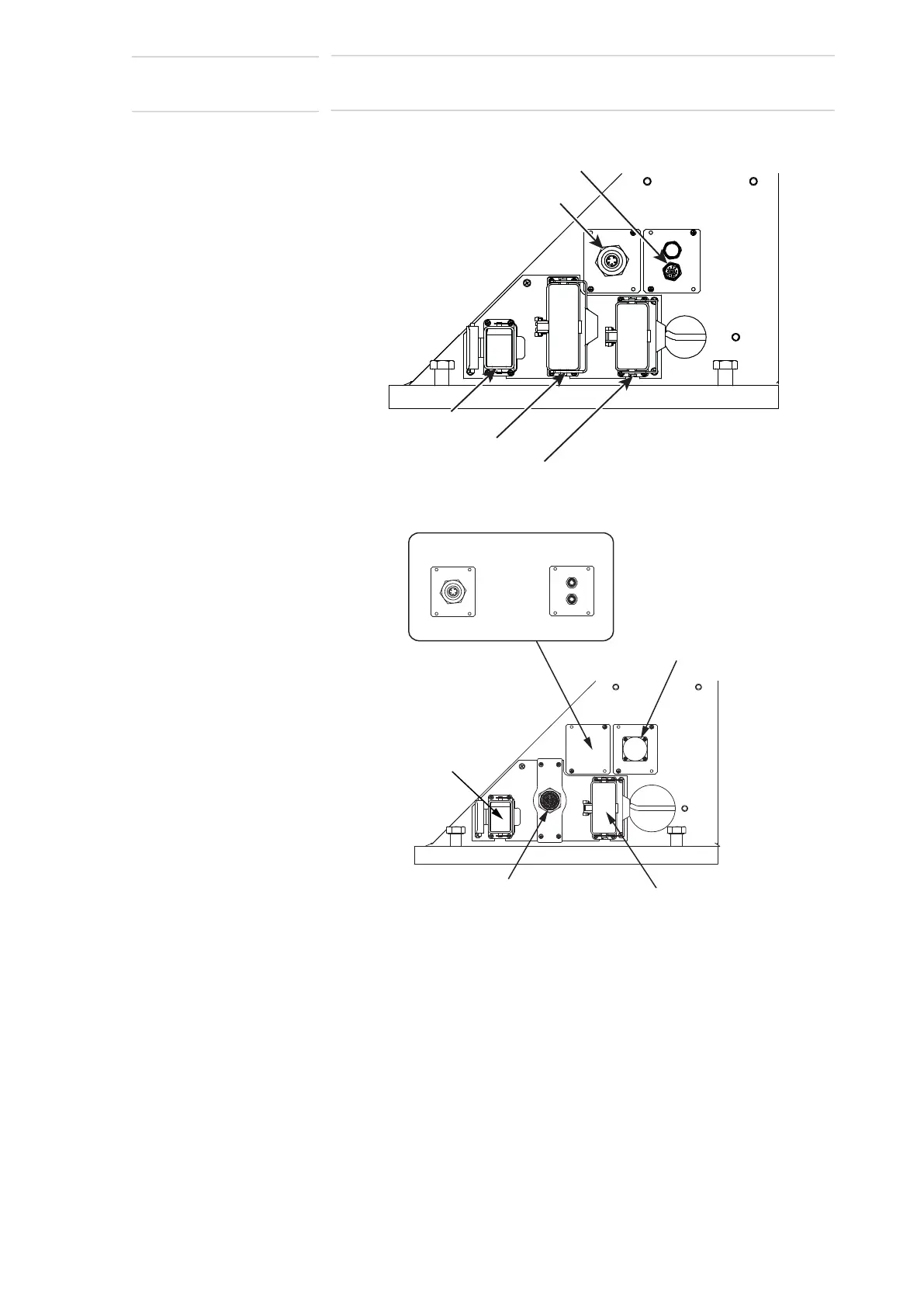

Fig. 3-3: Connection between Positioner and Controller (Positioner Side)
(Before August 2018)
Fig. 3-4: Connection between Positioner and Controller (Positioner Side)
(After August 2018)
3.2.3 Shop Air Connections
The shop air connections is used to operate the valves of the Positioner.
Air pressure for the Positioner should be between 75 to 120psi. to operate
the Positioner assembly efficiently.
MULTIPORT LUBRICATOR
CABLE (OPTIONAL)
ENCODER CABLE
DEVICENET CABLE (OPTIONAL)
POWER CABLE
I/O CABLE (OPTIONAL)
USING DEVICENET
USING ETHERNET
REPLACES COVER PLATE IF EQUIPPED
WITH OPTIONAL SLIP RING.
IO FOR OPTIONAL
SLIP RING
ENCODER
CABLE
MULTIPORT
LUBRICATOR
CABLE
POWER CABLE
46 of 145
