6 Maintenance and Inspection
6.3 Grease Replenishment/Exchange for Speed Reducers
RM2-755/1255SL
Positioner
6.3 Grease Replenishment/Exchange for Speed Reducers
6.3.1 Main Axis
6.3.1.1 Reducer
1. Rotate the B side toward the operator, until S1-motor is in the down
position.
2. Remove four M6 screws, washers and lock washers holding the
S1-axis Motor Cover.

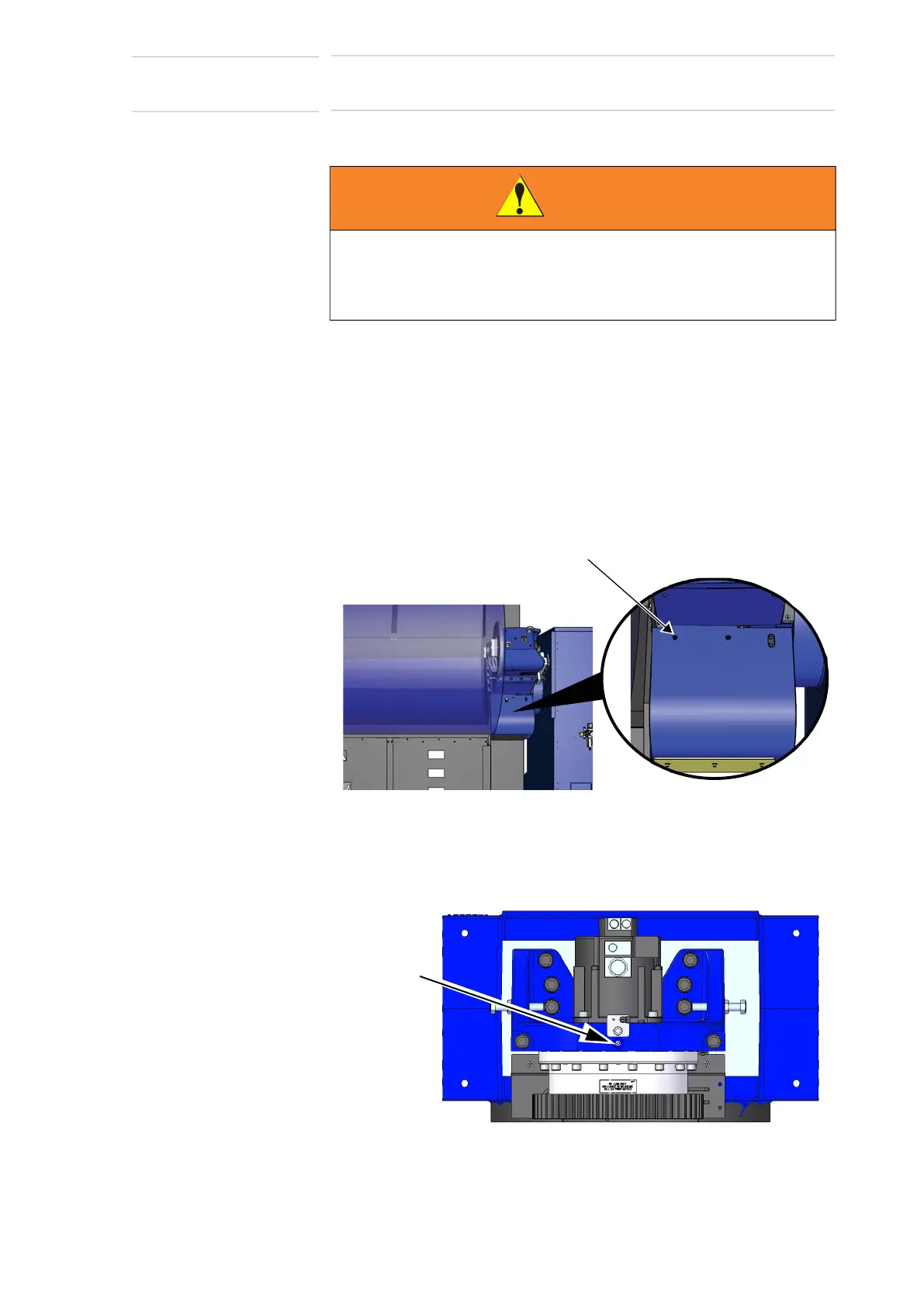

Fig. 6-2: S1-axis Motor Cover Removal
3. Pump Mobil CM-P, Lithium Complex
grease through the reducer from
the motor side and vented on the gear side.
Fig. 6-3: Main Axis
4. Reinstall the S1-axis Motor Cover.
WARNING
• Follow all necessary safety procedures as described in this manual
and all state and federal procedures and regulations.
Not following all necessary safety procedures may result in serious
injury.
M6 SCREWS, WASHERS
AND LOCKING WASHERS (X4)
Main Axis
Grease Fitting
