2 Installation
2.3 Positioner Installation
RM2-755/1255SL
Positioner
2.3.2 Shipping Bolts and Bracket
The Positioner is attached to a wooden shipping skid at the factory, prior
to shipment to the customer. The customer is responsible for removing the
Positioner from the shipping skid and inspecting for shipping damage.

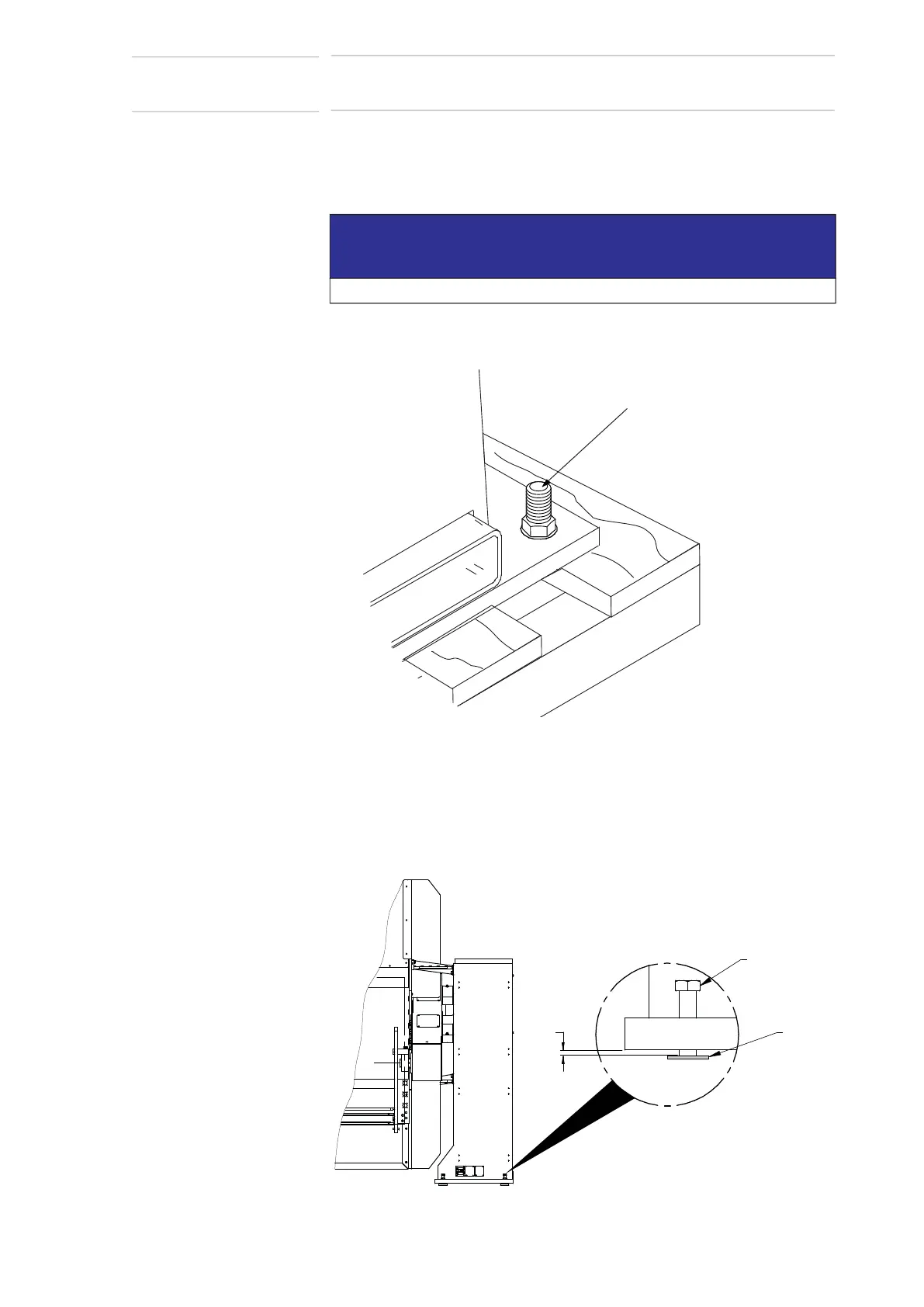

Fig. 2-2: Shipping Bolt Removal
The Positioner is provided with shipping bolts and nuts, (Fig. 2-2)
“Shipping Bolt Removal”.
1. Extend the M20 leveling bolts to a point approximately 6.35mm below
the headstock and tailstock frames to the leveling bolt plate.
See Fig. 2-3.
Fig. 2-3: Setting Leveling Bolts
NOTICE
Notify shipping agent immediately if there is any shipping damage.
SHIPPING BOLT
SHIPPING SKID
ASSEMBLY
6.35 mm
M20 LEVELING BOLT
LEVELING
BOLT PLATE
