6 Maintenance and Inspection
6.3 Grease Replenishment/Exchange for Speed Reducers
RM2-755/1255SL
Positioner
6.3.1.2 Slewing Bearing Raceway
1. Remove the Headstock upper column cover.
2. Locate the grease fitting shown in Fig and grease with Yaskawa
P/N 132177-1, Gadus S2 V220 2

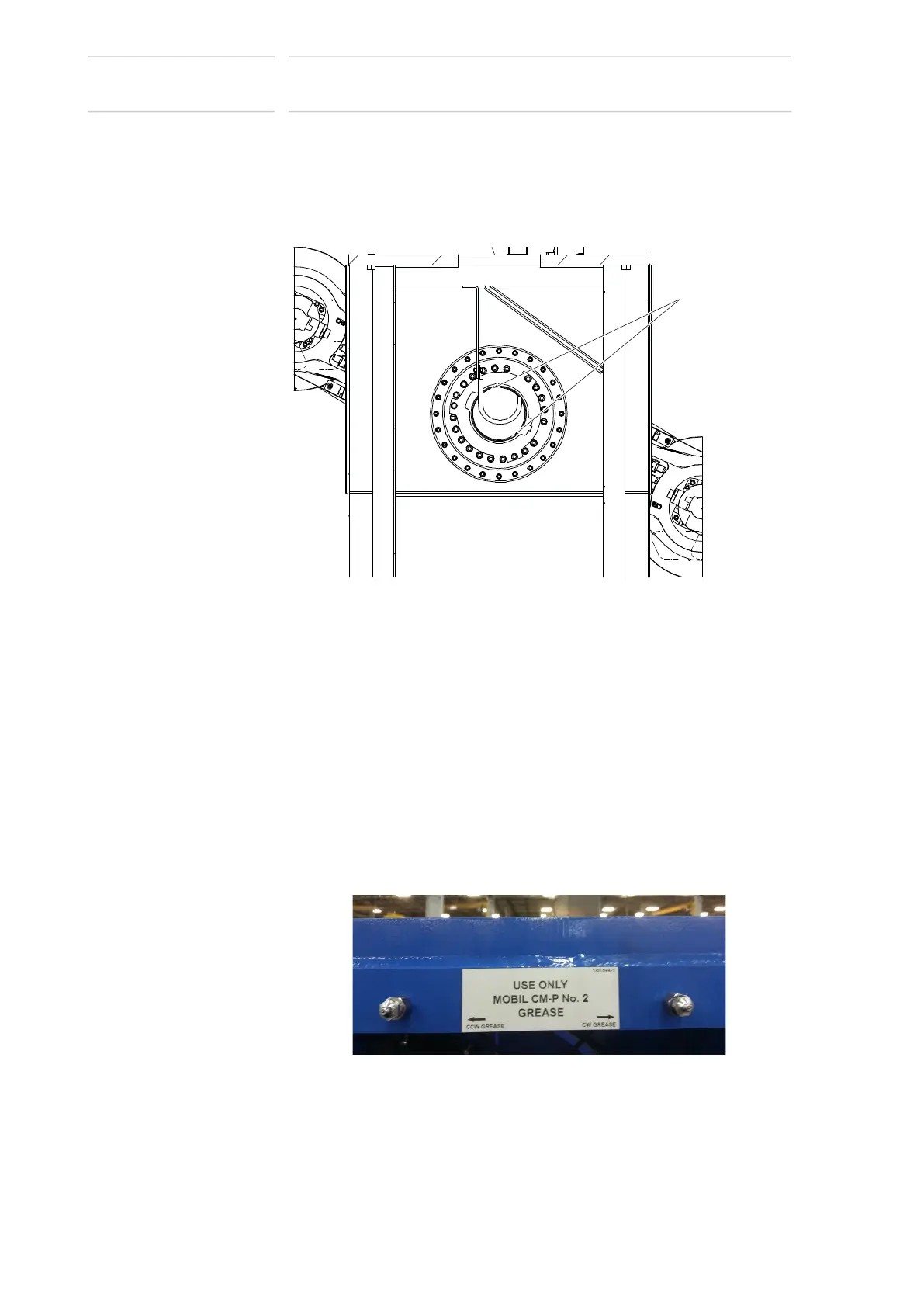

Fig. 6-4: Slewing Bearing Raceway Grease Fittings
6.3.1.3 Gear and Pinion Teeth Lubrication
There are two primary methods of lubricating the Gear and Pinion Teeth.
The two ways are either using grease fittings or using a Multiport
Lubricator system.
Grease Fittings
If the Positioner is retrofitted with the optional remote main axis kit, the
lubrication process will vary from standard method. For convenience, the
main axis lubrication grease fittings are moved from the main axis motor
cover to the top of the headstock column as shown below which allows
main axis lubrication while running. Pump grease into each fitting as the
Positioner turns clockwise or counterclockwise as indicated in the label.
Fig. 6-5: Optional Remote Main Axis Kit Lubrication Fittings
SLEWING BEARING
RACEWAY GREASE
FITTINGS
