YASKAWA RM2-755/1255SL User Manual

5-1
166006-1CD
166006-1CD
5 Load Specifications and Jig Mounting
5.1 Details of Fixture Mounting
RM2-755/1255SL
Positioner
5 Load Specifications and Jig Mounting
5.1 Details of Fixture Mounting
The fixture mounting dimensions are shown in the figures below. It is a
requirement that the fixture be located with the 16mm dowel and attached
with 4 x M12 bolts (10.9 or 8.8 grade)

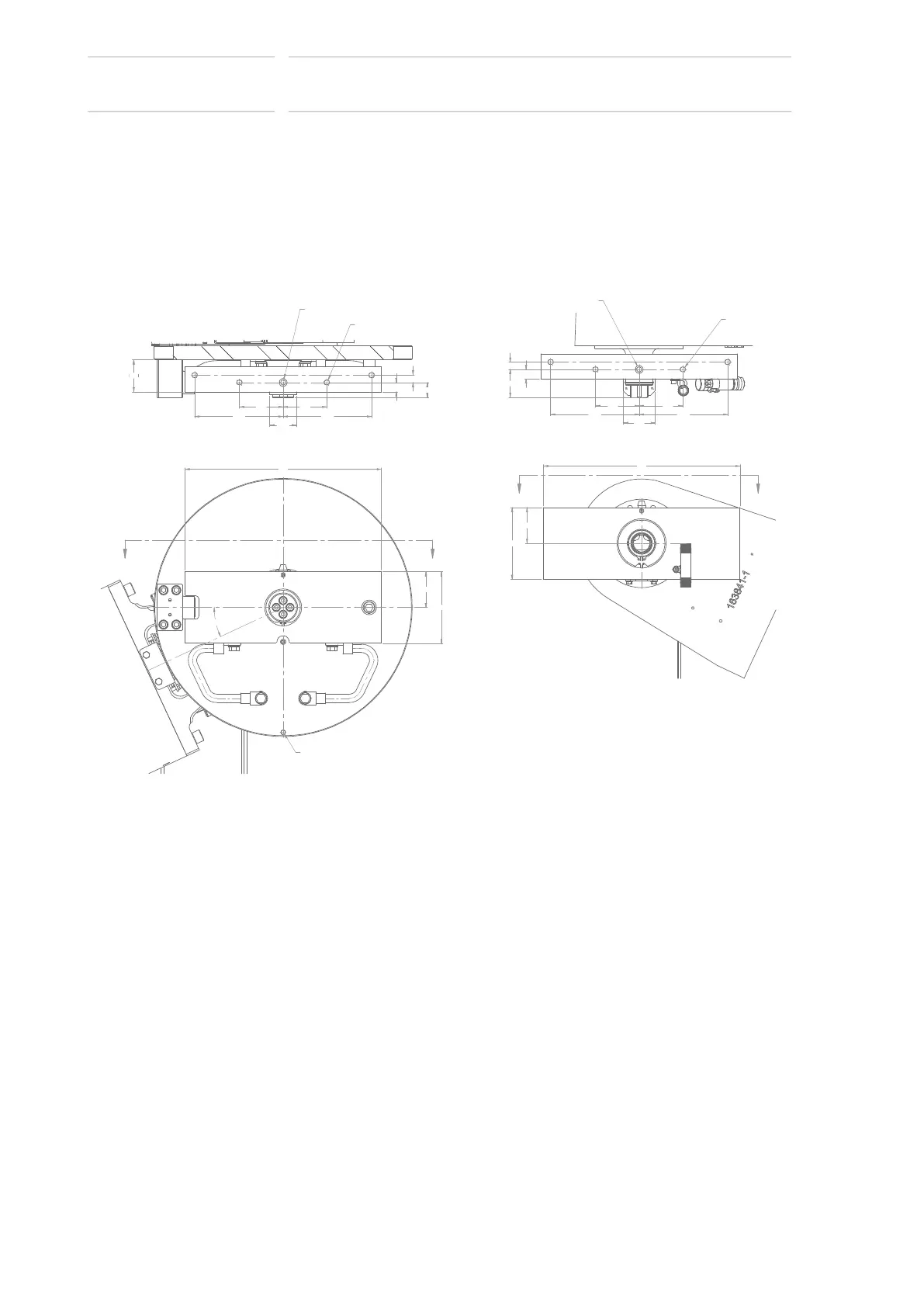

Fig. 5-4: Details of Jig Mounting Face (all measurements in mm)
5.2 Fixture Specifications
• Weight of tool and parts are not to exceed rated Positioner capacity.
• Length of the fixture is to be a nominal ±1mm.
• Diameter of the fixture is not to exceed 1300mm.
TAILSTOCK
F F
400
146
73.0
HEADSTOCK
E E
73.0
400
146
SECTION E
Ø16.0 TOOLING PIN
88.9 88.9
19.0
4X M12 X 1.75±20
180.0 180.0
15.0
30.4
°55
65.8
SECTION F
Ø16.0 TOOLING PIN
88.9
19.0
88.9
4X M12 X 1.75±24.0
TOOLING MOUNTING
15.0
180.0 180.0
65.0
57.0
HOMING PIN
25°
51 of 145
