6 Maintenance and Inspection

6.7 Main (Sweep) Axis Reduction Gear Unit (RV–320E–X)

RM2-755/1255SL

Positioner

3. Install two M12 guide pins onto the ring gear.

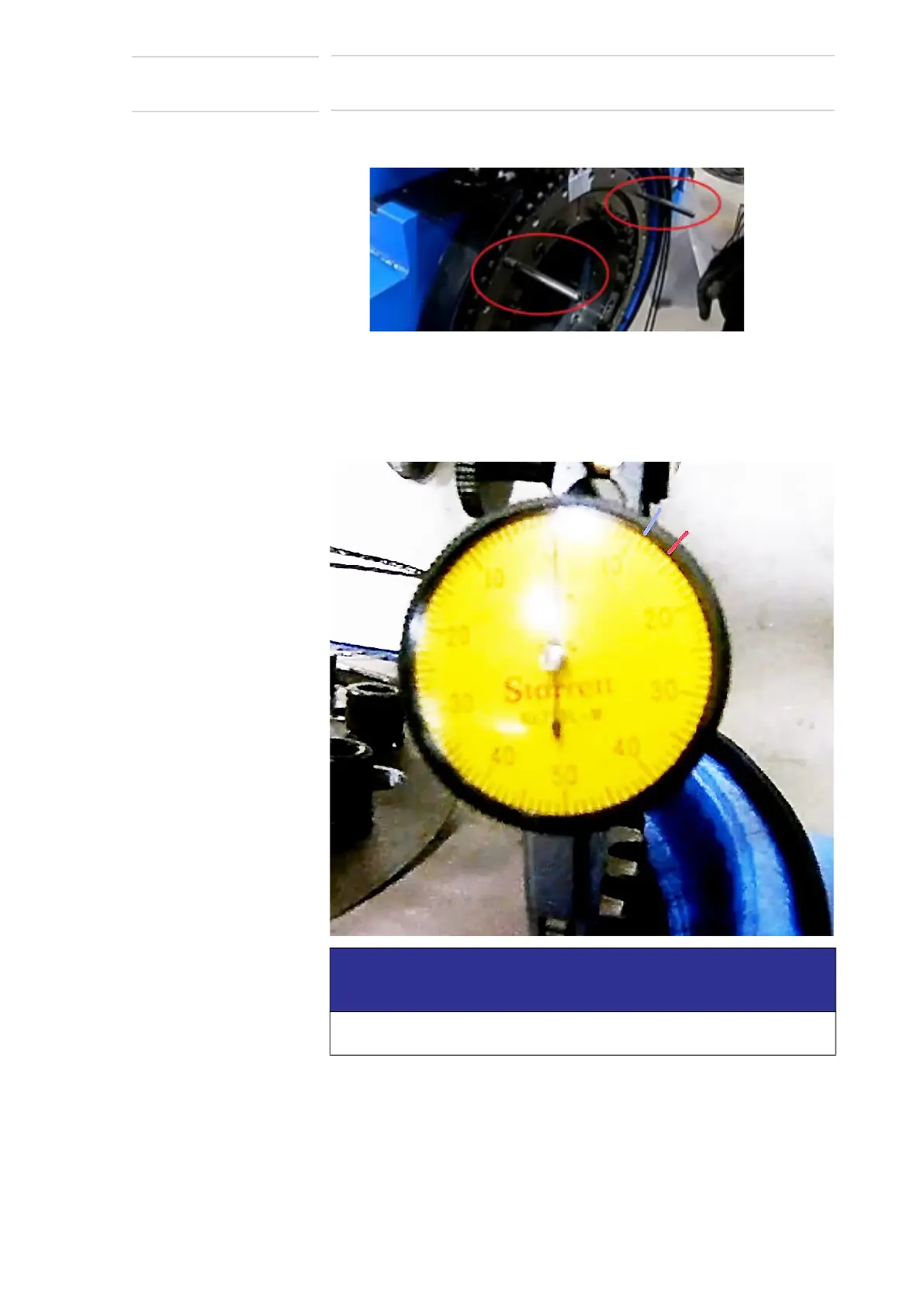

Fig. 6-15: Installing Guide Pins

4. Wipe grease off the gear teeth.

5. Attach the test indicator ensuring the tip of the test indicator is parallel

to the ring gear.

Fig. 6-16: Placing Test Indicator Parallel to the Ring Gear

NOTICE

Refer to the Test Indicator instructions concerning use and measuring

tips.
