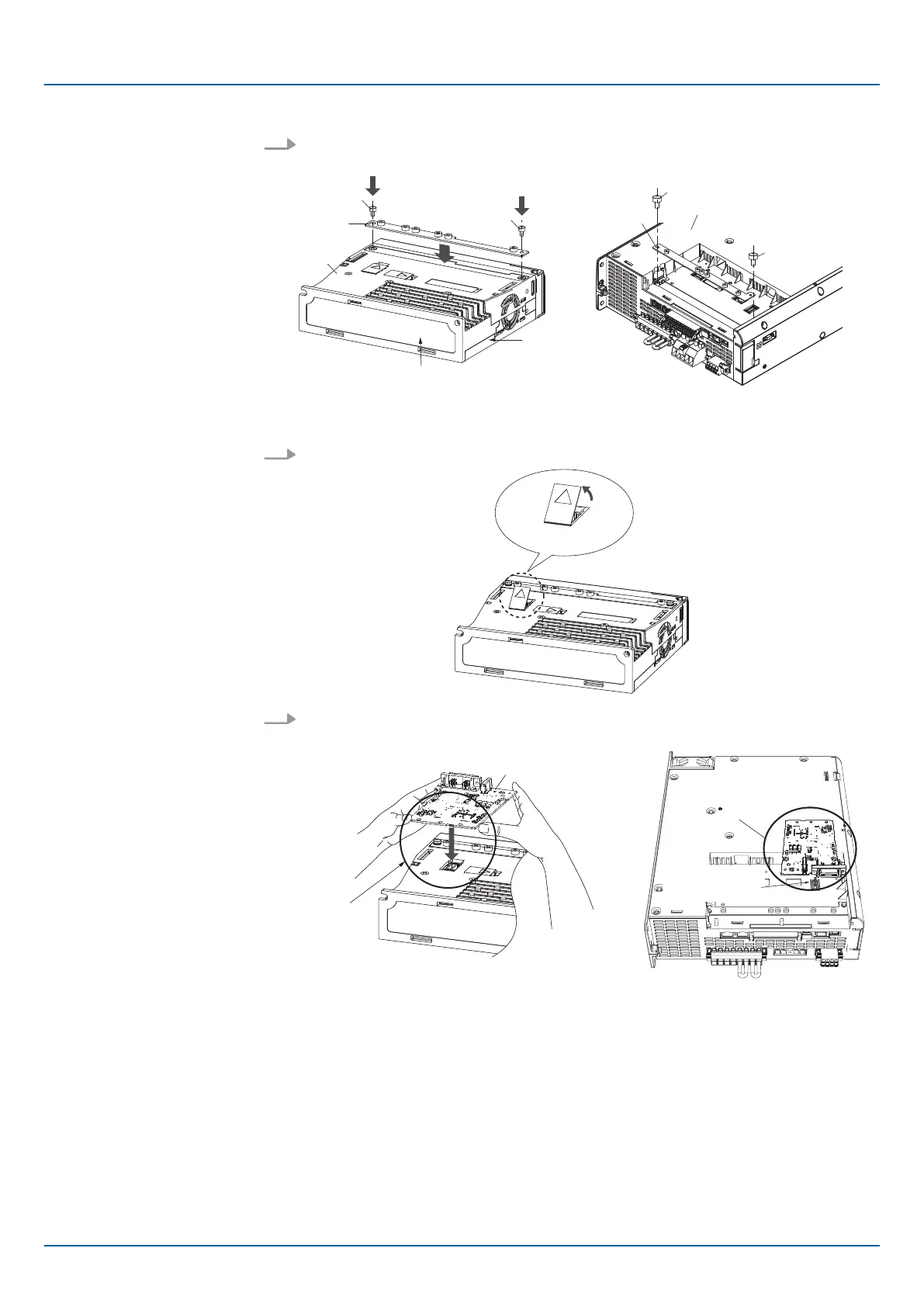

1. Fit the mounting rail (G) into the recess on the SERVOPACK (I), and fix the rail with
the mounting screws (H). (Tightening torque: 0.14 Nm).
G
-
Mounting plate
H
-
Mounting screws
I -SERVOPACK
Back
Top
H
H
G
I
H
H
G
I
G-Mounting rail
H-Mounting screws
I-Sigma-7 400 V SERVOPACK
2. Remove the connector cover from the SERVOPACK.
Connector cover
3. Hold both ends of the board (A) as shown in the illustration, and firmly insert the
board connector into the connector port on the SERVOPACK.
A
-
Board
Insert the board
connector firmly into
the connector port.
A
A
Insert the board
connector firmly into
the connector port.
Sigma-5 and Sigma-7 Series SERVOPACKs
Hardware Installation
Mounting the Feedback Option Module
