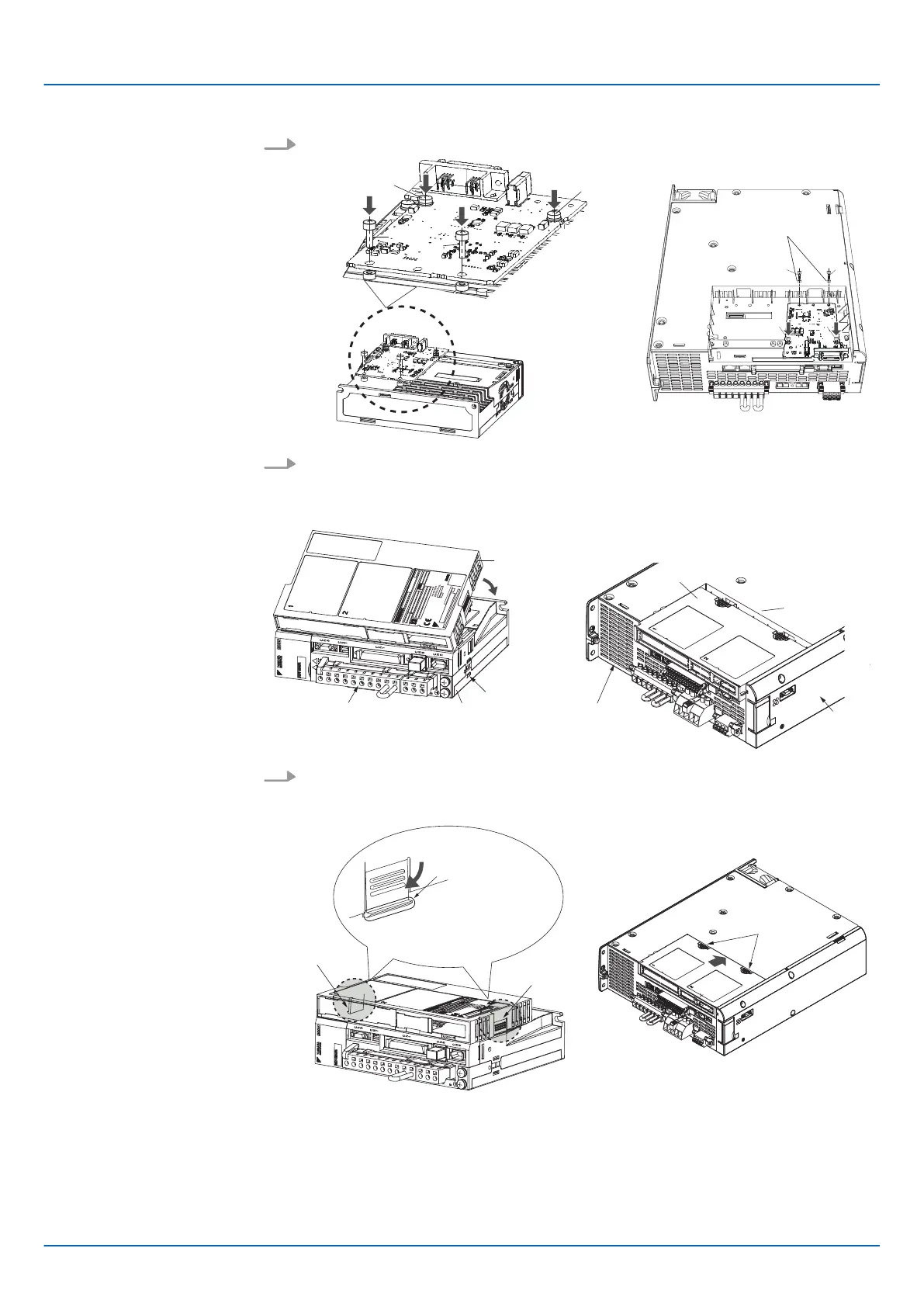

4. Fix the board on the SERVOPACK with four screws. (Tightening torque: 0.14 Nm)
B
-Mounting
screws
with
spacers (2)
C
-Mounting
screws (2)
B
C
B
C
Fit the spacers
(included in the
delivery) under
the board.
B B
CC
Fit the spacers
(included in the
delivery) under the
board.
5. Align the front end of the module cover (L) with the front panel of the SERVOPACK
as shown in the illustration, and place the module cover so that you can view the
installed board from the opening (where the front cover is removed) on the module
cover.
Bottom
Front panel
L
-
Module cover
I
-
SERVOPACK
YASKAWA EUROPE GMBH
MADE IN UK
OFB01A
I
L
Top
Front
I
L
6. Fix the module cover to the SERVOPACK by pushing in the retention clips on the
left and right side of the module cover, while directing their angled end protrusions
to enter the SERVOPACK.
Retention clip angled
end protrusion
Push the clips in the
direction indicated
by the arrow so the
clip will go into the
SERVOPACK.
Retention clip
Retention clip
OFB01A
Hooks
Sigma-5 and Sigma-7 Series SERVOPACKs
Hardware Installation
Mounting the Feedback Option Module
| | Feedback Option Module Type 3 - Manual version C - Revision 0 | en | 39
