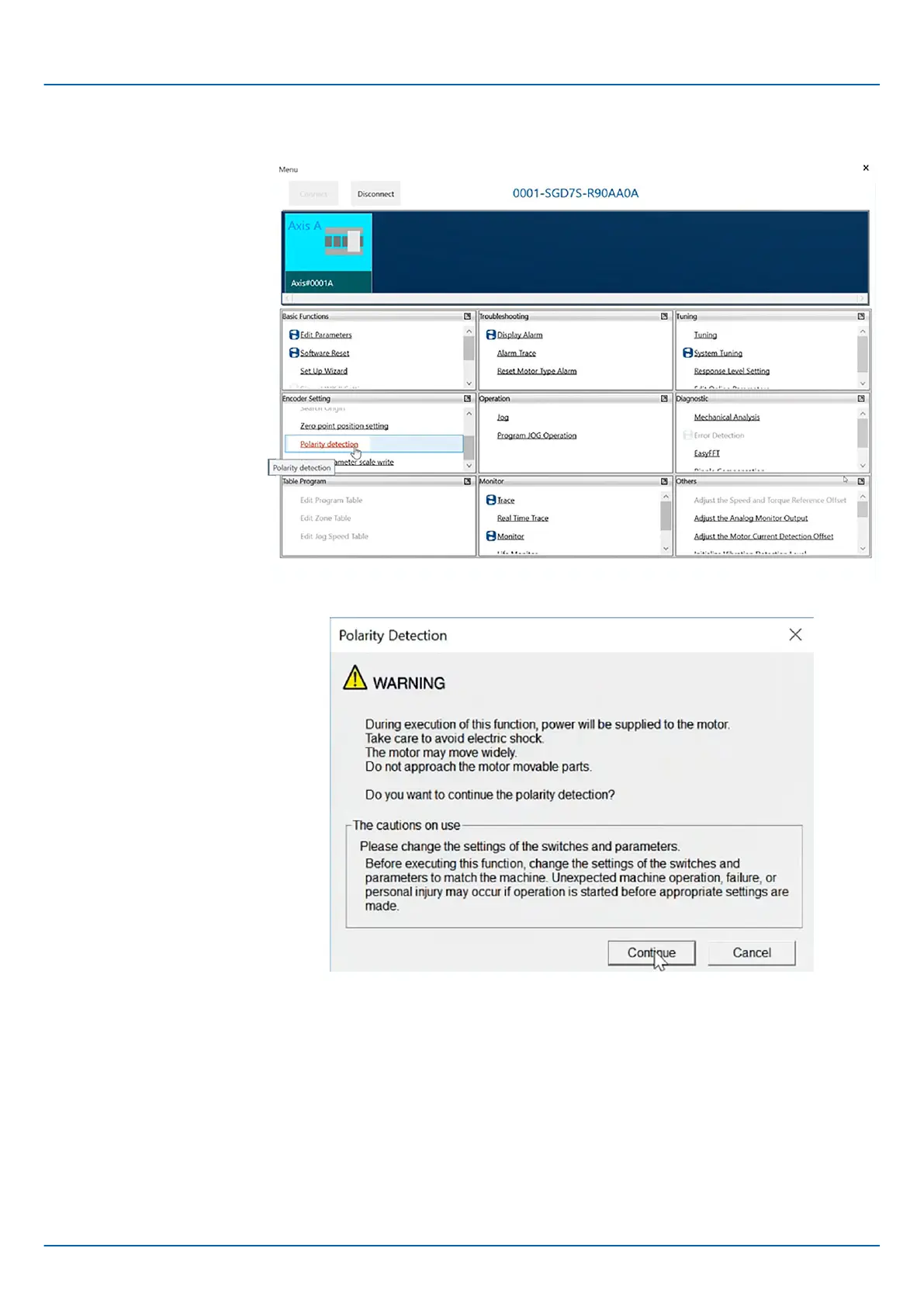

Click on Encoder Setting -> Polarity detection:

Then click on Continue:

Then click on Start:

Polarity Detection with

SigmaWin+

Sigma-5 and Sigma-7 Series SERVOPACKs

SERVOPACK Set-up

Polarity Detection Functionality
