1.1 Checking Products
The following procedure is used to check the AC servodrives of Σ-III Series products on delivery.
1.1.1 Check Items
Check the following items when Σ-III Series products are delivered.
If any of the above items are faulty or incorrect, contact your Yaskawa representative or the dealer from whom
you purchased the products.

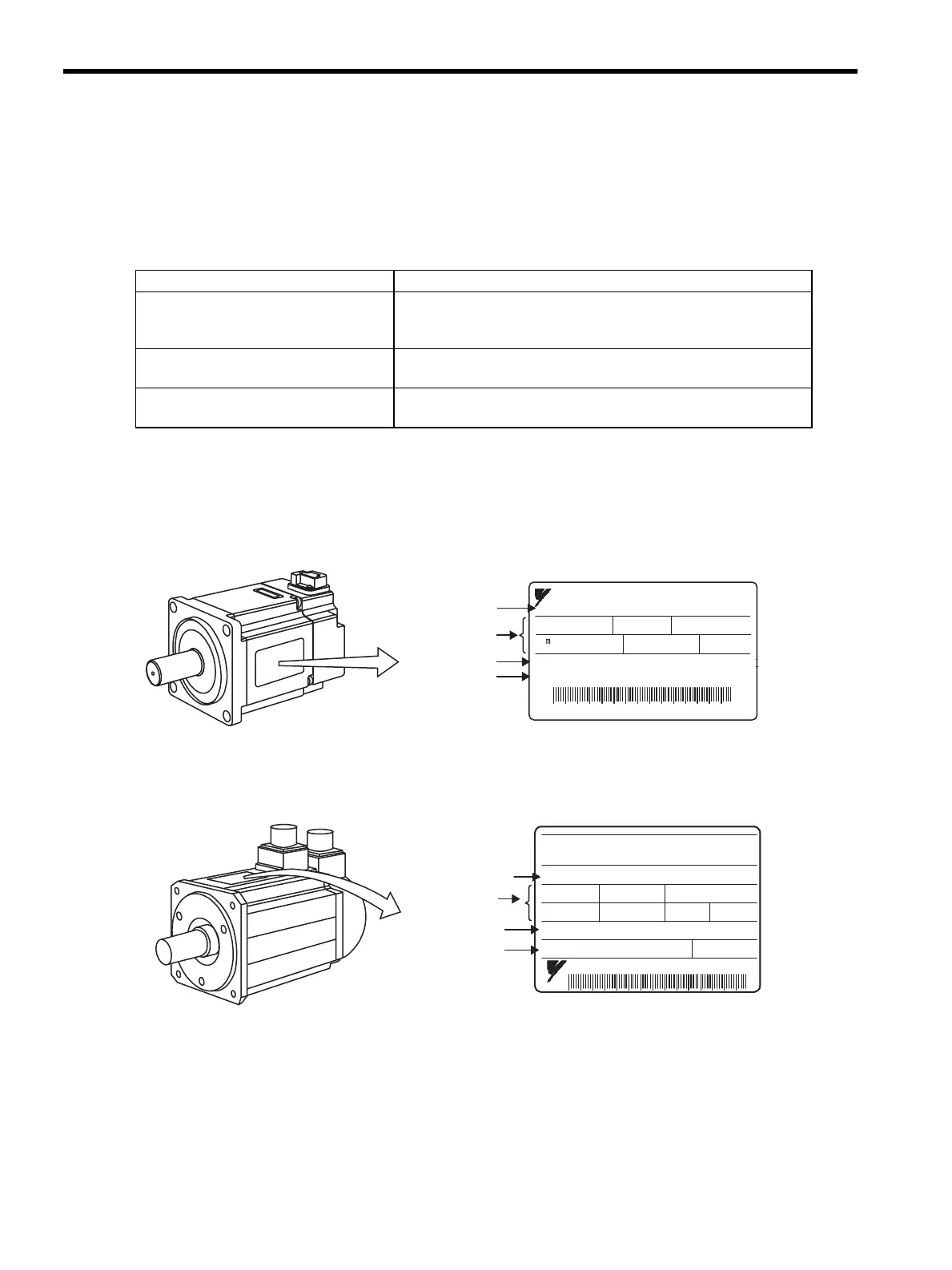

1.1.2 Servomotors
(1) Types SGMAS and SGMPS
(2) Type SGMSS
Check Items Comments
Are the delivered products the ones
that were ordered?
Check the model numbers marked on the nameplates on the servomo-
tor and SERVOPACK. (Refer to the descriptions of model numbers in
the following section.)
Does the servomotor shaft rotate
smoothly?
The servomotor shaft is normal if it can be turned smoothly by hand.
servomotors with brakes, however, cannot be turned manually.
Is there any damage? Check the overall appearance, and check for damage or scratches that
may have occurred during shipping.
AC SERVO MOTOR
SGMAS-04ACA21
400
200
2.6
W
V
A
N

3000
B
1.27
min
Ins.
O/N9271316-1
S/NDD9964567890012
YASKAWA ELECTRIC CORPORATION JAPAN
Serial number
Nameplate
-1
Order number
Servomotor model
Ratings
AC SERVO MOTOR
TYPE
1000 W
5.7 A
3.18 N
200 V
3000 min
CONT ins F
O/N 9W0774 002A - 039
S/N BB2 753000039 0002
YASKAWA ELECTRIC MADE IN JAPAN
DATE
N
V
SGMSS-10ACA21
N
 m
Nameplate
-1
Serial number
Order number
Servomotor model
Ratings
