4.4.11 Surge Protector
(1) Model: RxCxM-601BQZ-4 and RxCxM-601BUZ-4
Manufactured by Okaya Electric Industries Co., Ltd.
The surge protector absorbs surge voltage generated when the magnetic coil is OFF. This prevents faulty opera-
tion in or damage to electronic circuits near the magnetic contactors or switches.
Recommended surge protectors for HI-J series magnetic contactors are listed below.

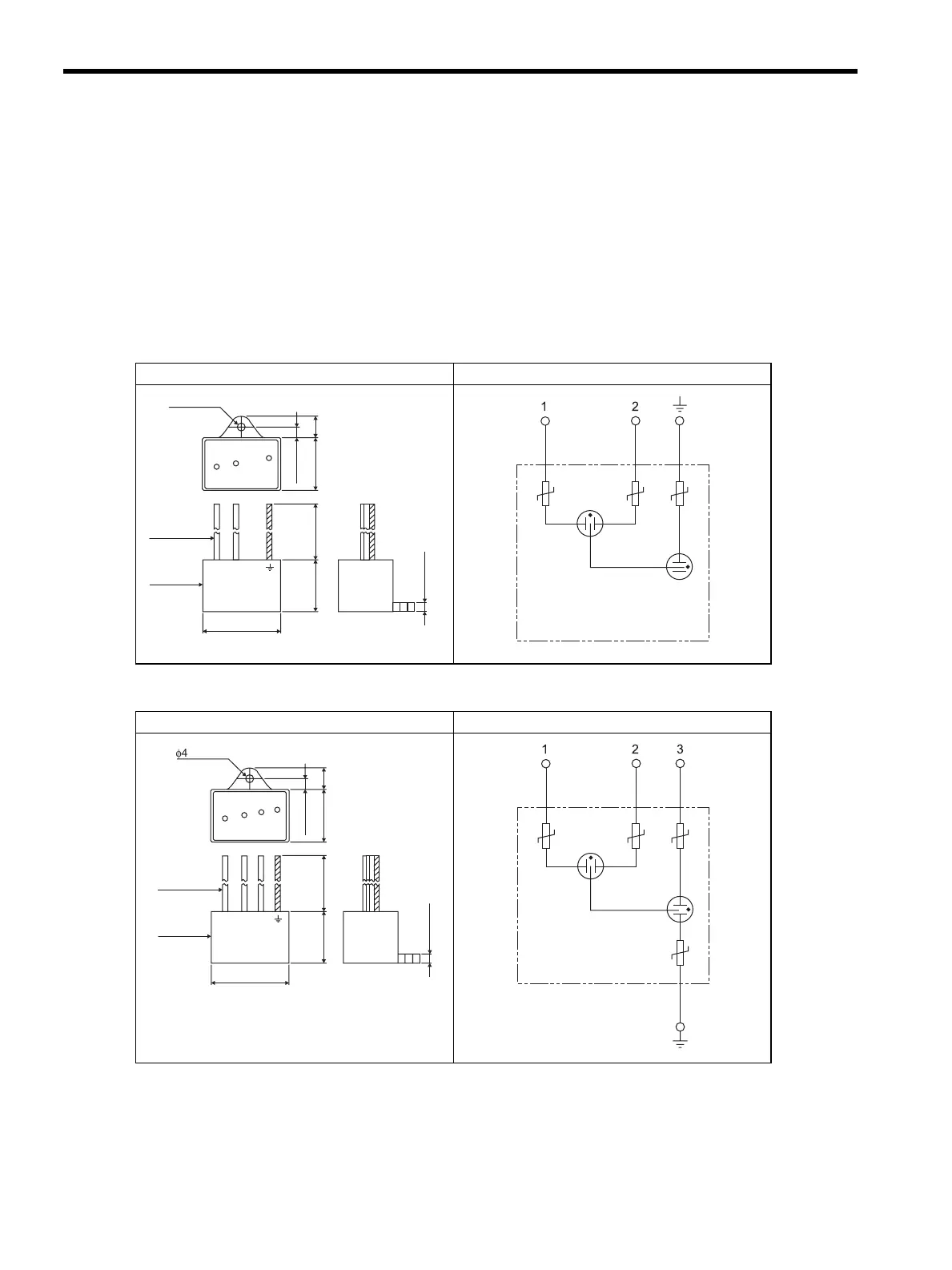

(2) Dimensional Drawings
(a) RxCxM-601BQZ-4
(b) R
xCxM-601BUZ-4
Dimensional Drawings Internal Connection Diagram
Dimensional Drawings Internal Connection Diagram
φ4.2±0.5
Case
Connection
cables
Units: mm (in)
5.5
±
1.0 (0.22
±
0.04)
11
±
1
(0.43
±
0.04)
28.5
±
1.0
(1.12
±
0.04)
200-0
+30
(7.87 )
+1.18
-0
12
4.5
±
0.5 (6.18
±
0.02)
41 ± 1 (1.61 ± 0.04)
28
±
1
(1.10
±
0.04)

φ4.2±0.5
Case
Connection
cables
200-0
+30
123
Units: mm (in)
5.5
±
1.0 (0.22
±
0.04)
4.5
±
0.5 (6.18
±
0.02)
41 ± 1 (1.61 ± 0.04)
11
±
1
(0.43
±
0.04)
28.5
±
1.0
(1.12
±
0.04)
28
±
1
(1.10
±
0.04)
(7.87 )
+1.18
-0
 !
