1.2 Product Part Names
1-5
1
(4) Type SGMCS Direct-drive (Medium-capacity Series)

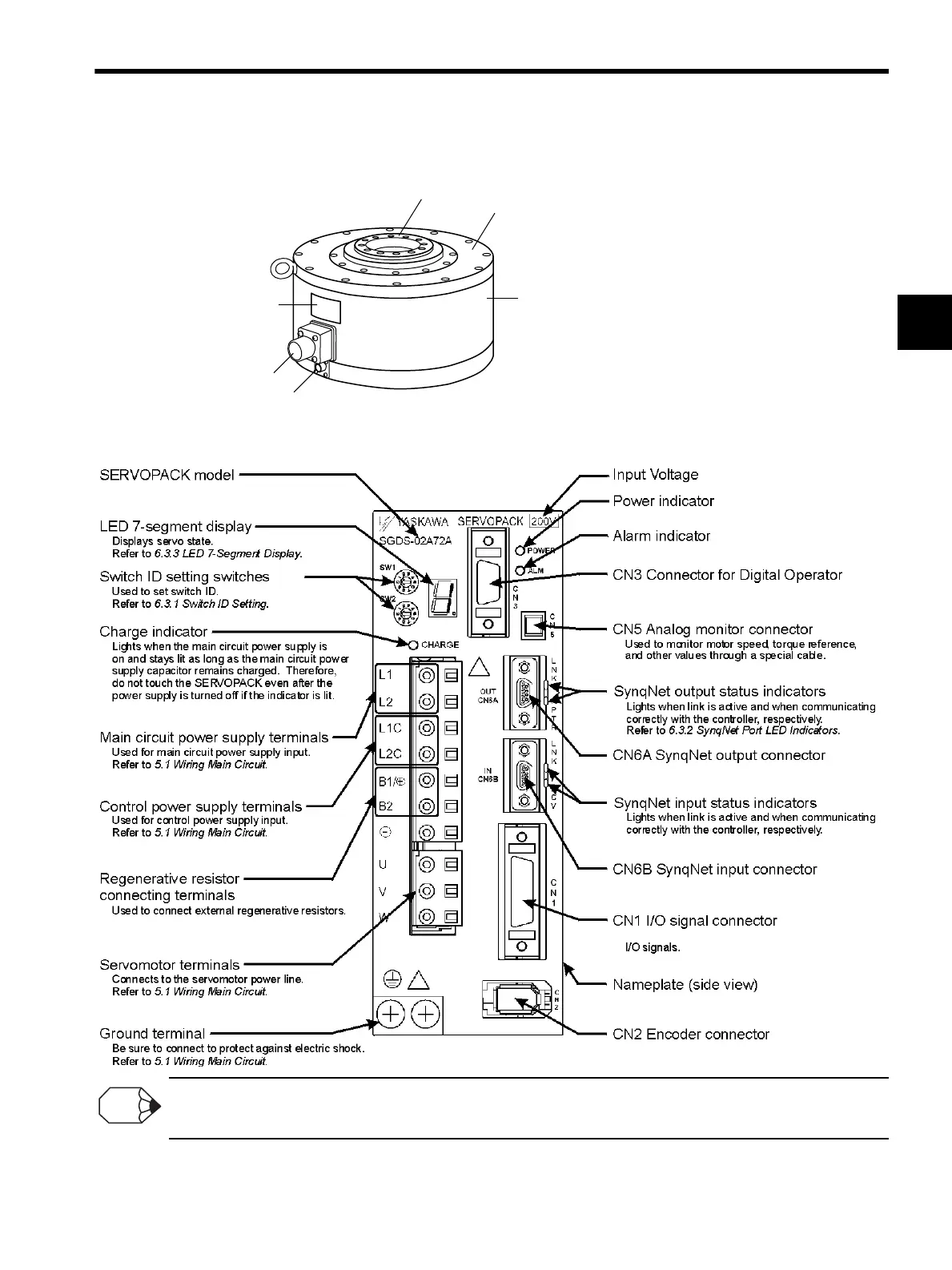

1.2.2 SERVOPACKs
Connecting terminal
For connecting a reactor, refer to 5.4.5 AC/DC Reactor for Harmonic Suppression.
Rotary axis
Mounting flange
Frame
Servomotor connector
Encoder connector
Nameplate
Lights when the control power supply is on.
Used for I/O with a digital operator.
Refer to 4.4.2 Digital Operator.
Refer to 4.4.3 Cables for Analog Monitor.
Refer to 6.3.2 SynqNet Port LED Indicators.
Used to communicate with SynqNet controller.
Refer to 5.3.4 SynqNet Connectors (CN6A and
CN6B).
Used for reference input signals and sequence
Lights when an alarm exists.
Used to communicate with SynqNet controller.
Refer to 5.3.4 SynqNet Connectors (CN6A and
CN6B).
Refer to 5.3 Examples of I/O Signal Connections.
Indicates the SERVOPACK model and ratings.
Refer to 1.1.3 SERVOPACKs.
Connects to the encoder of the SERVOPACK.
Refer to 5.2 Wiring Encoders.
Refer to 5.5 Connecting Regenerative Resistors.
Refer to 2.2 SERVOPACK Model Designations.
