3.5.1 Overload Characteristics
3-12
3.5 SERVOPACK Overload Characteristics and Load Moment of
Inertia
3.5.1 Overload Characteristics
The overload detection level is set under hot start conditions at a servomotor ambient temperature of 40°C
(104°F).

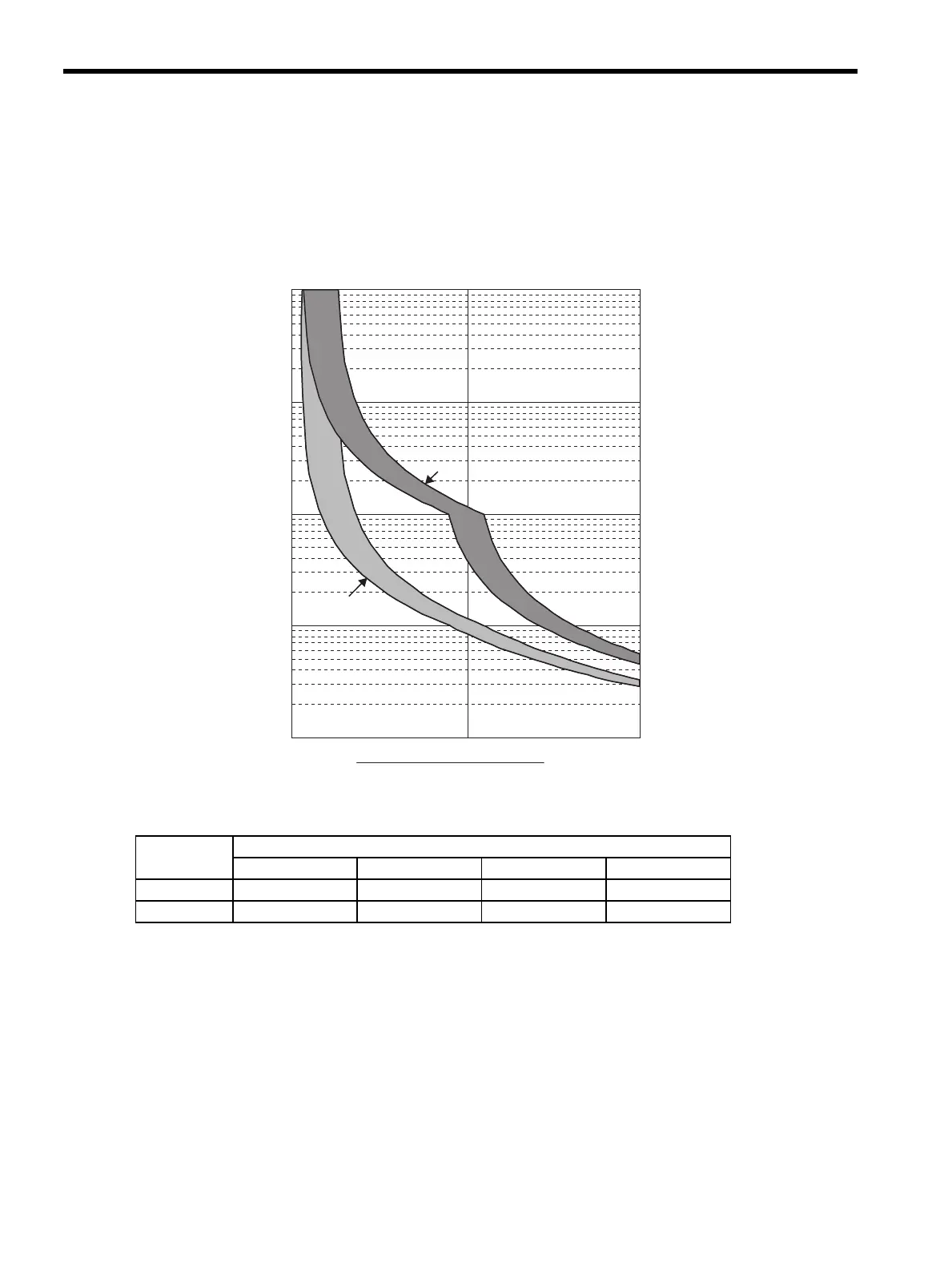

Note: The overload protection characteristics of A and B in the figure are applicable when the
SERVOPACK is combined with one of the following servomotors.
Graph Servomotor Model
SGMAS SGMPS SGMSS SGMCS
A
-A5 to 04 -01 to -04 − -02 to -35
B
-06 to -12 -08 to -15 -10 to -30 -45 to 2Z
Operating time (s)
Rated torque Maximum torque
Approx.
Rated torque
+ Maximum torque
2
10000.0
1000.0
100.0
10.0
1.0
A
B
