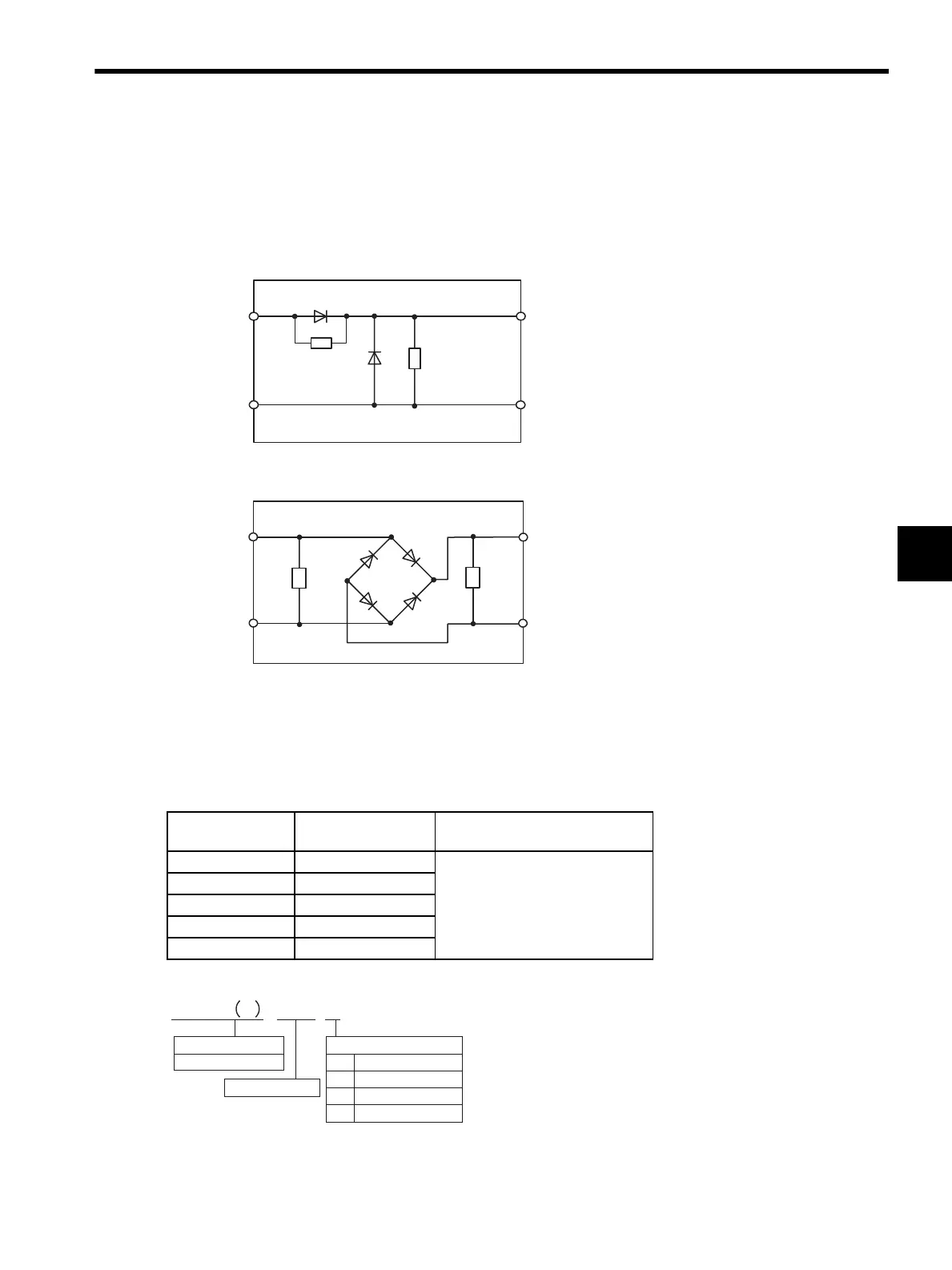

(4) Internal Circuits
Open or close the circuit for the brake’s power supply so that is switched on the AC side.
When switching on the DC side, install a surge protector near the brake coil to prevent damage to the brake coil
from voltage surges due to DC-side switching.
(a) Internal Circuit for 200 VAC
Brake Power Supply Model: LPSE-2H01
(b) Internal Circuit for 100 VAC
Brake Power Supply Model: LPDE-1H01
4.4.6 External Regenerative Resistor
When the regenerative energy exceeds the capacity of the SERVOPACK, install an external regenerative resistor.
The regenerative resistor must be purchased separately by customers. Refer to the table below for selecting the
regenerative resistor. Refer to 5.5 Connecting Regenerative Resistors for the connection.
(1) References for External Regenerative Resistor
(2) Model Designation
White
AC side
180 to 230 V
DC (Brake) side
No polarity
Red
Black
Yellow
Surge
protector
Surge
protector
Diode
90 to 120 V
DC (Brake) side
No polarity
Diode bridge
AC side
Red
Black
Blue
White
Surge
protector
Surge
protector
Regenerative
Resistor Model
Specifications Manufacturer
RH120 70 W, 1 to 100 Ω Iwaki Wireless Research Institute
RH150 90 W, 1 to 100 Ω
RH220 120 W, 1 to 100 Ω
RH300C 200 W, 1 to 10 kΩ
RH500 300 W, 1 to 30 Ω
RH120 N 10Ω J
Model
N: Noninductive winding
Tolerance
Resistance
Code
K
J
H
±10%
±5%
±3%
Tolerance
