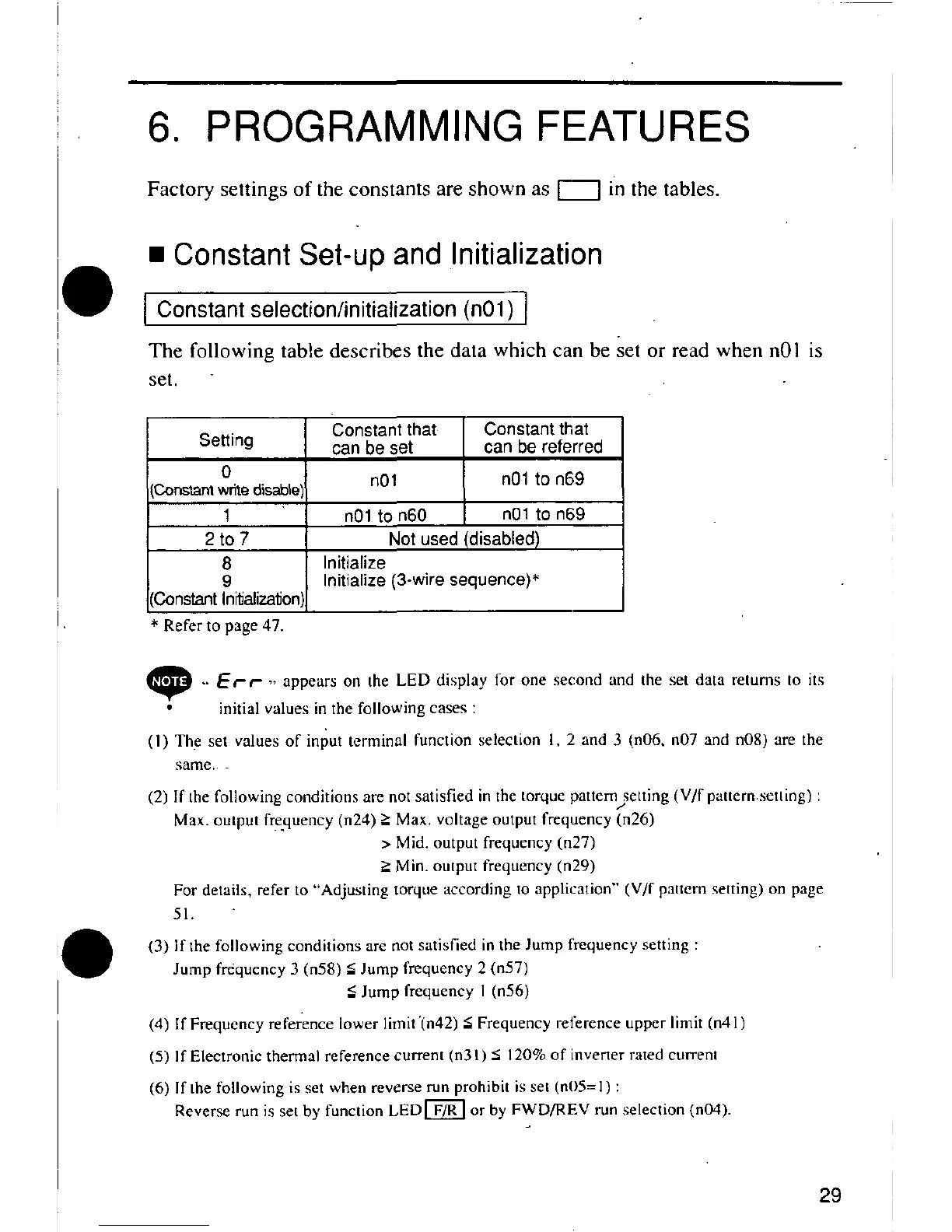

6. PROGRAMMING FEATURES
Factory settings of the constants are shown as [-""] in the tables.
• Constant Set-up and Initialization
[ Constant selection/initialization (nO1) I
The following table describes the data which can be set or read when nO1 is
set.
Constant that Constant that
Setting can be set can be referred
0 n01 n01ton69
Constantwritedisable
I nO1to n60 nO1to n69
2 to 7 Not used (disabled)
8 Initialize
9 Initialize (3owire sequence)*
Constant Initialization
* Refer to page 47.
O- E¢'¢" ,, on the LED display for one second and the set data returns Io its
appears
initial values in the following cases :
(I) The set values of input terminal function selection 1,2 and 3 (nO6, n07 and nO8)are the
same.
(2) If thefollowing conditions are not satisfied in the torquepattern_setting(V/f pattern setting) :
Max. output frequency (n24) > Max. voltage output frequency (n26)
> Mid. output frequency (n27)
> Min. output frequency (n29)
For details, refer to "Adjustingtorque according Ioapplication" (V/f pattern setting) on page
51.
(3) If the following condilions are not satisfied in the Jump frequency setting :
Jump frequency 3 (n58) < Jump frequency 2 (n57)
< Jump frequency I (n56)
(4) If Frequency reference lower limit'(n42) < Frequency reference upper limit (n41)
a
(5) If Electronic thermal referencecurrent (n3 I) < 120_/oof inverter ratedcurrenl
(6) If the following is set when reverse run prohibit is set (n05=l) :
Reverserun isset byfunction LED["_"] or by FWD/REV run selection (nO4).
29
