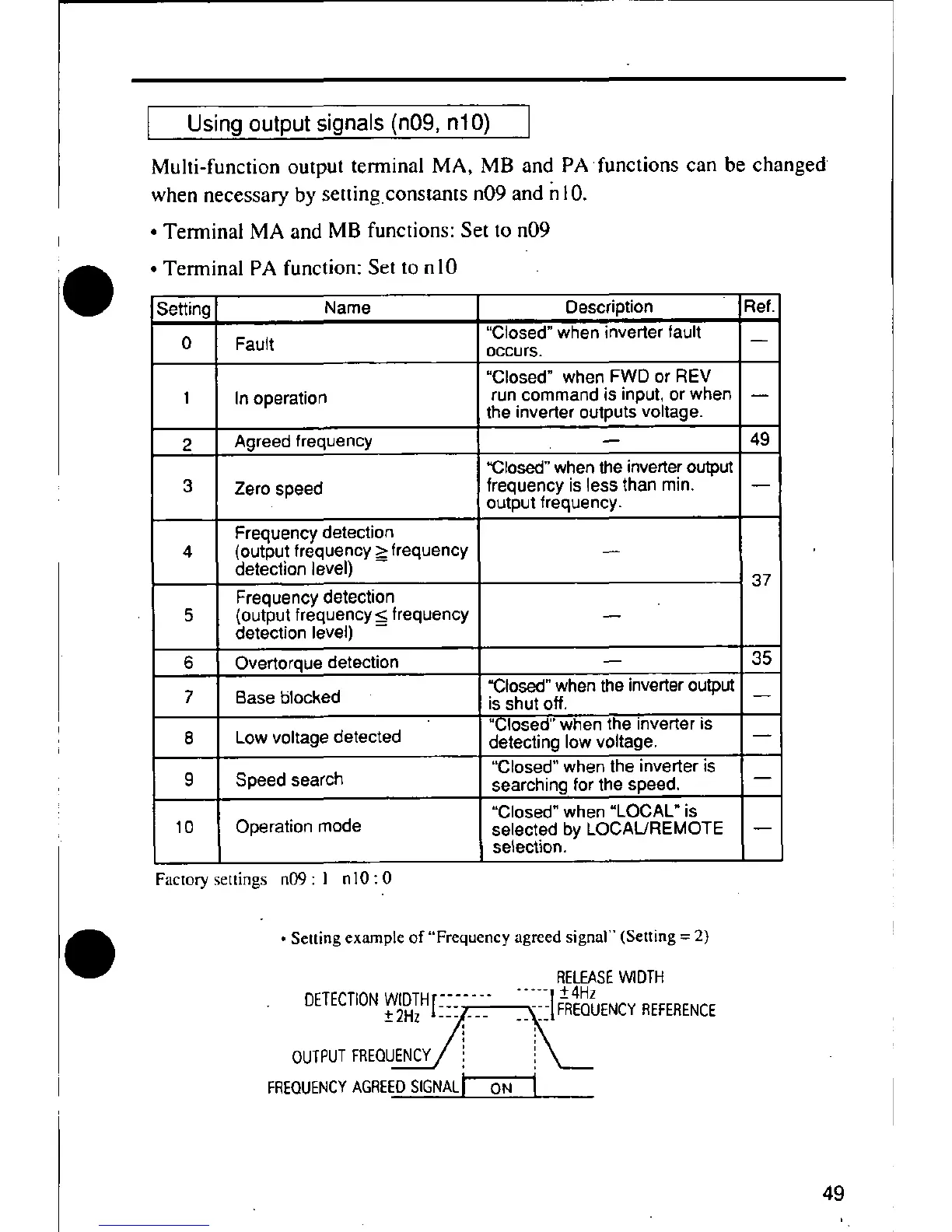

I Using output signals (nO9, O) ]
nl
Multi-function output terminal MA, MB and PA functions can be changed
when necessary by setting.constants nO9 and n l0.
• Terminal MA and MB functions: Set to n09
• Terminal PA function: Set to nl0
Setting Name Description Iaef.
"Closed" when inverter fault
0 Fault occurs. --
"Closed" when FWD or REV
1 In operation run command is input, or when --
the inverter outputs voltage.
2 Agreedfrequency -- 49
"Closed"when theinverter output
3 Zero speed frequency is less than min. --
output frequency.
Frequency detection
4 output frequency _>frequency
detection leve) -
37
Frequency detection
5 (output frequency<_frequency
detection level) -
6 Overtorquedetection -- 35
"Closed"whenthe inverteroutput
7 Base blocked is shut off. --
"Closed" when the inverter is
8 Lowvoltage detected detectinglow voltage. --
"Closed" when the inverter is
9 Speed search searching for the speed. --
"Closed" when "LOCAL" is
10 Operation mode selected by LOCAL/REMOTE --
selection.
Factory settings n09: I nl0:0
• Setting example of"Frequency agreed signal" (Setting = 2)
RELEASEWIDTH
DETECTIONWIDTHr ....... "--, +4HzENCYREFERENCE
49
