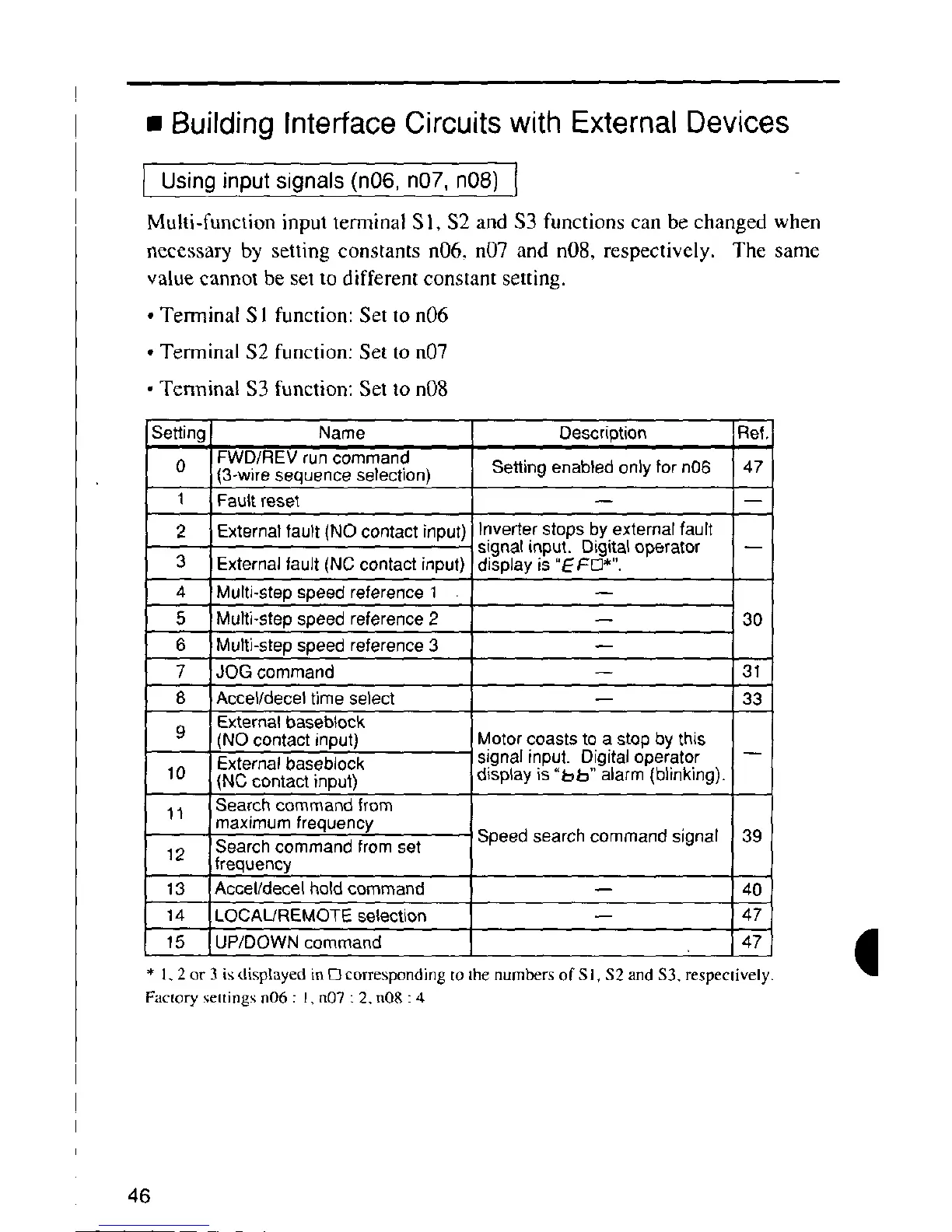

• Building Interface Circuitswith External Devices
I Using input signals (n06, n07, n08) I
Multi-function input terminal S l, $2 and $3 functions can be changed when
necessary by setting constants n06, n07 and n08, respectively. The same
value cannot be set to different constant setting.
• Terminal S I function: Set to n06
• Terminal $2 function: Set to n07
• Terminal $3 function: Set to n08
Setting Name Description Ref,
IFWD/REV run command
0 1(3-wiresequence selection) Setting enabledonly for n06 47
1 Faultreset -- --
2 Externalfault (NO contact input) Inverterstops by external fault
signal input. Digita_ operator --
3 IExternal fault (NC contact input) display is"EF[3*".
4 _Multi-step speed reference 1
5 _Multi-stepspeed reference 2 -- 30
6 ,Multi-step speed reference 3
7 JOGcommand -- 31
8 ,Accel/deceltime select -- 33
External baseblock
9 (NO contact input) Motor coasts to a stop by this
Externalbaseblock signal input. Digital operator --
10 (NC contact input) display is "b_" alarm (blinking).
11 Search command from
maximum frequency
Searchcommand from set Speed search command signal 39
12 frequency
13 Accel/decelhaiti command -- 40
14 LOCAL/REMOTEselection -- 47
15 UP/DOWNcommand 47 •
1
* I, 2 or 3 is displayed in[3 corresponding to lhe numbers ofSI, $2 and $3, respectively.
Factorysettings nO6: I_n07 : 2, nO8:4
46
