I Holding accel/decel temporarily }
To hold acceleration or deceleration, input accel/decel hold command. The
output frequency is maintained when 1he accel/decel hold command is input
during acceleration or deceleration.
The stop command releases the accel/decel hold and the operation ramps to
stop.
Set input terminal function selection (n06, 07 or 08) to 13 (accel/decel hold
command).

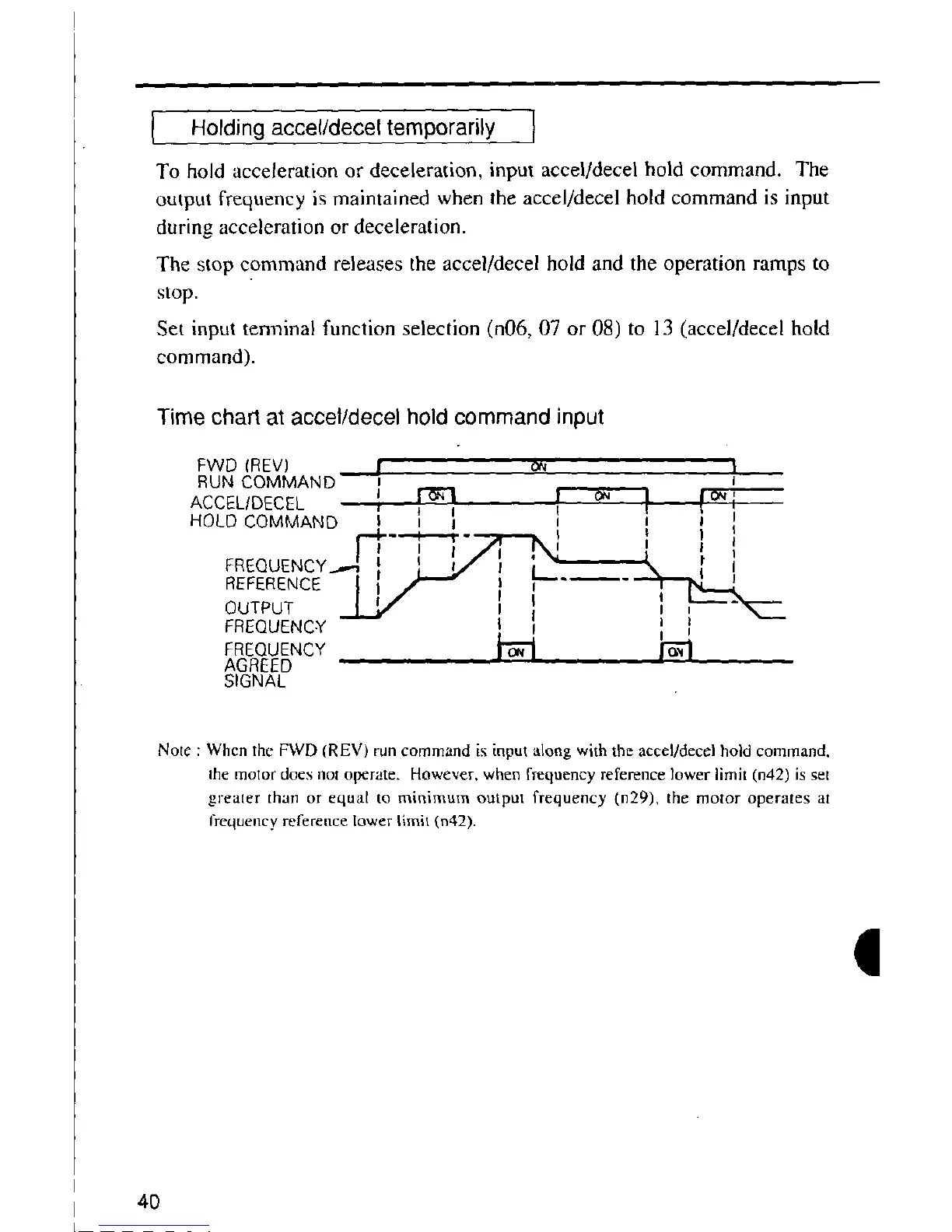

Time chart at accet/decel hold command input
FWD(REV) • o_
RUNCOMMANDi
' r'_
ACCEL/DECEL i ' _
HOLD COMMAND I j I
I I I I /_ !\!
FREQUENCY.....4} I _ i I" I_, [ I
REFERENCE I I _ ! _.------- _ iO TPUT_L/ :i
FREQUENCY
FREQUENCY
AGREED
SIGNAL
Note : Whenthe FWD (REV) run command is input alongwith the accel/decel hold command,
Ihe motor does nol operate. However, when frequency reference tower limit (n42) is set
greater than or equal to minimum output frequency (n29), the motor operates al
#equency reference Io'_er limit (n42).
4O
