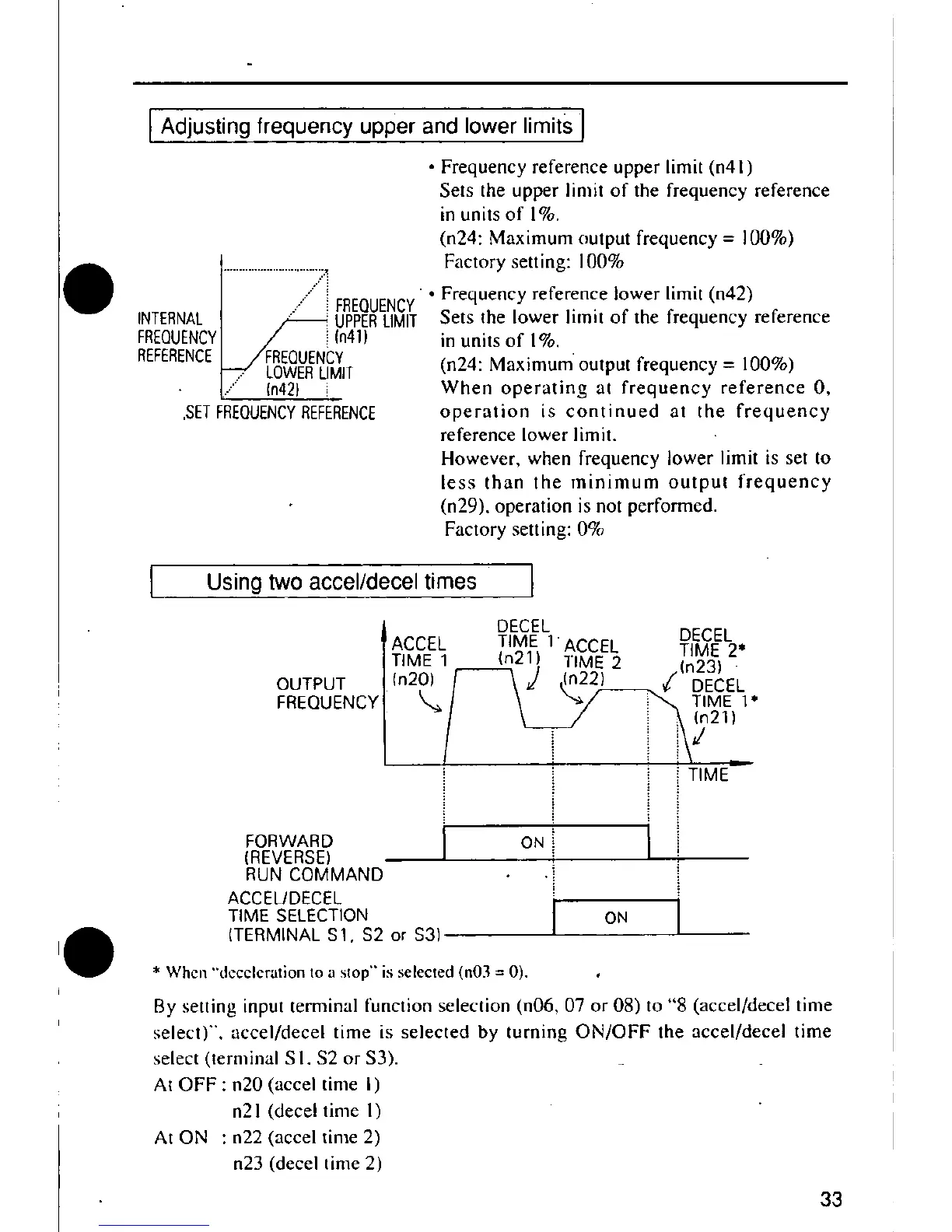

I Adjusting frequency upper and lower limits I
• Frequency reference upper limit (n41)
Sets the upper limit of the frequency reference
in units of 1%.
(n24: Maximum output frequency = 100%)
...............................:_ Factory setting: 100%
....." i FREnENCY"Frequency reference lower limit (n42)
INTERNAL _ UPPEULIMIT Sets the lower limit of the frequency reference
FREQUENCY[ J i (n4l) in units of I%.
REFERENCEW_P_CMYIT (n24: Maximum output frequency = 100%)
• J../ (n421 i When operating at frequency reference O,
,SET FREOUENCYREFERENCE operation is continued at the frequency
reference lower limit.
However, when frequency lower limit is set to
less than the minimum output frequency
(n29), operation is not performed.
Factory setting: 0%
I Using two accel/decel times J
DECEL
[ ACCEL TIME, 1" ACCE/ TDIEMCEEk2.
/TIME 1 tnzIj TIME 2 m231 -
OUTPUT |(n20) _ J ,(n22) _" DECEL
FREQUENCY| k / \ "_ TIME 1"
/ / 'V'.
FORWARD [ ONi
(REVERSE) /
RUNCOMMAND "i i
ACCEL/DECEL
TIMESELECTION I ON I
(TERMINAL $I, $2 or $3)
*When "decclcration to a stop" is selected (n03 : 0).
By setting input terminal fimction selection (n06, 07 or 08) to "8 (accel/decel time
select)", accel/decel time is selected by turning ON/OFF the accel/decel time
select (terminal SI. $2 or $3).
At OFF : n20 (accel time I)
n21 (decel time I)
At ON : n22 (accel time 2)
n23 (decel time 2)
3a
