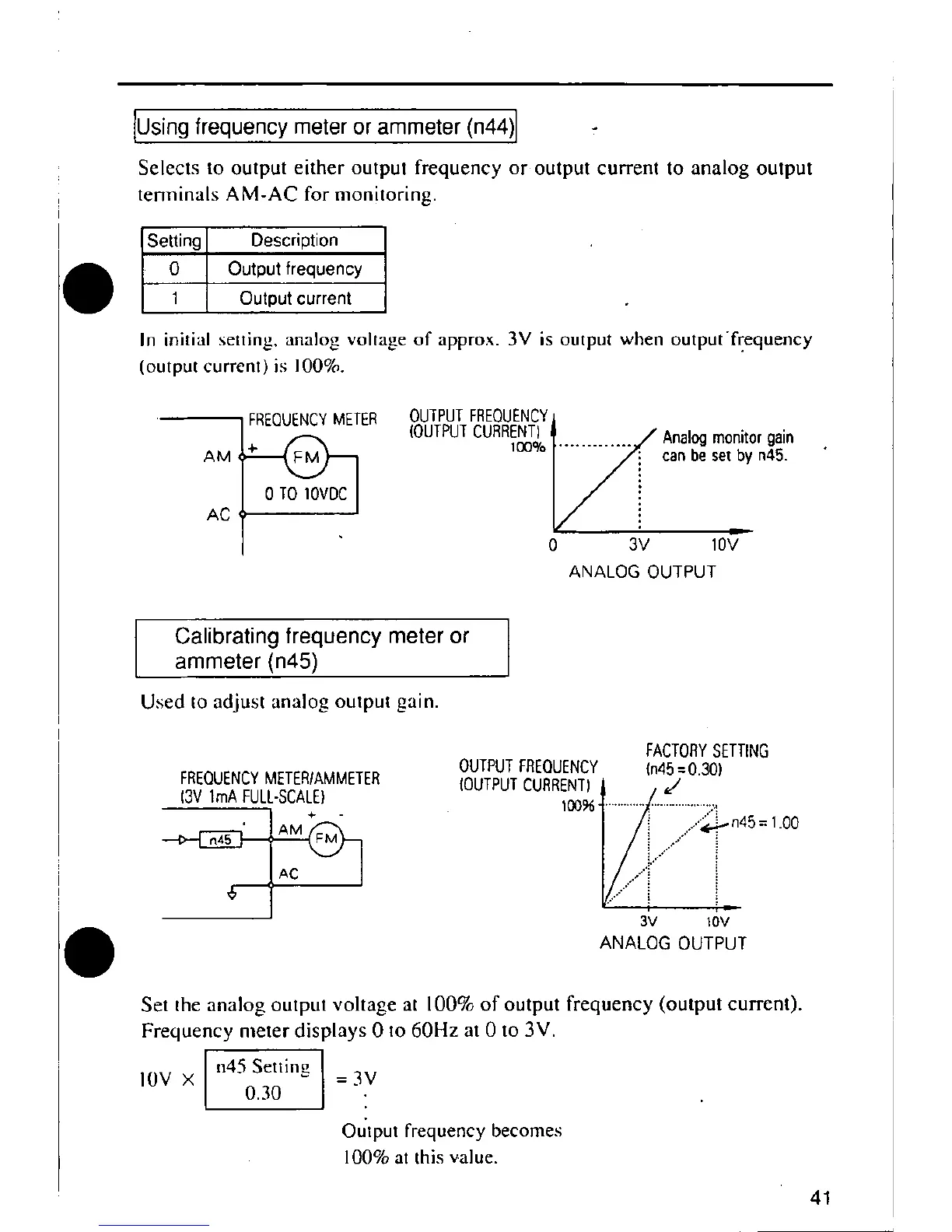

[Using frequency meter or ammeter (n44)]
Selects to output either output frequency or output current to analog output
tenninals AM-AC for monitoring.
Setting Description
O Output frequency
1 Output current
In initial setting, analog voltage of approx. 3V is output when outputfrequency
(output current) is 100%.
_FREOUENCY METER OUTPUT FREOUENCY_
(OUTPUTCURRENT)T-"/Analog monitorgain
AM lOO% canbeset byn45.
L/
AC
0 3V 10V
ANALOG OUTPUT
Calibrating frequency meter or
ammeter (n45)
Used to adjust analog output gain.
FACTORYSETTING
OUTPUT EREOUENCY {n45 = 0.30)
,OUTPUTCURRENT,,
• ÷ _ 100%'.-._il ...._ n45= 1.00
3V IOV
ANALOG OUTPUT
Set the analog output voltage at 100% of output frequency (output current).
Frequency meter displays 0 to 60Hz at 0 to 3V.
n45 Settin_
10V × 0.30 _ =3V
Output frequency becomes
100% at this value.
41
