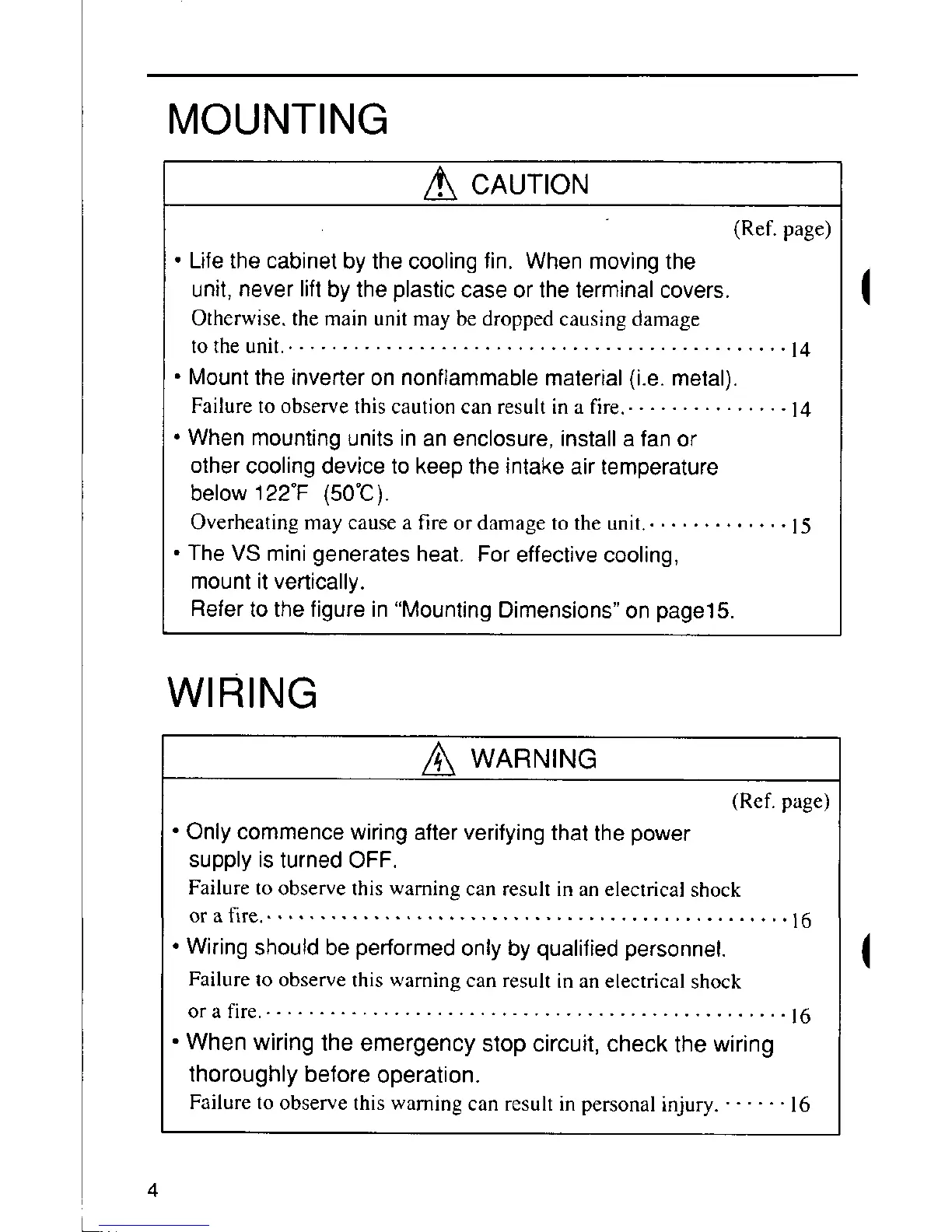

MOUNTING
/_ CAUTION
(Ref. page)
• Life the cabinet by the cooling fin. When moving the
unit, never lift by the plastic case or the terminal covers. |
Otherwise, the main unit may be dropped causing damage
to the unit.. ............................................. 14
• Mount the inverter on nonflammable material (i.e. metal).
Failure to observe this caution can result in a fire.. .............. 14
• When mounting units in an enclosure, install a fan or
other cooling device to keep the intake air temperature
below 122"F (50°C).
Overheating may cause a fire or damage to the unit.. ............ 15
• The VS mini generates heat. For effective cooling,
mount it vertically.
Refer to the figure in "Mounting Dimensions" on page15.
WIRING
Z_x WARNING
(Ref. page)
• Only commence wiring after verifying that the power
supply is turned OFF.
Failure to observe this warning can result in an electrical shock
or a fire.- ................................................ 16
• Wiring should be performed only by qualified personnel.
Failure to observe this warning can result in an electrical shock
or a fire.- ................................................ 16
• When wiring the emergency stop circuit, check the wiring
thoroughly before operation.
Failure to observe this warning can result in personal injury. • ..... 16
