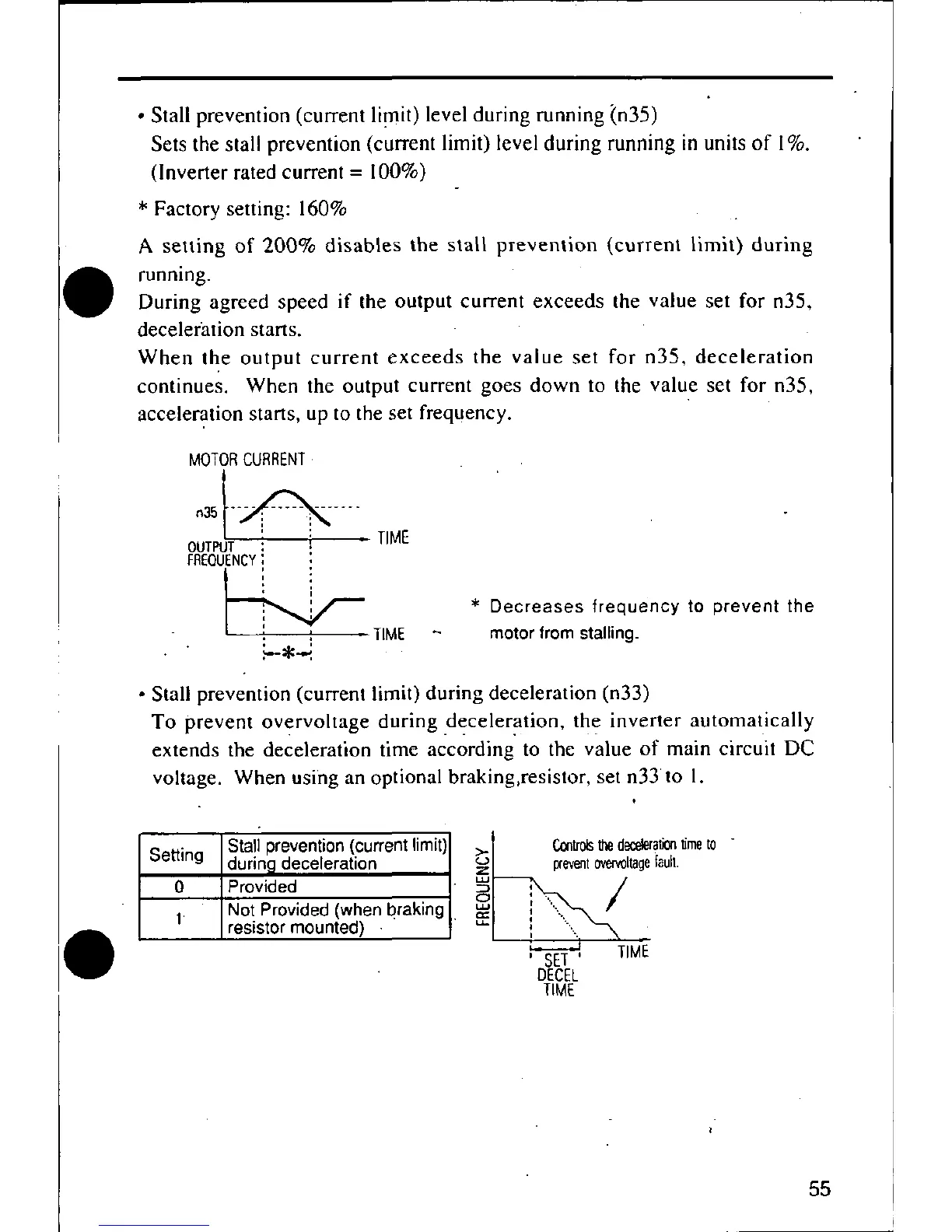

• Stall prevention (current limit) level during running (n35)
Sets the stall prevention (current limit) level during running in units of 1%.
(Inverter rated current = 100%)
• Factory setting: 160%
A setting of 200% disables the stall prevention (current limit) during
running.
During agreed speed if the output current exceeds the value set for n35,
deceleration starts.
When the output current exceeds the value set for n35, deceleration
continues. When the output current goes down to the value set for n35,
acceleration starts, up to the set frequency.
MOTOR CURRENT
OUTPUT! TIME
FREQUENCYi
• Decreases frequency to prevent the
• , TIME motor from stalling.
• Stall prevention (current limit) during deceleration (n33)
To prevent overvoltage during .deceleration, the inverter automatically
extends the deceleration time according to the value of main circuit DC
voltage• When using an optional braking,resistor, set n33to 1.
Stall prevention (currentlimit) >-1 f,_tr01sthedece_-ationtimeto "
Setting durin_l deceleration E I pcevent0_ea_ltagefaull.
O Provided " _ /
Not Provided (when braking
1 resistor mounted) _l 'El--i'S _ _''"_x
, , IMi
DECEL
TIME
55
